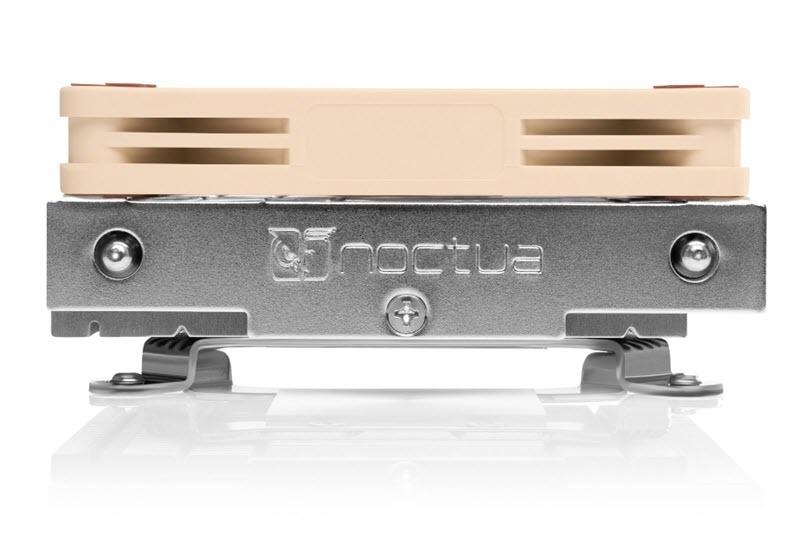

Noctua NH-L9i-17xx

The NH-L9i-17xx is the latest, LGA1700-specific revision of Noctua’s award-winning NH-L9i low-profile CPU cooler for Intel-LGA17xx based HTPCs and Small Form Factor (SFF) systems. At a height of only 37mm, the NH-L9i is ideal for extremely slim cases and, due to its small footprint, it provides 100% RAM and PCIe compatibility as well as easy access to near-socket connectors even on tightly packed mini-ITX motherboards. The custom-designed SecuFirm2™ mounting system for the LGA1700 (LGA17xx family) socket makes installation a breeze and, thanks to the highly optimised NF-A9x14 92mm fan that supports fully automatic speed control via PWM, the NH-L9i-17xx runs remarkably quietly. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9i-17xx combines everything users have come to expect from Noctua’s larger coolers into a super-compact, premium-quality package for ITX and HTPC builds with Intel LGA17xx family CPUs.

The NH-L9i is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads

Highlights

Model: Noctua NF-A9x14 HS-PWM
Bearing: SSO2
Max. rotational speed (+/- 10%): 2500 RPM
Max. rotational speed with L.N.A. (+/- 10%): 1800 RPM
Min. rotational speed @ 20% PWM (+/-20%): 600 RPM
Max. airflow: 57,5 m³/h
Max. airflow: with L.N.A. 40,8 m³/h
Max. acoustical noise: 23,6 dB(A)
Max. acoustical noise with L.N.A.: 14,8 dB(A)
Input power (max.): 2,52 W
Voltage range: 12 V
MTTF: > 150.000 h
Fan compatibility: 92x92x14mm, 92x92x25mm

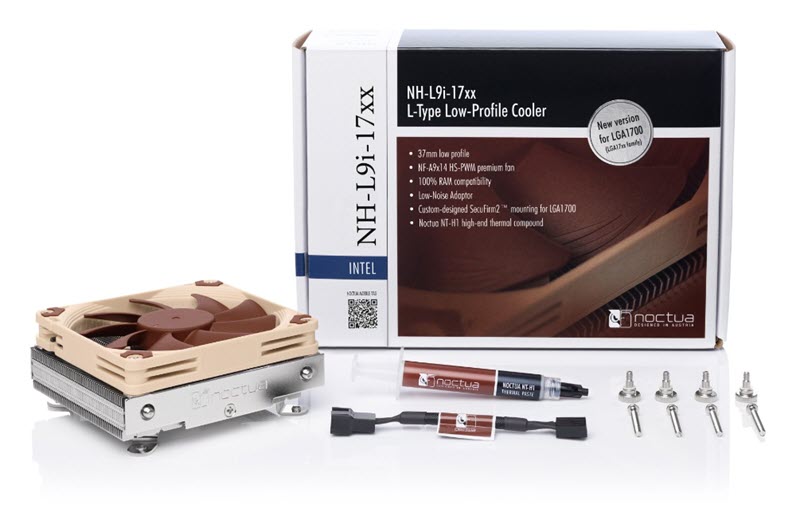

Scope of delivery: NF-A9x14 PWM premium fan, NA-RC7 Low-Noise Adapter (L.N.A), NT-H1 high-grade thermal compound, SecuFirm2™ mounting kit, Screws for 92x92x25mm fans, Noctua Metal Case-Badge
Warranty: 6 Years
