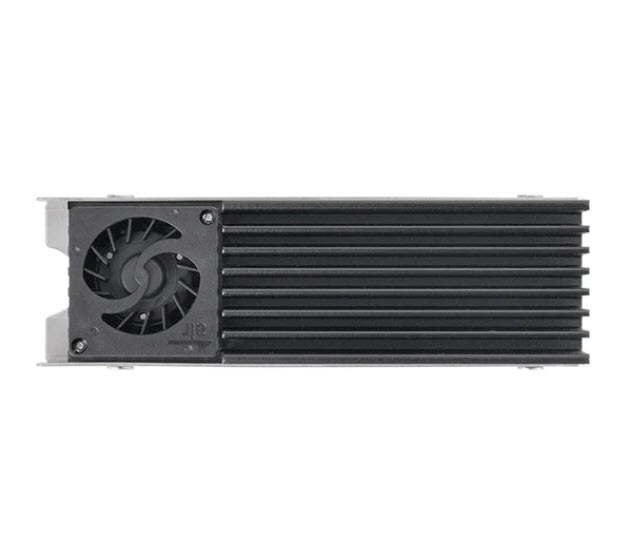

MS-1 M.2 2280 SSD Cooler
The MS-1 M.2 2280 SSD Cooler is designed to help lower the temperature of your Gen 5 SSD, preventing thermal throttling, so you can enjoy your games with read/write speeds of over 10K at all times.
At Thermaltake, we always stress-test our products under harsh conditions to ensure product quality. The MS-1 M.2 2280 SSD Cooler is held to the same standard to ensure that SSDs can deliver their actual performance.
Equipped with an 8000 RPM micro blower fan for optimal active cooling performance, directing airflow through the heatsink at 0.44 CFM and 1.6 mm-H2O static pressure, while producing a noise level of 16 dB-A.

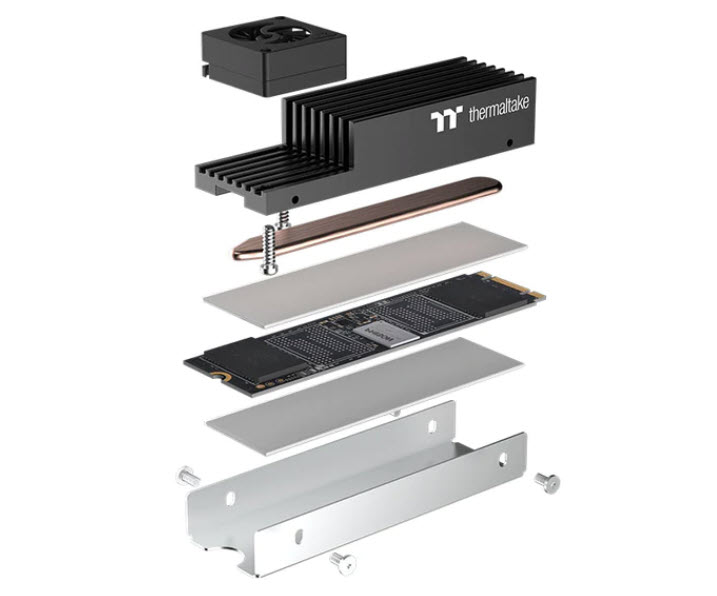

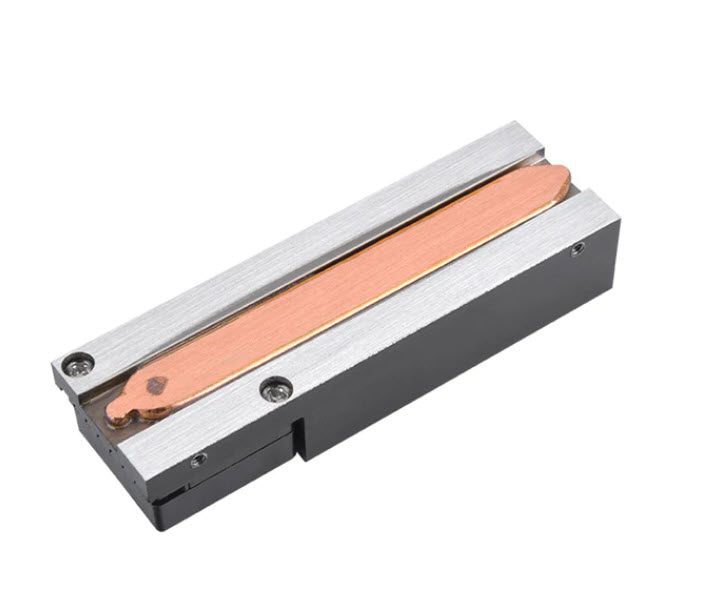

By incorporating a Ø6 mm high-performance copper heat pipe that directly attaches to the SSD, its superior thermal conductivity can ensure efficient heat transfer from the SSD.
The high-quality aluminum heatsink enables rapid and even heat distribution, while its eight-fin design allows efficient airflow for superior heat dissipation.
With its compact 74 x 23 x 17.9mm size, the MS-1 M.2 2280 SSD Cooler would not interfere with other components, allowing you to achieve the SSD cooling you need while maintaining the flexibility to install different CPU coolers and GPUs.
Highlights
- COMPATIBILITY: M.2 SSD - 2280
- DIMENSIONS: 14 x 22 x 70 mm (H x W x L)
- HEATSINK MATERIAL: Aluminum Fins, Copper Heatpipes
- HEATPIPE: F6mm x 1 pcs
- FAN DIMENSIONS: 20 x 20 x 8.6 mm (L x W x H)
- FAN SPEED: 8000 RPM
- STARTED VOLTAGE: 10 V
- RATED VOLTAGE: 12 V
- RATED CURRENT: 0.035 A
- POWER INPUT: 0.42 W
- AIR FLOW: 0.44 CFM
- STATIC PRESSURE: 1.6 mm-H2O
- NOISE: 16 dBA
- LIFE EXPECTATION: 60,000 hours
- PIN CONNECT: 2510-3Pin
