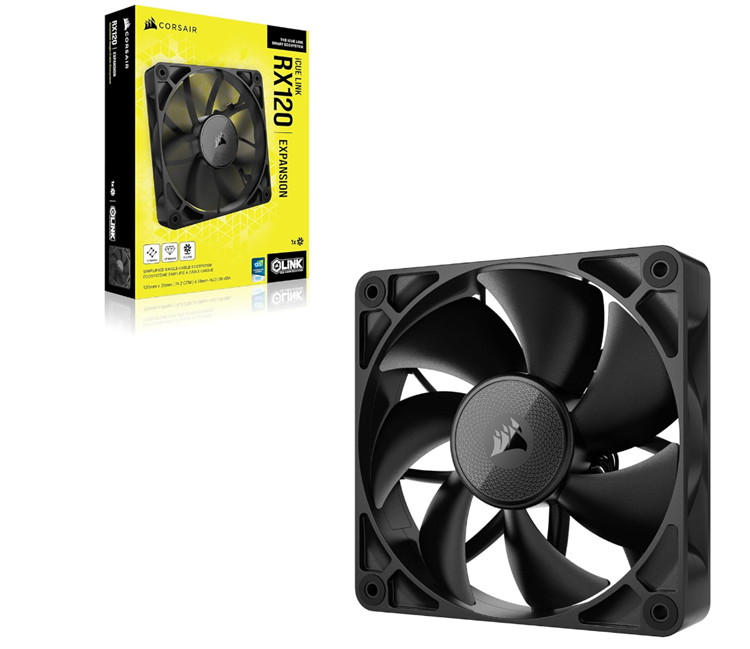

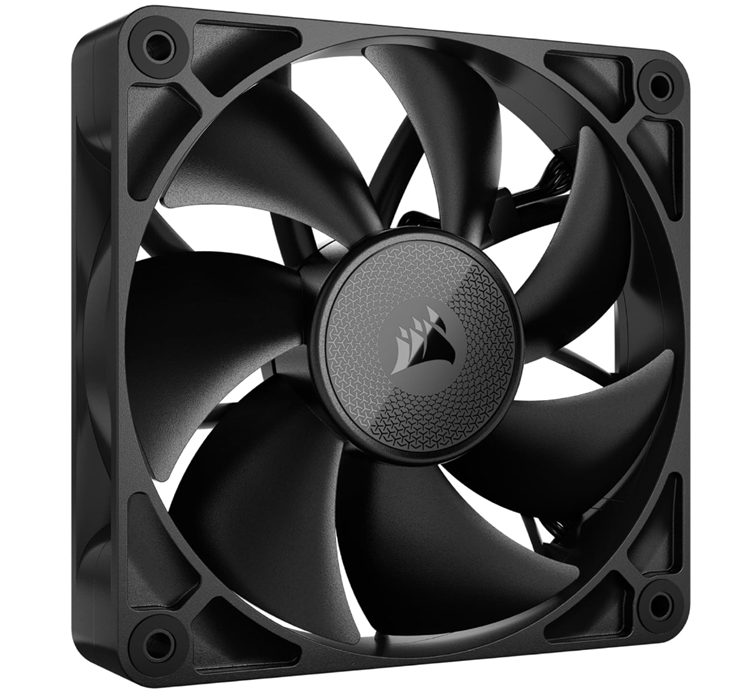

CORSAIR iCUE LINK RX120

CORSAIR RX120 PWM fans push through obstructions using high static pressure and PWM controlled speeds, built with premium Liquid Crystal Polymer and CORSAIR AirGuide technology.

Push airflow through cases and radiators like never before at low, medium, and high speeds. RX Series fans deliver high airflow and static pressure, while keeping noise as low as possible.

A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RX fans were engineered to excel at both.

Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency.

The fan housing was designed to support the largest possible blade radius within its size limit.

Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.

Constructed from glass fiber-reinforced liquid crystal polymer, RX Series fan blades offer the ultimate in radiator fan blade rigidity. The premium material prevents fan blade bending or buckling under varying degrees of static pressure, ensuring that optimal radiator flow is available at any fan speed.

CORSAIR MAGNETIC DOME BEARING - This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.

Highlights

• Fan Size: 120mm x 25mm
• Power Draw: 0.58A
• PWM Control: Yes
• Flow Type: STATIC PRESSURE
• Speed: 2100 RPM
• Fan Static Pressure: 0.12 - 4.38 mm-H20
• Sound Level: 10 - 36 dBA
• Fan Airflow: 10.5 - 74.2 CFM
• LINK Compatibility: No LED
• Warranty: 5 Years
