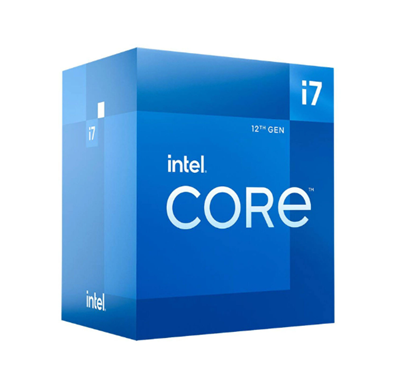

Intel Core i7-12700 Processor - s1700, 2.1/4.9GHz, 8Pc/4Ec/20t, Intel UHD Graphics 770
Product Type:
CPU
Type Detail:
Intel Socket 1700 (12/13/14 Gen)
Manufacturer:
Intel
Manufacturer #:
BX8071512700
Part Status:
Current Stock
Milwaukee PC SKU:
160980
Price:
$299.99

Quick Tech Specs

Manufacture: Intel / 12th Gen
Socket: LGA 1700 / 12700
Family: Core I7
Base Clock Speed: Base Clock / 2.10GHz
Max Clock Speed: Max Clock Speed / 4.90GHz
Cores: Dodeca-Core (12 Cores) / 8 P cores - 4 E cores
Graphics Controller: Integrated Graphics / Intel UHD Graphics 770
Heatsink and Fan: Not Included
Hyper-Threading: Yes
Cache: CPU Cache / 25 MB Intel® Smart Cache
L2 Cache: 12MB
Thermal Power: Approx. TDP / Base Power 65 W/Turbo Power 189 W
Threads: 20
Virtualization Technology: Yes


Intel Core i7 12700

Essentials

  • Lithography: Intel 7
  • Sockets Supported: FCLGA1700
  • Max CPU Configuration: 1
  • Thermal Solution Specification: PCG 2020C
  • Embedded Options Available: Yes

Performance

  • Total Cores: 12
  • # of Performance-cores: 8
  • # of Efficient-cores: 4
  • Total Threads: 20
  • Max Turbo Frequency: 4.90 GHz
  • Intel® Turbo Boost Max Technology 3.0 Frequency: 4.90 GHz
  • Performance-core Max Turbo Frequency: 4.80 GHz
  • Efficient-core Max Turbo Frequency: 3.60 GHz
  • Performance-core Base Frequency: 2.10 GHz
  • Efficient-core Base Frequency: 1.60 GHz
  • Cache: 25 MB Intel® Smart Cache
  • Total L2 Cache: 12 MB
  • Processor Base Power: 65 W
  • Maximum Turbo Power: 180 W

Memory Specifications

  • Max Memory Size (dependent on memory type): 128 GB
  • Memory Types: Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
  • Max # of Memory Channels: 2
  • Max Memory Bandwidth: 76.8 GB/s

Graphics Specifications

  • Processor Graphics: Intel® UHD Graphics 770
  • Graphics Base Frequency: 300 MHz
  • Graphics Max Dynamic Frequency: 1.50 GHz
  • Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
  • Execution Units: 32
  • Max Resolution (HDMI): 4096 x 2160 @ 60Hz
  • Max Resolution (DP): 7680 x 4320 @ 60Hz
  • Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz
  • DirectX* Support: 12
  • OpenGL* Support: 4.5
  • Multi-Format Codec Engines: 2
  • Intel® Quick Sync Video: Yes
  • Intel® Clear Video HD Technology: Yes
  • # of Displays Supported: 4
  • Device ID: 0x4680
  • OpenCL* Support: 2.1

Expansion Options

  • Direct Media Interface (DMI) Revision: 4.0
  • Max # of DMI Lanes: 8
    • Scalability: 1S Only
  • PCI Express Revision: 5.0 and 4.0
    • PCI Express Configurations: Up to 1x16+4, 2x8+4
  • Max # of PCI Express Lanes: 20

Advanced Technologies

  • Intel® Gaussian & Neural Accelerator: 3.0
  • Intel® Thread Director: Yes
  • Intel® Deep Learning Boost (Intel® DL Boost): Yes
  • Intel® Optane™ Memory Supported: Yes
  • Intel® Speed Shift Technology: Yes
  • Intel® Turbo Boost Max Technology 3.0: Yes
  • Intel® Turbo Boost Technology: 2.0
  • Intel® Hyper-Threading Technology: Yes
  • Intel® Virtualization Technology (VT-x): Yes
  • Intel® Virtualization Technology for Directed I/O (VT-d): Yes
  • Intel® VT-x with Extended Page Tables (EPT): Yes
  • Intel® 64: Yes
  • Instruction Set: 64-bit
  • Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
  • Idle States: Yes
  • Enhanced Intel SpeedStep® Technology: Yes
  • Thermal Monitoring Technologies: Yes
  • Intel® Volume Management Device (VMD): Yes

Security & Reliability

  • Intel® AES New Instructions: Yes
  • Secure Key: Yes
  • Intel® OS Guard: Yes
  • Execute Disable Bit: Yes
  • Intel® Boot Guard: Yes
  • Mode-based Execute Control (MBEC): Yes
  • Intel® Control-Flow Enforcement Technology: Yes
