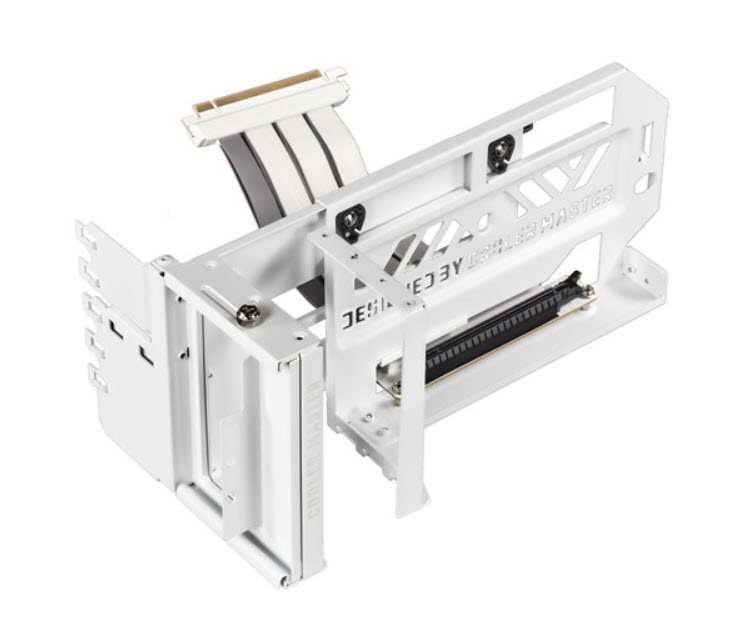

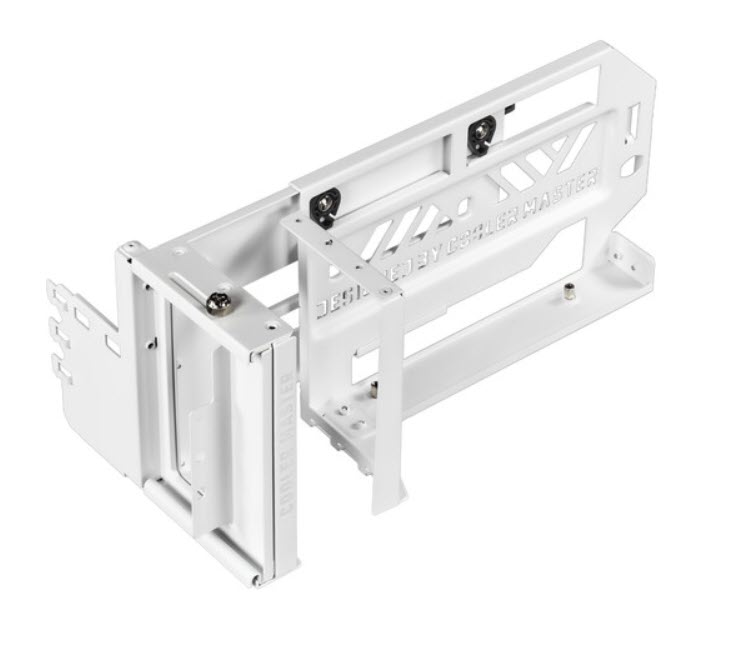

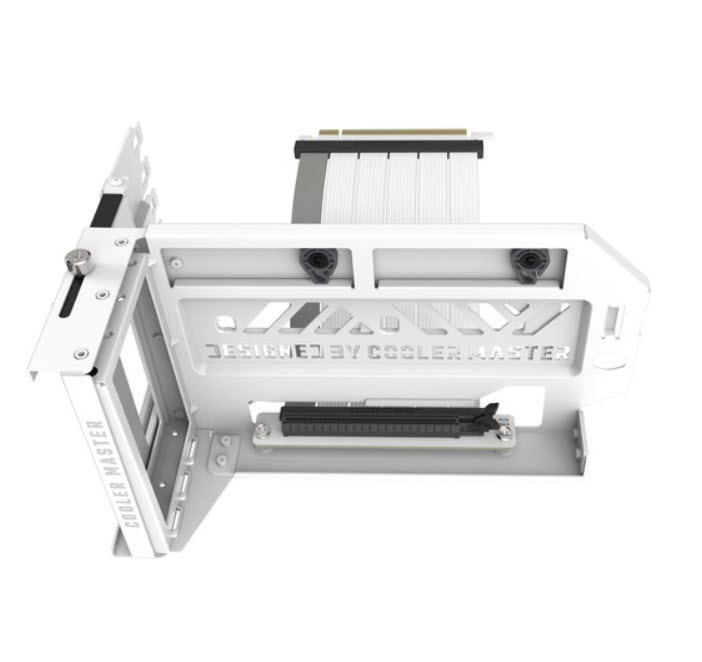

VERTICAL GRAPHICS CARD HOLDER KIT V3

Supporting cases ranging in size from m-ATX to ATX, and featuring a removable adjustable GPU bracket, this remastered design allows unprecedented compatibility with various builds and setups. A PCIe 4.0 riser cable is included to assist the installation process and ensure high efficiency at compromised speeds.

Highlights

• Dimensions (L x W x H): GFX Holder kit: 249 x 148.1 x 141.8 mm (close size), GFX Holder kit: 305 x 178.1 x 141.8 mm (open size), Riser cable: 165mm (6.49in)
• Supported Chassis Type: E-ATX, ATX, Micro ATX (may interfere with component installation on the rear panel. Max. CPU cooler height limited to 70mm.)
• Supported Graphics Cards: Any length, up to 3 slots wide
• Riser Cable Model: Riser Cable PCIe 4.0 x16
• Compatibility: PCIe 4.0 and older
• Connectors: PCIe x16 Male to PCIe x16 90° Female
• Rated Working Voltage and Current: DC 12V / 5A
• Required PCI slots: Minimum 4 PCI slots required for mounting
• Warranty: 2 years
