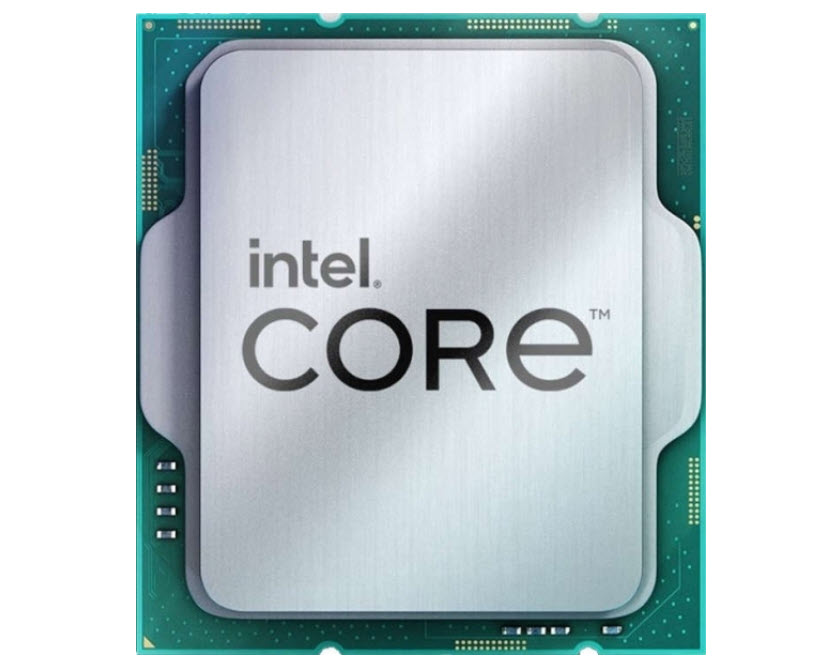

Intel® Core™ i5-14400 Tray

Essentials

• Product Collection: Intel® Core™ i5 Processors (14th gen)
• Lithography: Intel 7
• Sockets Supported: FCLGA1700
• Max CPU Configuration: 1
• Thermal Solution Specification: PCG 2020C
• Embedded Options Available: Yes

Performance

• Total Cores: 10
• # of Performance-cores: 6
• # of Efficient-cores: 4
• Total Threads: 16
• Max Turbo Frequency: 4.70 GHz
• Performance-core Max Turbo Frequency: 4.70 GHz
• Efficient-core Max Turbo Frequency: 3.50 GHz
• Performance-core Base Frequency: 2.50GHz
• Efficient-core Base Frequency: 1.80GHz
• Cache: 20 MB Intel® Smart Cache
• Total L2 Cache: 9.5 MB
• Processor Base Power: 65 W
• Maximum Turbo Power: 148 W

Memory Specifications

• Max Memory Size (dependent on memory type): 192 GB
• Memory Types: Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 76.8 GB/s

Graphics Specifications

• GPU Name: Intel® UHD Graphics 730
• Graphics Max Dynamic Frequency: 1.55 GHz
• Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units: 24
• Max Resolution (HDMI): 4096 x 2160 @ 60Hz
• Max Resolution (DP): 7680 x 4320 @ 60Hz
• Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz
• DirectX Support: 12
• OpenGL Support: 4.5
• OpenCL Support: 3.0
• Multi-Format Codec Engines : 1
• Intel® Quick Sync Video: Yes
• Intel® Clear Video HD Technology: Yes
• # of Displays Supported: 4
• Device ID: 0x4682/0xA782

Expansion Options

• Direct Media Interface (DMI) Revision: 4.0
• Max # of DMI Lanes: 8
Scalability: 1S Only
• PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1x16+4, 2x8+4
• Max # of PCI Express Lanes: 20

Advanced Technologies

• Intel® Gaussian & Neural Accelerator: 3.0
• Intel® Thread Director: Yes
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
• Intel® Speed Shift Technology: Yes
• Intel® Turbo Boost Technology: 2.0
• Intel® Hyper-Threading Technology/: Yes
• Intel® 64: Yes
• Instruction Set: 64-bit
• Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States: Yes
• Enhanced Intel SpeedStep® Technology: Yes
• Thermal Monitoring Technologies: Yes
• Intel® Volume Management Device (VMD): Yes

Security & Reliability

• Intel® Standard Manageability (ISM): Yes
• Intel® Control-Flow Enforcement Technology: Yes
• Intel® AES New Instructions: Yes
• Secure Key: Yes
• Intel® OS Guard: Yes
• Execute Disable Bit: Yes
• Intel® Boot Guard: Yes
• Mode-based Execute Control (MBEC): Yes
• Intel® Virtualization Technology (VT-x): Yes
• Intel® Virtualization Technology for Directed I/O (VT-d): Yes
• Intel® VT-x with Extended Page Tables (EPT): Yes
