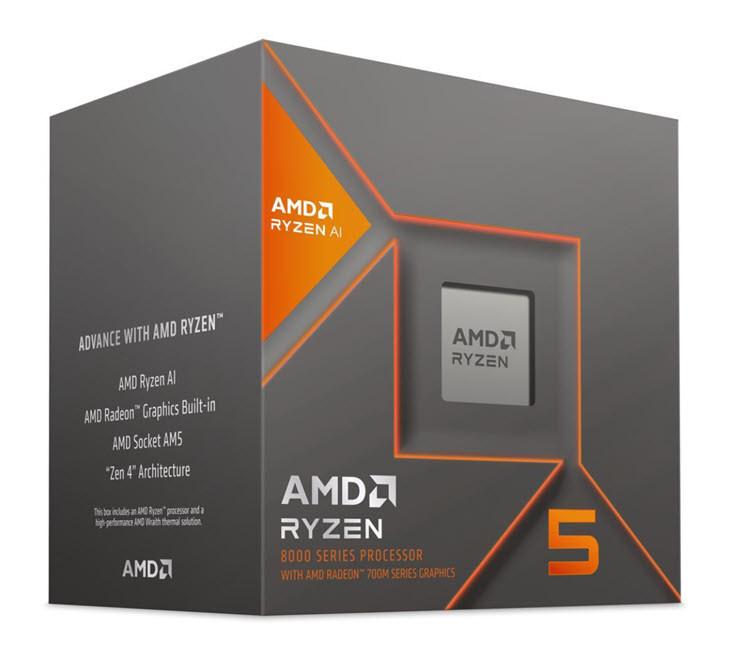

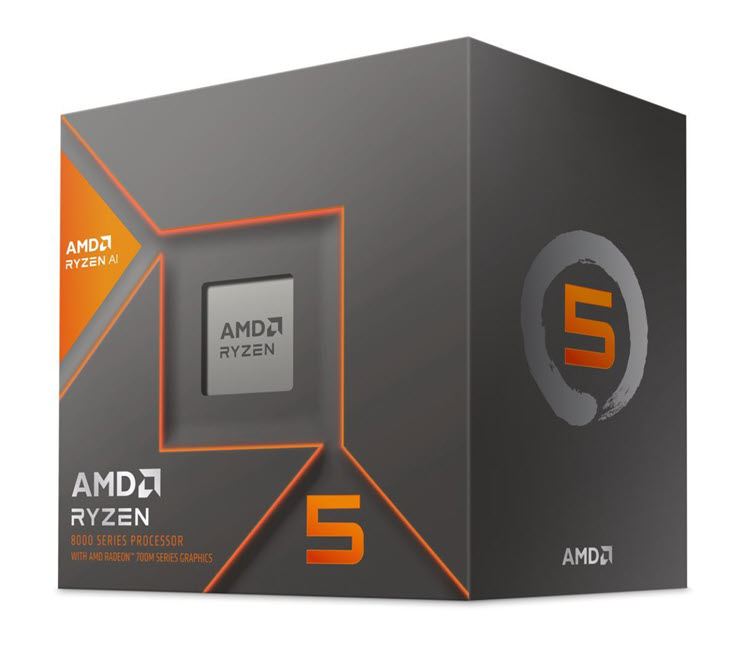

AMD Ryzen 5 8600G - AM5, 4.3/5.0GHz, 6c/12t, Radeon 760M Gfx, 65W, Unlocked, Wraith Stealth Cooler

Product Type:

CPU

Type Detail:

AMD Socket AM5

Manufacturer:

AMD

Manufacturer #:

100-100001237BOX

Part Status:

Special Order Only

Milwaukee PC SKU:

161114

Price:

$259.99

AMD CPU 100-100001237BOX Ryzen 5 8600G 6C 12T 4.3GHz 65W Bare

Quick Tech Specs

Manufacture:	AMD
Socket:	AM5
Family:	Ryzen 5 / 8600G
Max Clock Speed:	Max Clock Speed / 5.00 GHz
Clock Speed:	4.30 GHz
Cores:	Hexa-Core (6 Cores)
Graphics Controller:	AMD Radeon / 760M
Heatsink and Fan:	Included
Hyper-Threading:	Yes
L2 Cache:	8MB
L3 Cache:	16MB
Thermal Power:	65 W
Threads:	12

AMD Ryzen™ 5 8600G

The latest AMD Ryzen G-Series processors feature best-in-class graphics built-in, so you can play virtually any PC game out there in high definition without the added expense of a graphics card. And if you want to take your gaming to the next level later, you can add a high-performance graphics card whenever you want.

Your PC platform can be an investment, or a liability. AMD is the only processor manufacturer that has committed to years of future support for the cutting-edge Socket AM5 platform, so you will be able to upgrade to new processors we haven’t even announced yet.

Highlights

CPU Socket: AM5
Unlocked for Overclocking: Yes
# of CPU Cores: 6
# of Threads: 12
Multithreading (SMT): Yes
Base Clock: 4.30GHz
Max. Boost Clock: Up to 5.00GHz
L2 Cache: 6 MB
L3 Cache: 16 MB
Default TDP: 65 W
AMD Configurable TDP (cTDP): 45-65 W
Processor Technology for CPU Cores: TSMC 4nm FinFET
Max. Operating Temperature (Tjmax): 95°C
PCI Express® Version: PCIe® 4.0
System Memory Type: DDR5
Max Memory: 256 GB
Memory Channels: 2
Max Memory Speed: 2x1R - DDR5-5200, 2x2R - DDR5-5200, 4X1R - DDR5-3600, 4x2R - DDR5-3600
Graphics Model: AMD Radeon™ 760M
Graphics Core Count: 8
Graphics Frequency: 2800 MHz
AMD EXPO™ Memory Overclocking Technology: Yes
CPU Boost Technology: Precision Boost 2
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
Instruction Set: x86-64
Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Native PCIe® Lanes (Total/Usable): 20/16
NVMe Support: Boot, RAID0, RAID1
DirectX® Version: 12
DisplayPort Version: 2.1
DisplayPort Extensions: HDR Metadata, Adaptive-Sync, UHBR10
DisplayPort Max Refresh Rates (SDR): 7680x4320 @ 60Hz, 3840x2160 @ 240Hz, 3440x1440 @ 360Hz, 2560x1440 @ 480Hz, 1920x1080 @ 600Hz
DisplayPort Max Refresh Rates (HDR): 7680x4320 @ 60Hz, 3840x2160 @ 240Hz, 3440x1440 @ 360Hz, 2560x1440 @ 480Hz, 1920x1080 @ 600Hz
HDMI® Version: 2.1
HDCP Version Supported: 2.3
USB Type-C® DisplayPort™ Alternate Mode: Yes
Max Displays: 4
AMD FreeSync™: Yes
Wireless Display: Miracast
AMD SmartAccess Memory: Yes
AMD Ryzen™ AI:: Yes, Performance - Up to 16 TOPS
AMD Enhanced Virus Protection (NX bit): Yes
Native USB 4 (40Gbps) Ports: 2
Native USB 3.2 Gen 2 (10Gbps) Ports: 2
Native USB 2.0 (480Mbps) Ports: 1
