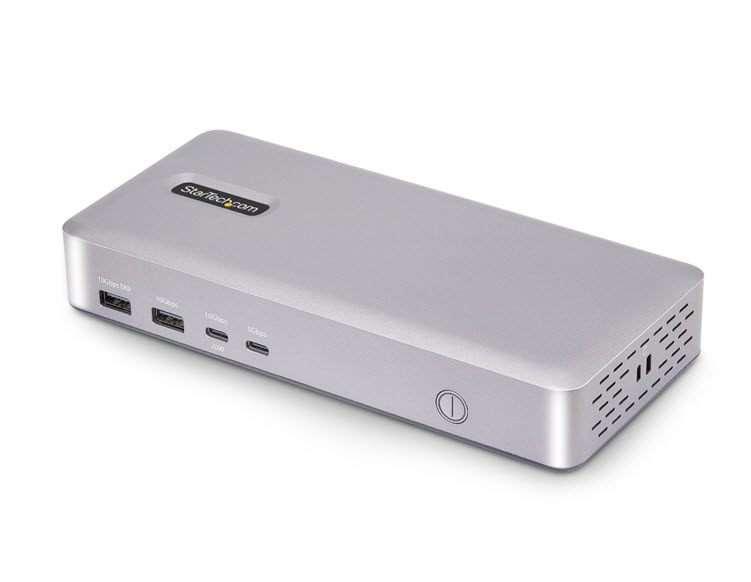

USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6 x USB, 2.5GbE, 100W PD

HIGH-PERFORMANCE USB4 DOCK: USB4 delivers 40Gbps data transfer speeds, and improved bandwidth for video, making this mobile docking station an ideal solution for high-performance computing & seamless device connectivity

DUAL 4K 60Hz/120Hz VIDEO: 2x HDMI 2.1 ports support Dual 4K 60Hz or up to Dual 4K 120Hz / Single 8K 60hz at 4:2:2; Delivers direct GPU performance with no software or compression

COMPATIBILITY: Dock is Compatible with Windows 11 (x64 and ARM), Windows 10, and ChromeOS; Optimal performance with Thunderbolt 4 and USB4 laptops; Compatible with Intel 12th Gen and later, Intel Core Ultra, AMD, and Snapdragon X Co-Pilot+ PC's

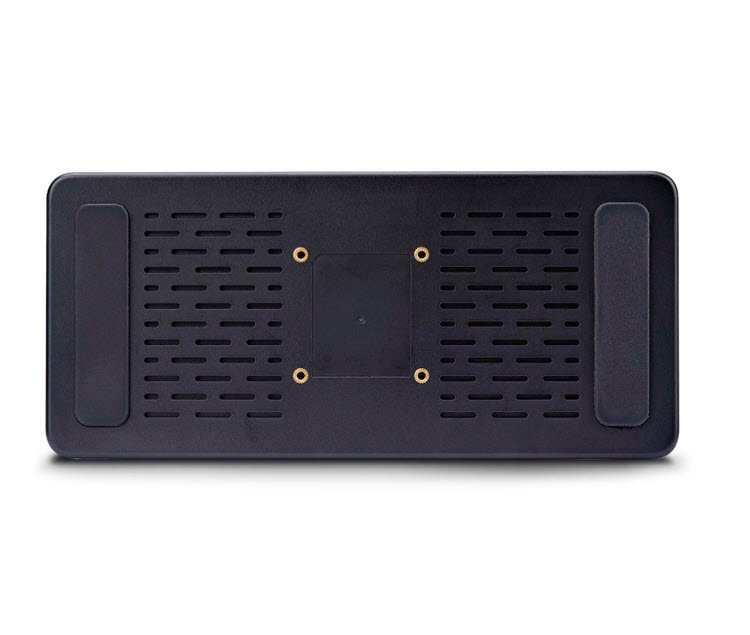

DEVICE SECURITY: Secure 3.3ft (1m) USB-C locking cable for host port; Mounting holes available for optional mounting bracket; K-slot & Nano security slots; USB Event Monitoring, Mac Address Pass-Through with included Connectivity Tools software suite

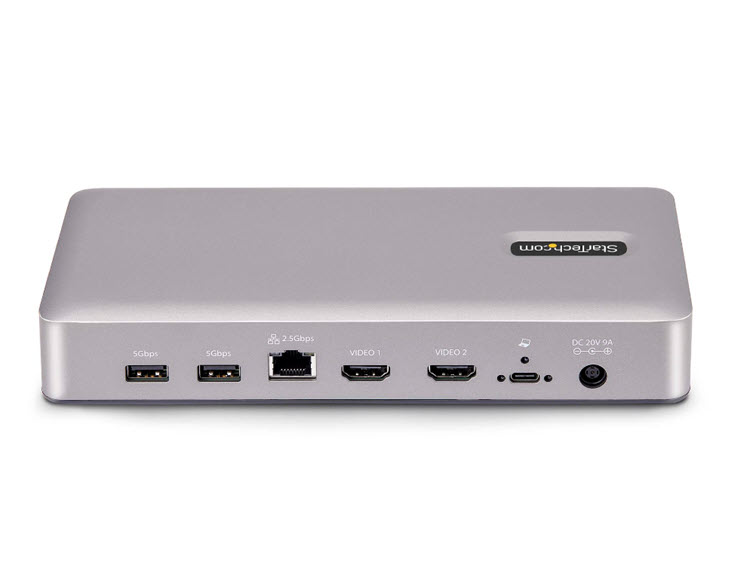

PORTS: 6-port USB hub (2x USA-A 10Gbps / 2x USB-A 5Gbps / 1x USB-C 10Gbps / 1x USB-C 5Gbps); 2.5Gb LAN (10/100/1000/2500Mbps, WoL/PXE); 180W power adapter charges laptop (100W PD) & powers all ports; 1x 20W USB-C, 1x 7.5W USB-A for charging USB devices

Highlights

• External Ports:2 - HDMI (19 pin) - 1 - USB 3.2 Type-A (9 Pin, Gen 2, 10Gbps, 7.5W Power) - 1 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps) - 1 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps) - 1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) - 1 - USB 3.2 Type-C (24 Pin, Gen 2, 10Gbps, 20W Power)
• Host Connectors: 1 - USB4 40Gbps (Thunderbolt 4/3, USB 3.2)
• 4K Support: Yes
• Fast-Charge Port(s): Yes
• Displays Supported: 2
• Interface: USB4 (40Gbps)
• Bus Type: USB4 (40Gbps)

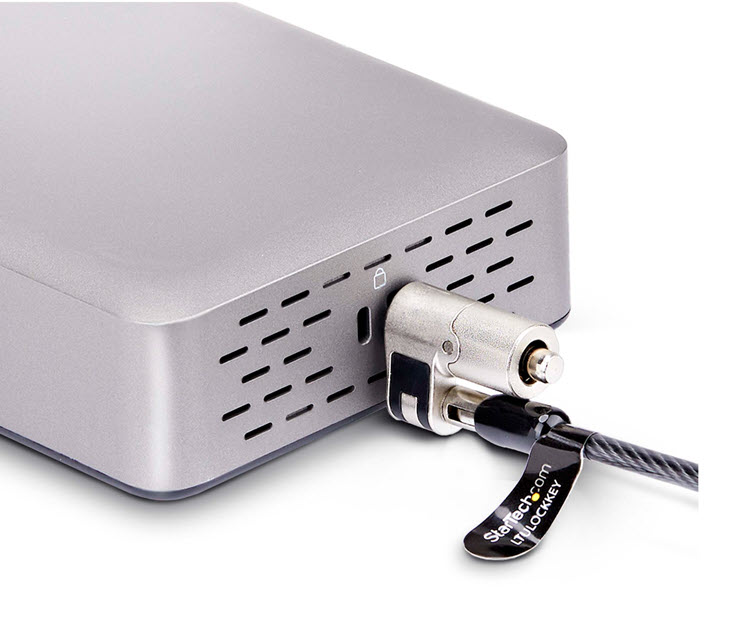

• Compatible Lock Slot: Kensington Standard Slot (K-Slot),Kensington Nano Slot
• Industry Standards: USB4 (40Gbps) - USB 3.2 Gen 2 (10Gbps) - USB 3.2 Gen 1 (5Gbps) - USB Power Delivery 3.0 - USB Battery Charging Specification 1.2
• Chipset ID: VIA - VL830, VIA - VL163, Realtek - RTD2188-VA-CG, Genesys Logic - GL9901NE
• LED Indicators: 1 - Power LED
• Wake On Lan: Yes
• Maximum Data Transfer Rate: 40Gbps
• Maximum Digital Resolutions: {Dual Display} 4:4:4 - 2x 4K (3840 x 2160) 60Hz, 4:2:2 - 2x 4K (3840 x 2160) 120Hz, {Single Display} 4:4:4 - 8K (7680 x 4320) 30Hz, 4:2:2 - 8K (7680 x 4320) 60Hz
• Type and Rate: USB4 - 40 Gbit/s
• UASP Support: Yes
• Supported Charging Outputs:BC 1.2 (1.5A), USB-C (20W)
• Compatible Networks: 2.5G / 1G / 100Mbps / 10Mbps
• PXE: Yes
• Full Duplex Support: Yes
• MTBF: 10,000 Hours

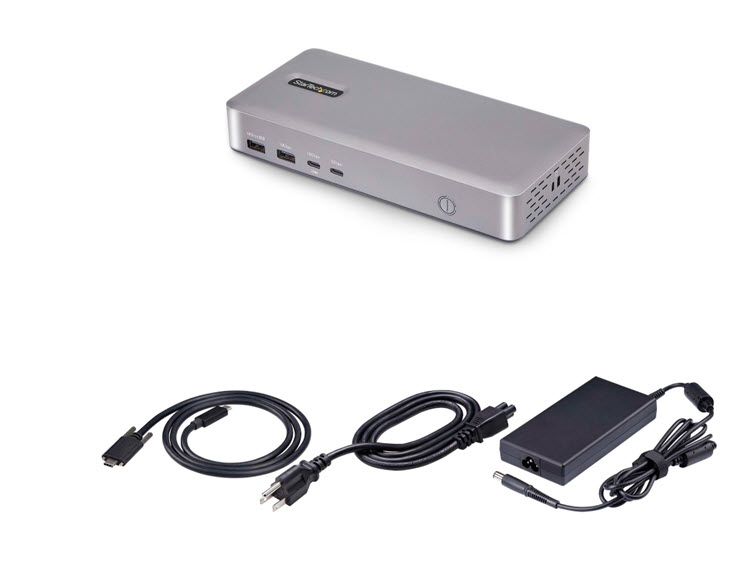

• Power Source: AC Adapter Included
• Power Delivery: 100W
• Input Voltage: 100 - 240 AC
• Input Current: 2.5 A
• Output Voltage: 20V DC
• Output Current: 9 A
• Center Tip Polarity: Positive
• Plug Type: M
• Power Consumption (In Watts): 165 W
• OS Compatibility: Windows® 10, 10 ARM, 11, 11 ARM, ChromeOS™
• Color: Space Gray
• Product Height: 1.3 in [3.4 cm]
• Product Length: 3.8 in [9.5 cm]
• Weight of Product: 4.9 oz [138.6 g]
• Product Width: 8.3 in [21.0 cm]
• Material: Plastic
• Warranty: 3 Years
