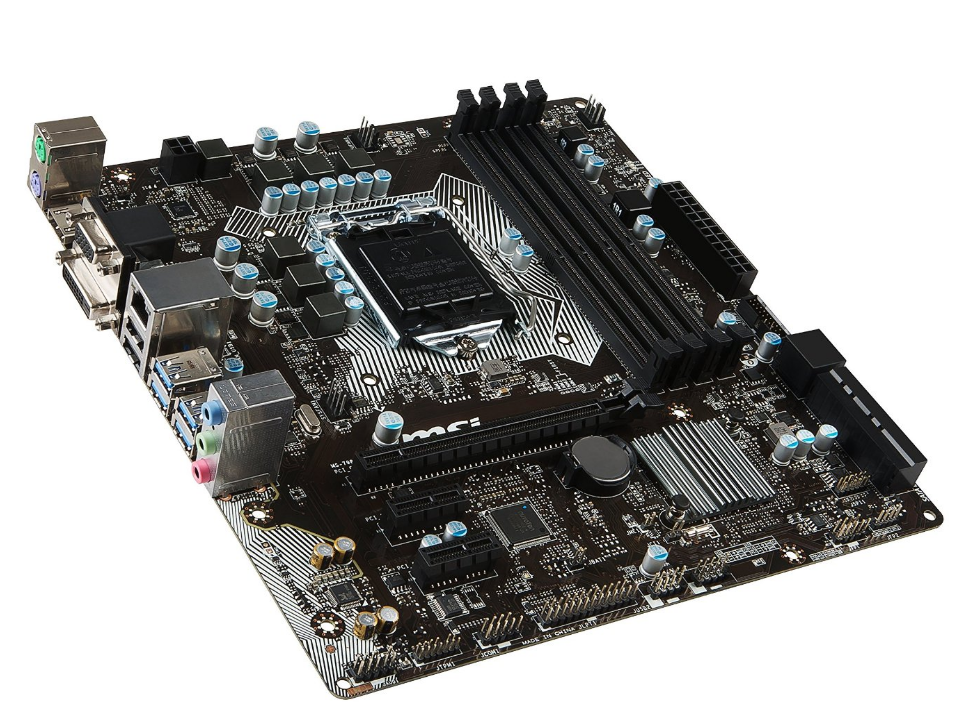

MSI B150M Pro-VDH - micro-ATX, s1151, 4xDDR4, USB 3.1, GigLAN
Product Type:
Motherboards
Type Detail:
Intel Socket 1151 (1xx/2xx Chipset)
Manufacturer:
MSI
Manufacturer #:
B150M Pro-VDH
Part Status:
Phase-Out
Milwaukee PC SKU:
263403
Price:
$89.99

Quick Tech Specs

Processor Manufacture: Intel
Socket: LGA 1151
Brand: MSI
Chipset Manufacture: Intel
Form Factor: Micro ATX
SLI Support: NONE
Crossfire Support: NONE
Number of Memory Slots: 4 Slots
Max Memory: 64GB
Memory Type: DDR4
PCI Express x16 Slots: 1 Slots
PCI Express x1 Slots: 2 Slots
PCI Slots: None
WiFi Onboard: NONE
RAID Support: NONE
Sata 6 Gbits/s Ports (3.0/3.1): 6 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: None
NVMe Support: No
eSata Ports: None
Legacy Ports: NONE
Thunderbolt Ports: NONE
USB 3.0 Ports: 4 Ports
USB 2.0 Ports: 2 Ports
Network Ports: Gigabit (10/100/1000)
Display Ports: NONE
DVI Ports: 1 Port
HDMI Ports: 1 Ports


MSI B150M Pro-VDH - micro-ATX


Form Factor

  • 9.3 in. x 9.0 in. (23.5 cm x 22.8 cm) m-ATX Form Factor

CPU

  • Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

Chipset

  • Intel® B150 Chipset

Memory

  • 4 x DDR4 memory slots, support up to 64GB - Supports DDR4 2133 MHz - Dual channel memory architecture - Supports ECC, un-buffered memory - Supports Intel® Extreme Memory Profile (XMP)

Graphic

  • 1 x HDMI™ ports, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz- 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz - 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz

Expansion Slots

  • 1 x PCIe 3.0 x16 slot - 2 x PCIe 3.0 x1 slots

Storage

  • 6 x SATA 6Gb/s ports - 1 x SATAe port (PCIe 3.0 x2)

LAN

  • 1 x Realtek RTL8111H Gigabit LAN controller

Audio

  • Realtek® ALC887 Codec - 7.1-Channel High Definition Audio

USB Ports

  • 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) - 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

OS Support

  • Windows 10

Internal I/O Ports

  • 1 x 24-pin ATX main power connector - 1 x 4-pin ATX 12V power connector - 6 x SATA 6Gb/s connectors - 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) - 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) - 1 x 4-pin CPU fan connector - 2 x 4-pin system fan connectors - 1 x Clear CMOS jumper - 1 x Front panel audio connector - 2 x Front panel connectors - 1 x TPM module connector - 1 x Chassis Intrusion connector - 1 x Serial port connector - 1 x Parallel port connector

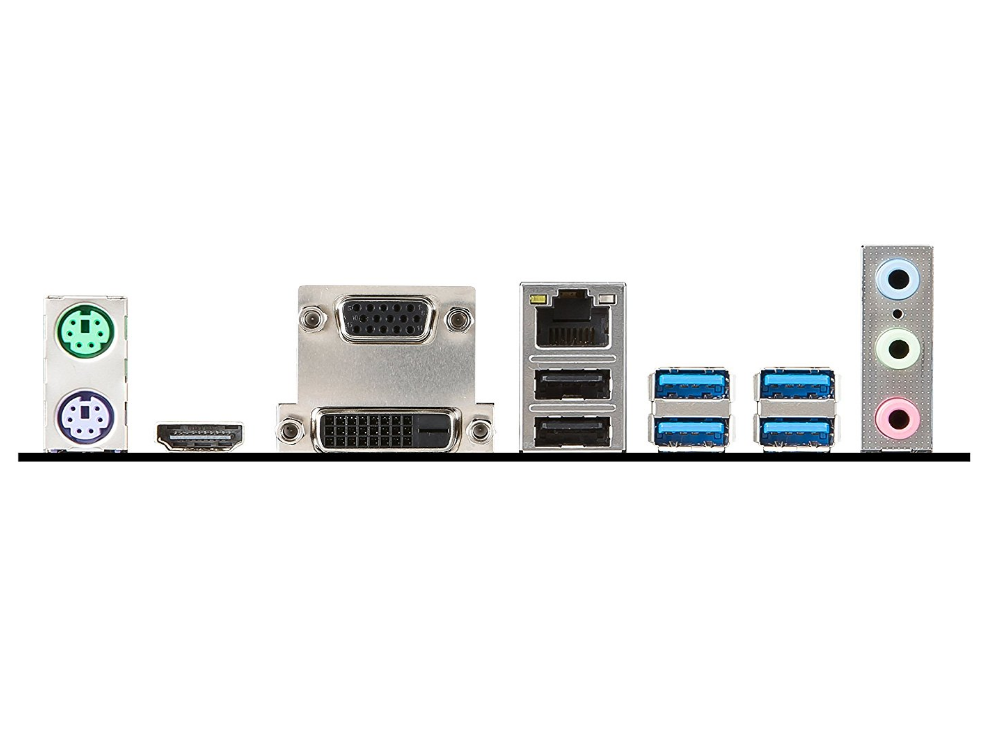

Back I/O Ports

  • 1 x PS/2 keyboard port - 1 x PS/2 mouse port - 1 x HDMI™ port - 1 x DVI-D port - 1 x VGA port - 2 x USB 2.0 ports - 4 x USB 3.1 Gen1 ports - 1 x LAN (RJ45) port - 3 x audio jacks
