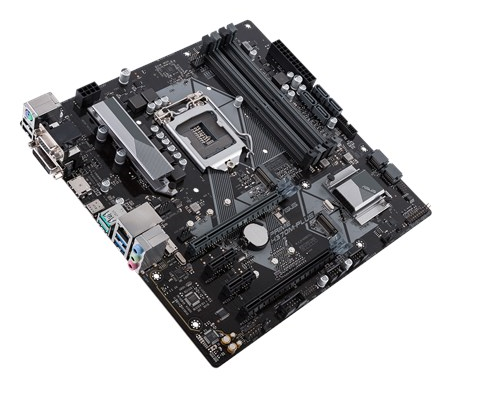

Asus Prime H370M-PLUS/CSM s1151 8th Gen, Micro ATX

Ready for 8th generation Intel Core processors, the Prime H370M-Plus/CSM delivers customizable performance. 5X Protection III with FanXpert 4 Core provides hardware-level safeguards. CrossFireX drives support for multiple GPUs, while dual M.2 slots and USB 3.1 Gen2 deliver maximum transfer speeds.

Form Factor

• Micro ATX Form Factor, 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

CPU

• Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors, Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 2.0

Chipset

• Intel® H370

Memory

• 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)

Graphic

• Integrated Graphics Processor- Intel® HD Graphics support, Multi-VGA output support : HDMI/DVI-D/D-Sub ports, - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz, - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz, - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz, Maximum shared memory of 1024 MB (for iGPU exclusively), Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-Graphic

• Supports AMD CrossFireX™ Technology

Expansion Slots

• 1 x PCIe 3.0/2.0 x16 (x16 mode), 1 x PCIe 3.0/2.0 x16 (max at x4 mode), 2 x PCIe 3.0/2.0 x1

Storage

• 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1, 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 5, 10, Intel® Optane™ Memory Ready

LAN

• Intel® I219V, 1 x Gigabit LAN Controller(s), ASUS LAN Guard

Audio

• Realtek® ALC887 8-Channel High Definition Audio CODEC, - Supports : Jack-detection, Front Panel Jack-retasking, Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB Ports

• Intel® H370 Chipset : 2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A), Intel® H370 Chipset : 5 x USB 3.1 Gen 1 up to 5Gbps port(s) (3 at back panel, , Type-A + USB Type-CTM, 2 at mid-board), Intel® H370 Chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

OS Support

• Windows® 10 64-bit

Internal I/O Ports

• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode), 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode), 1 x TPM header, 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 2 x Chassis Fan connector(s) (1 x 4 -pin), 1 x AIO_PUMP connector (1 x 4 -pin), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s) (Chassis intrusion header is inbuilt), 1 x Clear CMOS jumper(s), 1 x COM port header, 1 x Mono Out header

Back I/O Ports

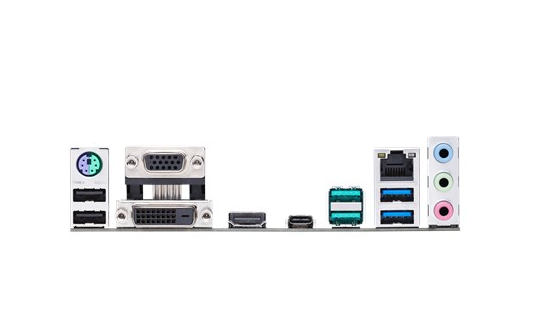

• 1 x PS/2 keyboard/mouse combo port(s), 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 2 (teal blue)up to 10Gbps, 3 x USB 3.1 Gen 1 (blue) Type-A + USB Type-CTM, 2 x USB 2.0, 3 x Audio jack(s)

Special Features

• ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design, ASUS EPU : - EPU, ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner - File Transfer, ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 Core, ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM, M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

Accessories

• User's manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 2 x M.2 screws, 1 x SCD
