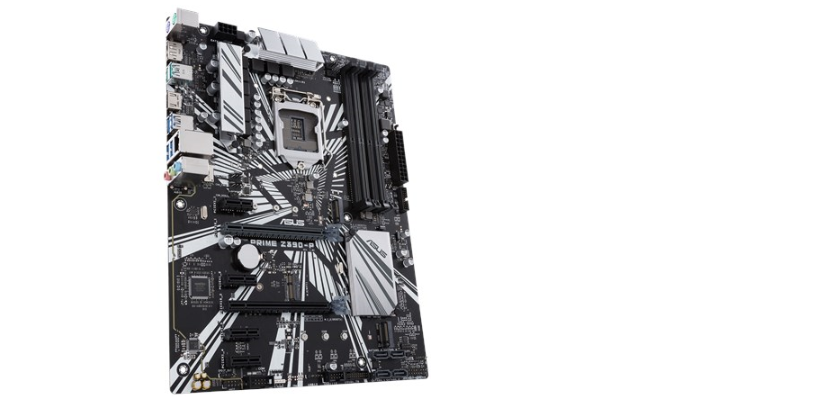

ASUS Prime Z390-P ATX 9th Gen 300 Series

Designed for 9th generation Intel Core processors, the Prime Z390-P delivers fully customizable performance. 5X Protection III with FanXpert 4 provides hardware-level safeguards, while SafeSlot Core fortified PCIe slots prevent damage caused by heavyweight GPUs. ASUS OptiMem II ensures better DRAM overclocking stability by minimizing trace interference.

Form Factor

• ATX Form Factor< 12.0 inch x 9.2 inch

CPU

• Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 3.0

Chipset

• Intel® Z390

Memory

• 4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.) /3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP)

Graphics

• Integrated Graphics Processor- Intel® UHD Graphics support, Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz, Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™, DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Multi-Graphics

• Supports AMD CrossFireX™ Technology

Expansion Slots

• 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4), 1 x PCIe 3.0/2.0 x16 (max at x4 mode), 4 x PCIe 3.0/2.0 x1, 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT and Intel® CNVi (Integrated Wi-Fi/BT) module*, *For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings. * The Wi-Fi/BT module is purchased separately

Storage

• Intel® Z390 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1, 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode), 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10, Intel® Rapid Storage Technology supports, Intel® Optane™ Memory Ready, Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1), PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card

LAN

• Realtek® RTL8111H, support LANGuard

Audio

• Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking, Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity, * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports

• Intel® Z390 Chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A), Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 4 at mid-board), Intel® Z390 Chipset : 3 x USB 2.0/1.1 port(s)

OS Support

• Windows 10 64-bit

Internal I/O Ports

• 1 x Lighting Control RGB Strip Header(s), 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s), 1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s), 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s), 1 x M.2 Socket 1 with E key, type 2230 Wi-Fi/BT device support or Intel® CNVi (Integrated Wi-Fi/BT) module, 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode), 1 x COM port(s) connector(s), 4 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s), 2 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x S/PDIF out header(s), 1 x 8-pin EATX 12 V Power connector, 1 x 24-pin EATX Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x MemOK! II switch(es), 1 x Clear CMOS jumper(s), 1 x System panel connector

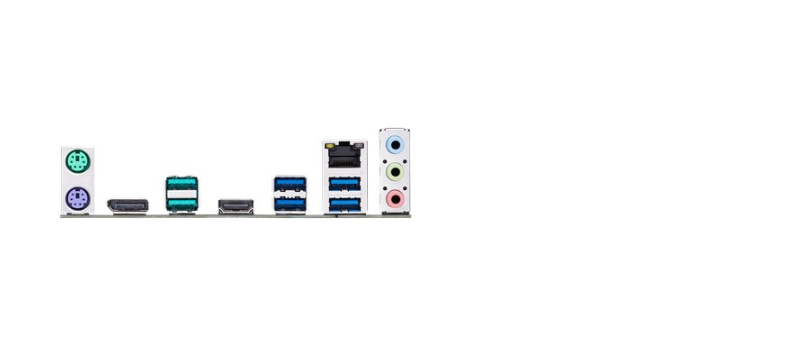

Back I/O Ports

• 1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 2 Type-A, 4 x USB 3.1 Gen 1 Type-A, 3 x 8-channel Audio I/O

Special Features

• Fan Xpert4 - Advanced fan and liquid controls for ultimate cooling and quietness, ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 9 Phase digital power design, ASUS Optimem II: - Optimem (Improved DDR4 stability), ASUS EPU : - EPU, ASUS Exclusive Features : - AI Suite 3 - Ai Charger, ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4, ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3, ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM, Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall), M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds), MemOK! II, - Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time), Q-Installer, - Auto download driver and software. Friendly for first PC builder.

Accessories

• User's manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 2 x M.2 Screw Package, 1 x SCD
