MSI H310M PRO-VDH PLUS, m-ATX, 8th/9th Gen 1151
Product Type:
Motherboards
Type Detail:
Intel Socket 1151 (3xx Chipset)
Manufacturer:
MSI
Manufacturer #:
H310MPROVDHP
Part Status:
Phase-Out
Milwaukee PC SKU:
264000
Price:
$79.99

Quick Tech Specs

Processor Manufacture: Intel
Socket: LGA 1151
Brand: MSI
Chipset Manufacture: Intel
Form Factor: Micro ATX
SLI Support: NONE
Crossfire Support: NONE
Number of Memory Slots: 2 Slots
Max Memory: 32GB
Memory Type: DDR4
PCI Express x16 Slots: 1 Slots
PCI Express x1 Slots: 2 Slots
PCI Slots: None
WiFi Onboard: NONE
RAID Support: NONE
Sata 6 Gbits/s Ports (3.0/3.1): 4 Ports
Sata 3 Gbits/s Ports (2.0): None
Sata Express 16 Gbits/s Ports (3.2): None
M.2 Slots: None
NVMe Support: No
eSata Ports: None
Legacy Ports: NONE
Thunderbolt Ports: NONE
USB 3.0 Ports: 2 Ports
USB 2.0 Ports: 4 Ports
Network Ports: Gigabit (10/100/1000)
Display Ports: NONE
DVI Ports: 1 Port
HDMI Ports: 1 Ports

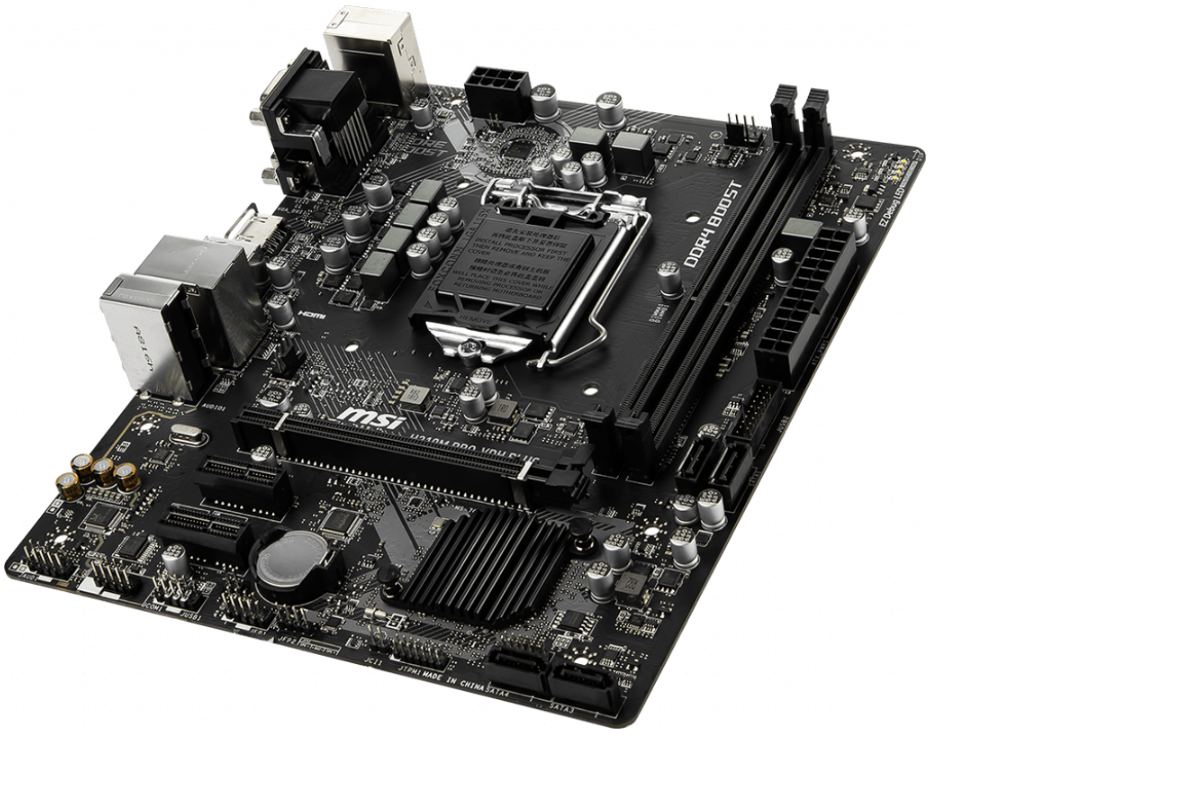

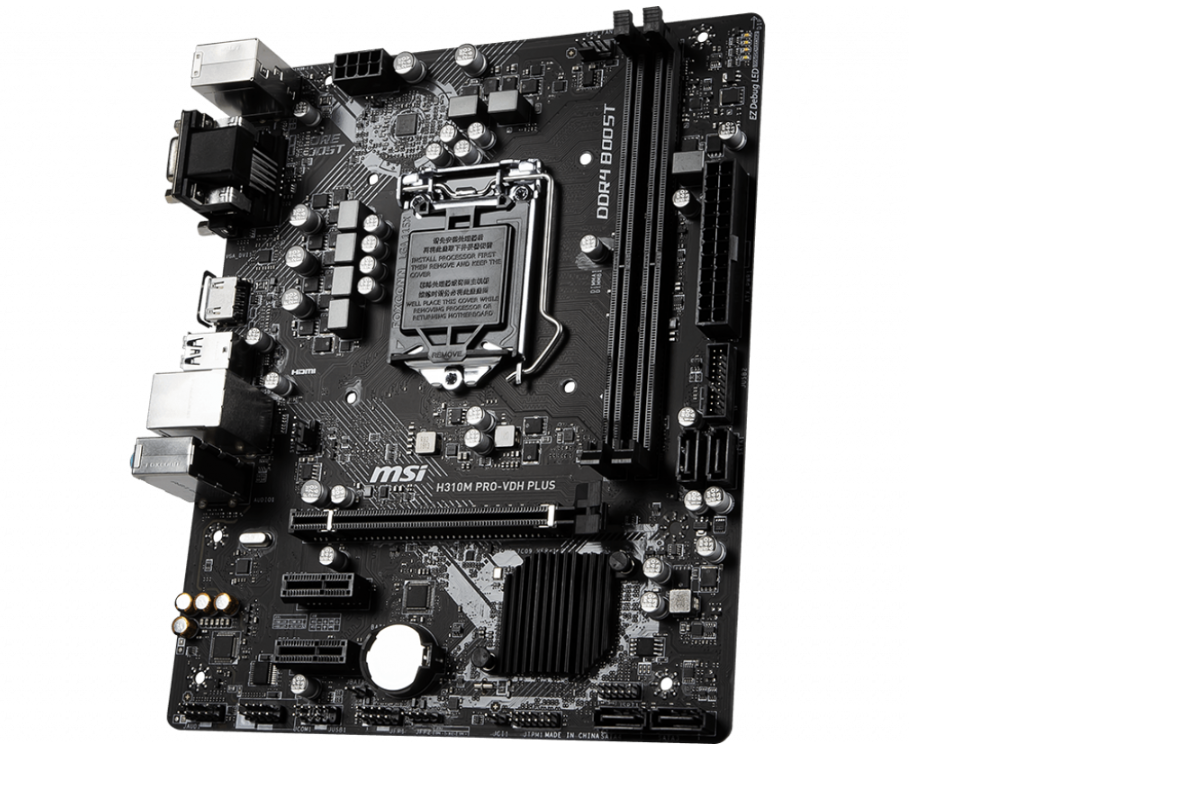

MSI H310M PRO-VDH PLUS

Form Factor

  • m-ATX Form Factor, 8.9 in. x 7.3 in.

CPU

  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

Chipset

  • Intel® H310 Chipset, This chipset is ME11 firmware based and doesn’t feature SDA3.0.

Memory

  • 2 x DDR4 memory slots, support up to 32GB, Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC)[1], Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC)[1], Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile (XMP), 1 - 2666 MHz for i7 and i5 processors only.

Graphics

  • 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz, 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz, 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H, *No Display support when using the Processor model with suffix “F”

Expansion Slots

  • 1 x PCIe 3.0 x16 slot, 2 x PCIe 2.0 x1 slots

Storage

  • Intel® H310 Chipset, 4 x SATA 6Gb/s ports, Supports Intel® Rapid Storage Technology

LAN

  • 1 x RTL8111H Gigabit LAN controller

Audio

  • Realtek® ALC887 Codec, 7.1-Channel High Definition Audio

USB Ports

  • Intel® H310 Chipset, 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector), 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

OS Support

  • Windows® 10 64-bit

Internal I/O Ports

  • 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 4 x SATA 6Gb/s connectors, 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports), 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports), 1 x Clear CMOS jumper, 2 x Front panel connectors, 1 x Serial port connector, 1 x TPM module connector, 1 x Chassis Intrusion connector, 1 x Front panel audio connector, 1 x 4-pin CPU fan connector, 1 x 4-pin system fan connector

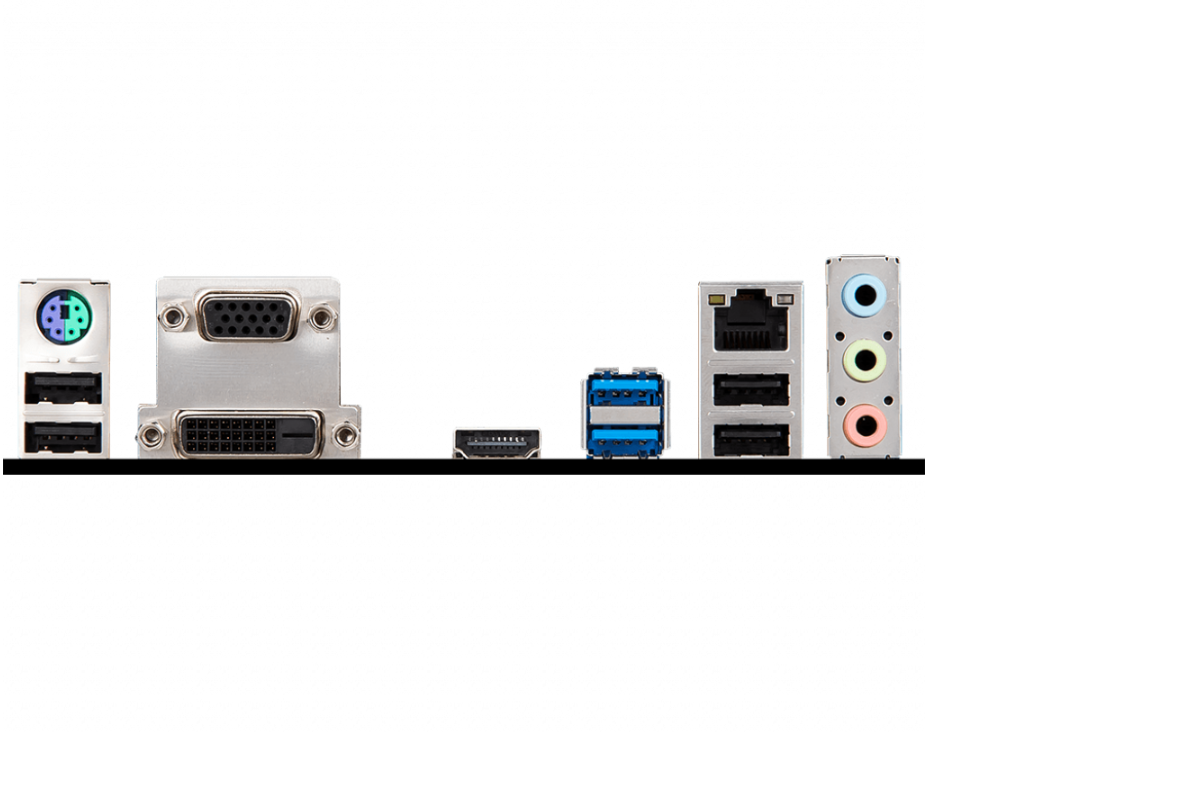

Back I/O Ports

  • PS/2 Combo Port, 4 x USB 2.0, 2 x USB 3.1 Gen1, HDMI, DVI-D, VGA, RJ-45, 3 x HD Audio Connectors
