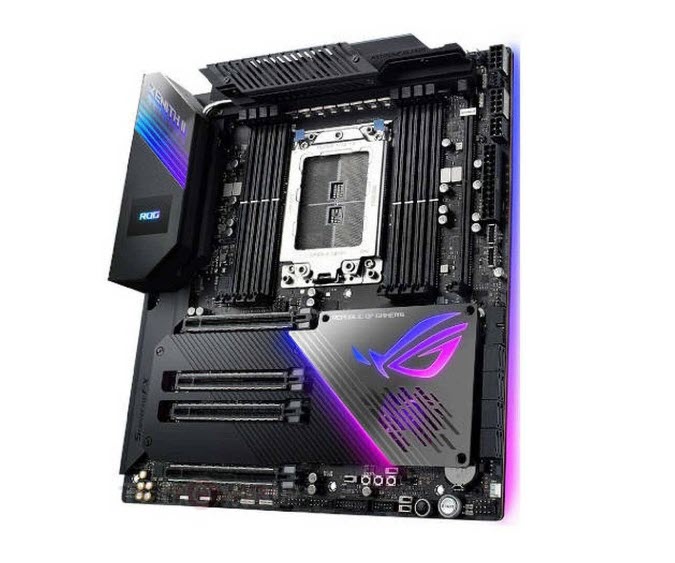

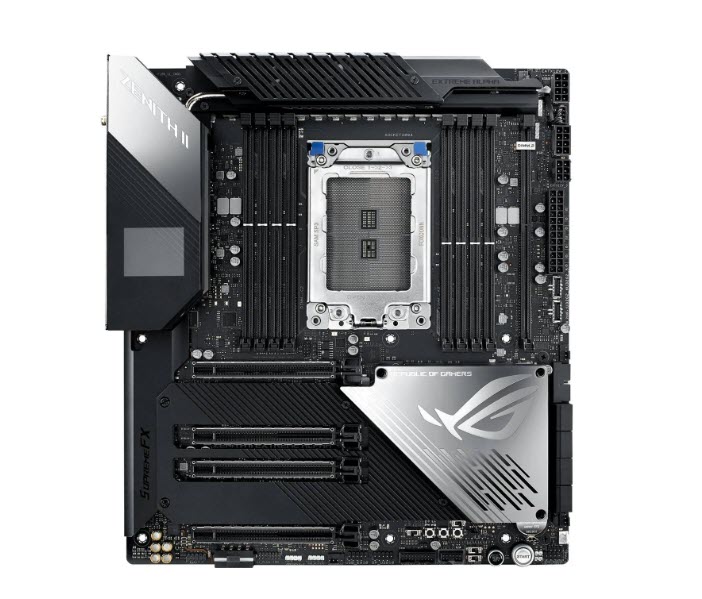

ROG Zenith II Extreme Alpha E-ATX AM4

Expertly engineered for those who demand full control, ROG Zenith II Extreme is future-proofed, ready for anything in the pipeline. It’s primed to unleash the full force of the latest 3rd Gen Ryzen Threadripper processors, while keeping thermals in check with a comprehensive cooling solution. Maximized lane bandwidth lets you connect up to 33 devices simultaneously, while every single PCIe x16 and M.2 slot is wired with PCIe® 4.0 – so you’re free to equip next-gen graphics cards or NVMe drives without fear of bottlenecks. Massive power, massive bandwidth.

Form Factor

• Extended ATX Form Factor, 12.2 inch x 10.9 inch ( 31 cm x 27.7 cm )

CPU

• Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors, Supports CPU up to 64 cores

Chipset

• AMD TRX40

Memory

• AMD Ryzen™ Threadripper™ Processors; 8 x DIMM, Max. 256GB, DDR4 4733(O.C)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.) /3733(O.C.)/3400(O.C.)/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory, Quad Channel Memory Architecture

Multi-GPU Support

• Supports NVIDIA® 3-Way SLI® Technology, Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

• 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors, 4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)

Storage

• 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*1 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2 Support Raid 0, 1, 10 AMD TRX40 chipset : 4 x SATA 6Gb/s port(s), ASMedia® SATA 6Gb/s controller : 4 x SATA 6Gb/s port(s),

LAN

• Intel® I211-AT, 1 x Gigabit LAN Controller(s), Aquantia AQC-107 10G, Anti-surge LANGuard, ROG GameFirst V Technology

Wireless Data Network

• Intel® Wi-Fi 6 AX200, Wi-Fi 802.11 ax, Bluetooth® 5.0, Supports dual band frequency 2.4/5 GHz, Supports 2x2 MU-MIMO, Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed

Bluetooth

• Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later.

Audio

• ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output 108 dB SNR recording input - ESS® ESS9018Q2C Audio Feature : - SupremeFX Shielding™ Technology - Sonic Studio III + Sonic Studio Virtual Mixer - DTS® Sound Unbound - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Sonic Radar III

USB Ports

• 3rd Gen AMD Ryzen™ Threadripper™ Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red), AMD TRX40 chipset : 2 x USB 3.2 Gen 2 front panel connector port(s), AMD TRX40 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, red, 2 x Type-A+1 x Type-C), AMD TRX40 chipset : 3 x USB 2.0 port(s), ASMedia® USB 3.2 Gen 1 controller : 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue), ASMedia® USB 3.2 Gen2x2 controller : 1 x USB 3.2 Gen 2x2 (up to 20Gbps) port(s) (1 at back panel, , Type-C)

OS Support

• Windows® 10 64-bit

Internal I/O Ports

• 2 x Aura RGB Strip Header, 2 x Addressable Gen 2 header(s), 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4 mode), 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode), 1 x TPM header, 8 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) , 1 x CPU OPT Fan connector(s) , 2 x Chassis Fan connector(s) , 1 x H_AMP fan connector, 2 x W_PUMP+ connector, 1 x WB_SENSOR, 1 x 6-pin EATX 12 V Power connector, 1 x 24-pin EATX Power connector(s), 2 x 8-pin EATX 12V Power connectors, 1 x 4-pin EZ_PLUG Power connector(s), 1 x Front panel audio connector(s) (AAFP), 7 x ProbeIt Measurement Points, 1 x BIOS Switch button(s), 1 x Node Connector(s), 1 x LN2 Mode jumper(s), 1 x Safe Boot button, 1 x ReTry button, 1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module, 1 x W_IN header, 1 x W_OUT header, 1 x W_FLOW header, 2 x USB 3.2 Gen 2 front panel connector, 1 x Speaker connector, 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110), 1 x RSVD Switch, 1 x Start button, 1 x FlexKey button , 1 x FS Mode switch, 1 x M.2_3 cold storage Switch, 1 x Chipset Fan Header, 1 x VRM_HS_FAN Header

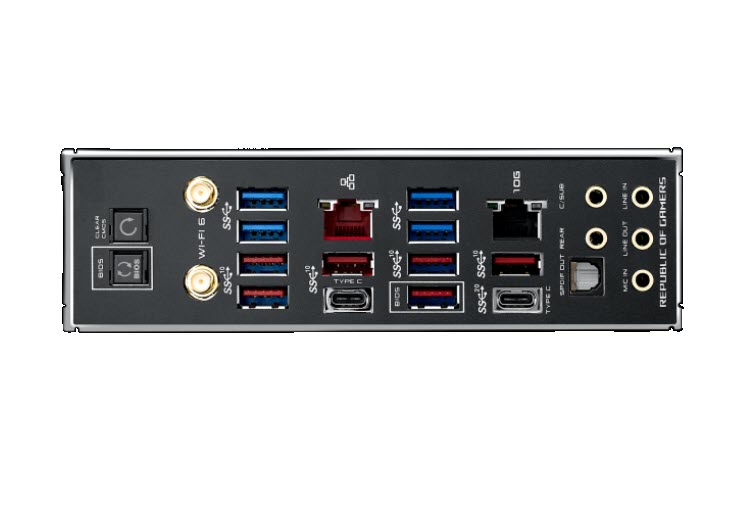

Back I/O Ports

• 1 x LAN (RJ45) port(s), 1 x USB 3.2 Gen 2x2 (up to 20Gbps) ports (Type-C), 4 x USB 3.2 Gen 1 blue, 5 x USB 3.2 Gen 2 (red) (3 x Type-A+1 x Type-C), 1 x Optical S/PDIF out, 1 x Clear CMOS button(s), 1 x USB BIOS FlashBack™ Button(s), 5 x LED-illuminated audio jacks, 1 x Aquantia AQC-107 10G LAN port

ROG Exclusive Features

• Clear CMOS button, ROG CPU-Z, ROG Aura, - Aura Lighting Control - Aura RGB Strip Headers, Extreme Engine Digi+ : - Infineon TDA21472 Power Stage - 10K Black Metallic Capacitors, ROG Extreme OC kit : - OptiMem III - ReTry button - Safe Boot button - Start button - Slow Mode - LN2 Mode - FlexKey Button ProbeIt, UEFI BIOS features : - ROG SSD Secure Erase - Graphic Card Information Preview USB BIOS FlashBack™, ROG Patented Pre-mounted I/O Shield, ROG Exclusive Software - Mem Tweakit - RAMCache III - GameFirst V - Sonic Radar III - Sonic Studio III + Sonic Studio Virtual Mixer ROG DIMM.2 module with heatsink ROG Aluminum heatsink cover

Special Features

• ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer's Guardian: - DRAM Overcurrent Protection - 10K Black Metallic Capacitors - DIGI+ VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports LiveDash OLED 1.77 ”, AURA : - Aura Lighting Control - Aura RGB Strip Headers - Addressable Gen 2 Header, ASUS Exclusive Features : - AI Suite 3 - Ai Charger+ - Pre-mounted I/O Shield - ASUS EZ Flash 3 - ASUS C.P.R.(CPU Parameter Recall) - BIOS FlashBack™ Button - Clear CMOS Button, ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector, Digi+VRM, MemOK! II, Armoury Crate

Accessories

• User's manual, 1 x ROG logo plate sticker, 6 x SATA 6Gb/s cable(s), 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header), 1 x Fan Extension Card II power cable, 1 x Fan Extension Card II NODE connector cable, 1 x Fan Extension Card II screw package, 1 x ROG big sticker, 1 x Thermistor cable(s), 1 x ROG coaster(s), 2 x ROG weave SATA 6G cable, 1 x ROG Thank you card, 1 x ROG DIMM.2 with heatsink, 1 x M.2 Pad for ROG DIMM.2, 1 x ROG Multi-Bit screwdriver, 1 x Wi-Fi moving antenna
