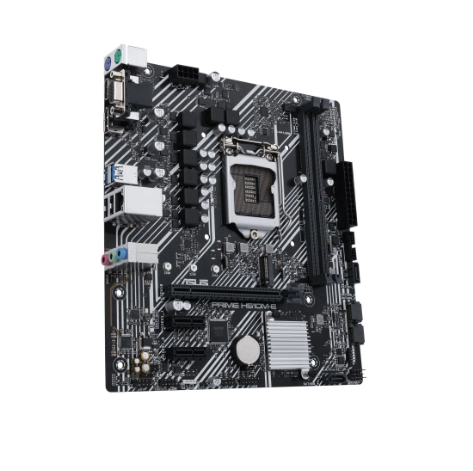

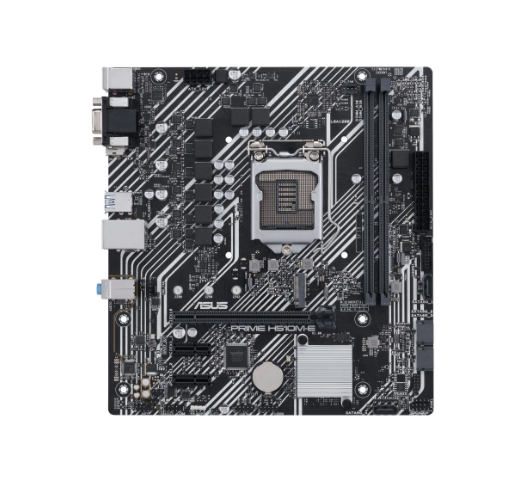

ASUS PRIME H510M-E

Form Factor

• mATX, 8.9 inch x 8.3 inch

CPU

• Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® 14 nm CPU, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel® H510 Chipset

Memory

• 2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively

Graphics

• 1 x DisplayPort 1.4, 1 x D-Sub, 1 x HDMI 2.0

Expansion Slots

• Intel® 11th & 10th Gen Processors; 1 x PCIe 4.0/3.0 x16 slot, - Intel® 11th Gen processors support PCIe 4.0 x16, - Intel® 10th Gen processors support PCIe 3.0 x16, Intel® H510 Chipset; 2 x PCIe 3.0 x1 slots

Storage

• Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports, Intel® H510 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes), 4 x SATA 6Gb/s ports, * The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.

LAN

• 1 x Intel® I219-V 1Gb Ethernet, 1 x Intel® I219-V 1Gb Ethernet

Audio

• Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

USB Ports

• Rear USB (Total 4 ports); 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 6 ports); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports

OS Support

• Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

• Fan and Cooling related; 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header, Power related; 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related; 1 x M.2 slot (Key M), 4 x SATA 6Gb/s ports, USB; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous; 1 x RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header

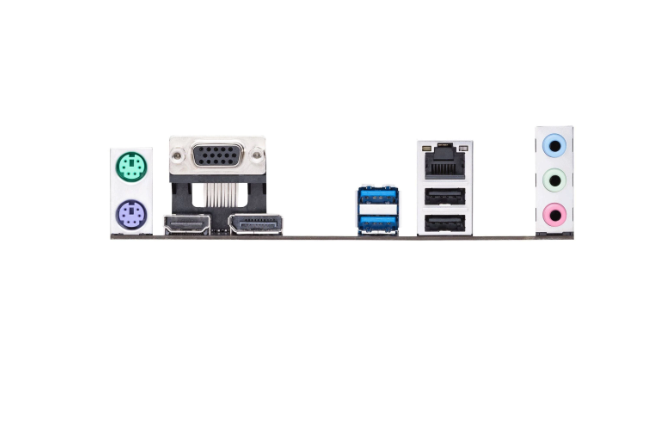

Back I/O Ports

• 2 x USB 3.2 Gen 1 ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x D-Sub port, 1 x HDMI™ port, 1 x Intel® I219-V 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard (purple) port, 1 x PS/2 Mouse (green) port

Software Features

• ASUS Exclusive Software, Armoury Crate, AI Suite 3 - Performance And Power Saving Utility, TurboV EVO, EPU, DIGI+ VRM, Fan Xpert - EZ update, ASUS CPU-Z, AI Charger, DAEMON Tools, Norton Anti-virus software (Free Trial version), WinRAR, UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Special Features

• ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O, ASUS Q-Design - Q-DIMM - Q-Slot, ASUS Thermal Solution - Aluminum heatsink design, ASUS Lighting Control - RGB header

Accessories

• Cables; 2 x SATA 6Gb/s cables, Miscellaneous; 1 x I/O Shield, 1 x M.2 SSD screw package, Installation Media; 1 x Support DVD, Documentation; 1 x User manual
