ROG Strix B550-XE

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCI Express® 4.0 interface. The flagship of the B550 motherboard range, ROG Strix B550-XE Gaming WIFI, offers robust power delivery and effective cooling, making it well-equipped to handle the popular 3rd Gen AMD Ryzen™ and the latest AMD Ryzen™ 5000 (Zen 3 architecture) processors.

ROG Strix B550-XE Gaming WIFI provides robust power delivery and comprehensive cooling to handle the latest Ryzen processors. It also supports faster memory and superfast high-capacity storage, providing everything you need to create a PC that’s ready to play in the big leagues.

ROG Strix B550-XE Gaming WIFI features two onboard M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the latest AMD Ryzen processors. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.

ROG Strix B550-XE Gaming WIFI provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.

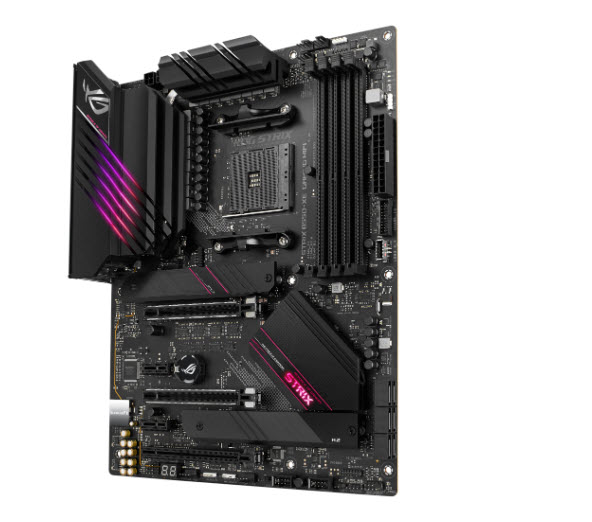

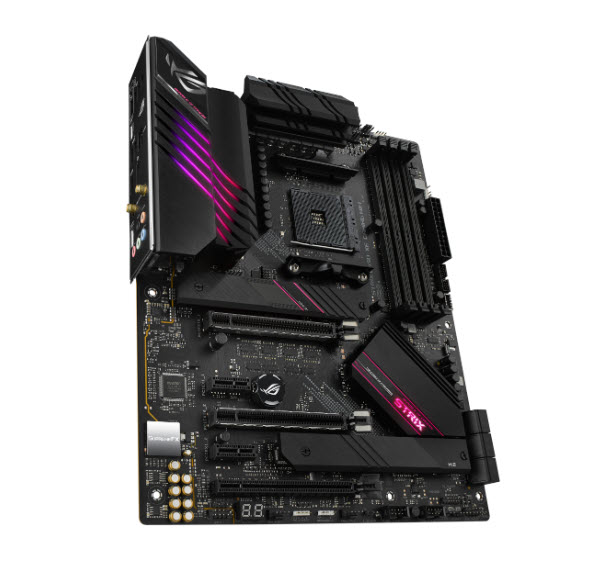

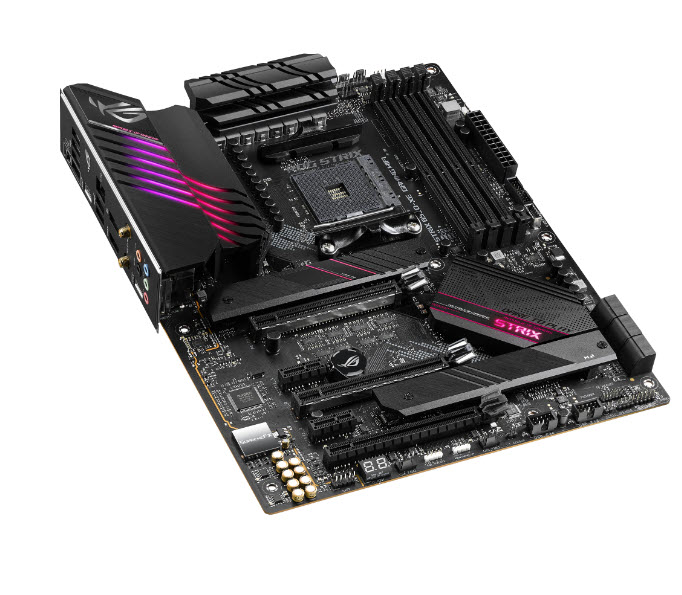

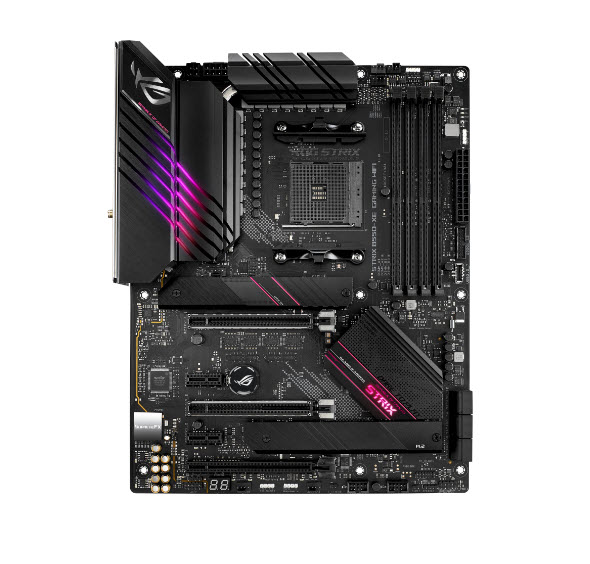

ROG Strix B550-XE Gaming WIFI embodies the ROG spirit with eye-catching aesthetics. Parallel strakes cutting across the upper-left to the bottom-right of the board add a ferocious look, while embedded Aura RGB LEDs illuminate the aluminum I/O shroud and Strix logo. The LEDs can be synced with other Aura-compatible hardware for a unified look. These new design features move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots.

Form Factor

• ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

CPU

• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Chipset

• AMD B550

Memory

• 4 x DIMM, Max. 128 GB, DDR4 4866(O.C) /4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000 /2800/2666/2400/2133 MHz Un-buffered Memory, AMD Ryzen™ 4000 G-Series Desktop Processors, 4 x DIMM, Max. 128 GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C) /4266(O.C.)/4133(O.C.)/4000(O.C.) /3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory, OptiMem II, Dual Channel Memory Architecture, ECC Memory (ECC mode) support varies by CPU.

Graphics

• 1 x HDMI 2.1(4K@60HZ), 1 x DisplayPort 1.2

Graphics

• Multi-GPU Support: Supports NVIDIA 2-Way SLI® Technology, Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors; AMD B550 Chipset; 1 x PCIe 3.0 x16 (x4 mode), 2 x PCIe 3.0 x1, 2 x PCIe 4.0 x16 (x16 or dual x8), 2 x PCIe 3.0 x16 (x16 or dual x8)

Storage

• AMD Ryzen™ 4000 G-Series Desktop Processors : AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports, 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode), AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), Support Raid 0, 1, 10, 6 x SATA 6Gb/s port(s)

LAN

• Intel® I225-V 2.5Gb Ethernet, ASUS LANGuard

Wireless Data Network

• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO, Intel® Wi-Fi 6 AX200, Supports dual band frequency 2.4/5 GHz, Supports channel bandwidth: HT20/HT40/HT80/HT160, Bluetooth v5.1

Audio

• Rear audio USB Type-C® port - Audio Shielding, ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A - Premium Japanese audio capacitors - Audio Cover - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback, Audio Feature : - SupremeFX Shielding™ Technology

USB Ports

• 3 x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x USB Type-C®), 1 x USB 2.0 port(s)(1 x audio USB Type-C® ), 4 x USB 2.0 port(s)(4 x Type-A), Rear USB Port ( Total 8 ), Front USB Port ( Total 7 ), 2 x USB 3.2 Gen 1 port(s), 4 x USB 2.0 port(s), 1 x USB 3.2 Gen 2 front panel connector port(s)

OS Support

• Windows® 10 64-bit

Internal I/O Ports

• 1 x AAFP connector, 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode), 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C), 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 1 x Thunderbolt header(s), 1 x Q-Code, 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 2 x Aura RGB Strip Header(s), 2 x Addressable Gen 2 header(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 6 x SATA 6Gb/s connector(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x System panel(s), 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s)

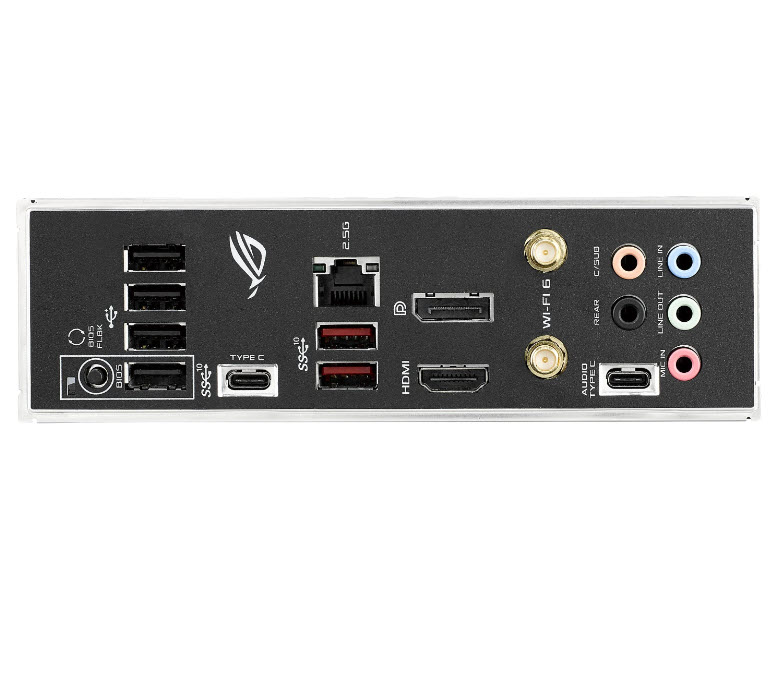

Back I/O Ports

• 3 x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C®), 5 x USB 2.0 (1 for audio USB Type-C®), 1 x BIOS FlashBack™ Button(s), 1 x Intel® I225-V 2.5Gb Ethernet, 1 x DisplayPort, 1 x HDMI, 5 x Audio jack(s), ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

Software Features

• ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software, ASUS Exclusive Software Features, Armoury Crate - Aura Creator - Aura Sync, Ai noise canceling microphone, AI Suite 3: - 5-way Optimization, TPU, EPU, DIGI+ VRM, Fan Xpert 4, Turbo APP - EZ update, WinRAR, UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode, FlexKey

Special Features

• Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s), ASUS Q-Design - ASUS Q-CODE - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot, ASUS Thermal Solution - Aluminum M.2 heatsink, ASUS EZ DIY -BIOS Flashback™ button -BIOS FlashBack™ LED -Clear CMOS header -Procool -Pre-mounted I/O shield - SafeSlot, Rear audio USB Type-C® connector

Accessories

• 1 x Hyper M.2 x16 Gen 4 Card, 5 x M.2 SSD screw package(s), 3 x M.2 Rubber Package(s), 1 x ROG audio USB Type-C® cable, 1 ROG key chain, 1 x Wi-Fi moving antenna, User´s manual, 4 x SATA 6Gb/s cable(s), 1 x Supporting DVD, 1 x ROG Strix stickers, 1 x Cable ties pack(s),, 1 x Extension Cable for RGB strips (80 cm), 1 x Extension cable for Addressable LED, 1 x ROG Thank you card
