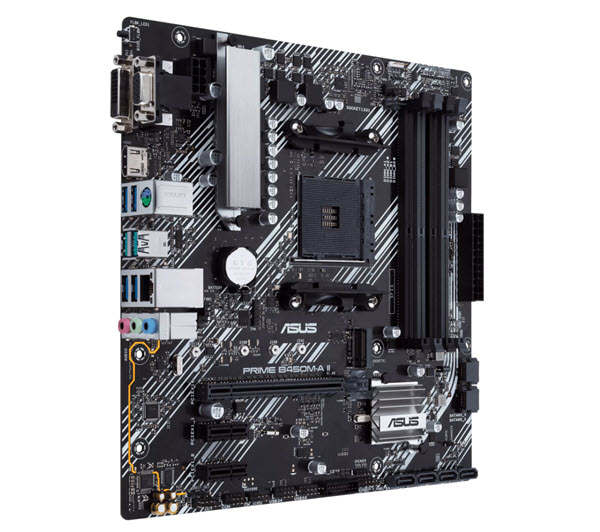

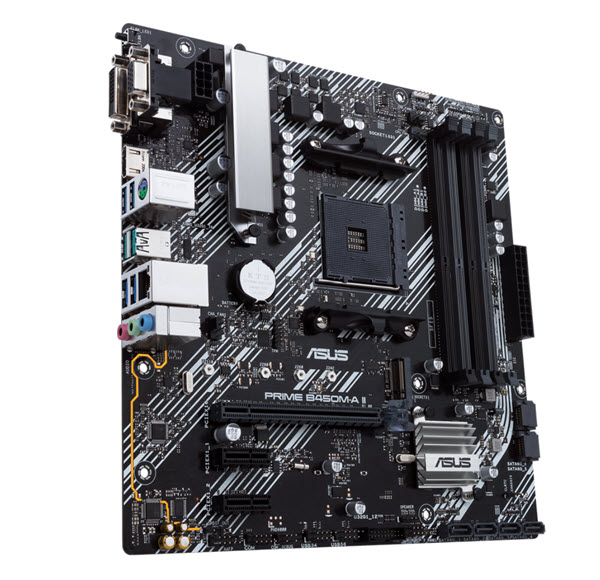

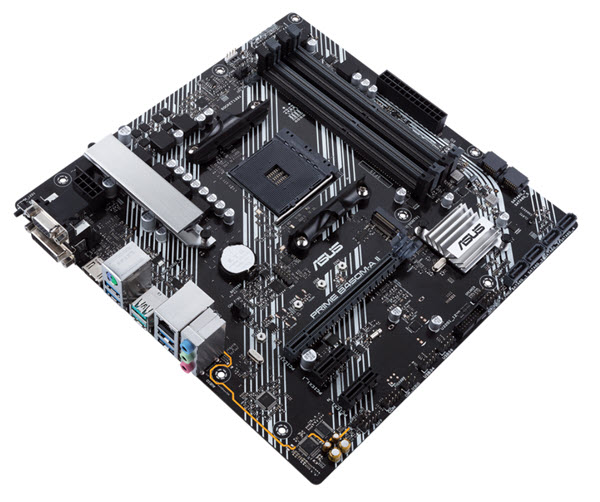

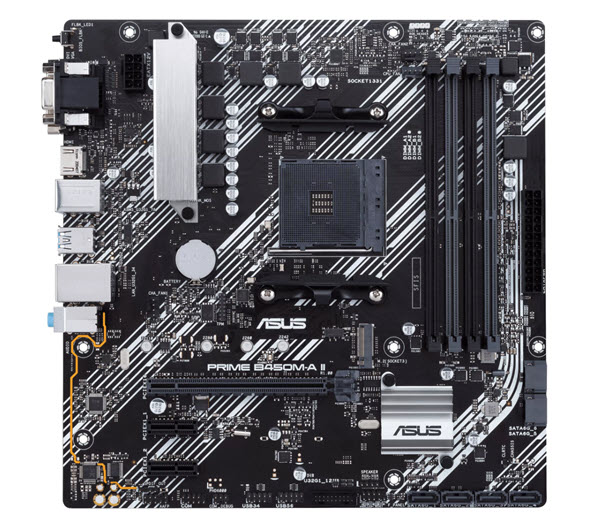

PRIME B450M-A II
ASUS Prime B450M II Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into AMD Ryzen™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime B450M II Series motherboard, you build smart, easy and affordably.
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B450M II motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.
Fan Xpert 2+ software provides comprehensive control over system fans. Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper- quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Prime B450M II series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Slot supports up to 22110 and data-transfer speed up to 32Gbps via x4 PCI Express® 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data.
Prime B450M II series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a unique personal look.
Form Factor
- mATX Form Factor, 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )
CPU
- AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Chipset
Memory
- 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors,
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory,
Dual Channel Memory Architecture,
ECC Memory (ECC mode) support varies by CPU.
Graphics
- Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *,
1 x D-Sub,
1 x DVI-D,
1 x HDMI 2.0b,
*Graphics specifications may vary between CPU types.
Expansion Slots
- 3rd/2nd/1st Gen AMD Ryzen™ Processors;
1 x PCIe 3.0 x16 (x16 mode),
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors;
1 x PCIe 3.0 x16 (x8 mode),
AMD Athlon™ with Radeon™ Vega Graphics Processors;
1 x PCIe 3.0 x16 (x4 mode),
AMD B450 chipset;
2 x PCIe 2.0 x1
Storage
- Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports,
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),
Athlon™ with Radeon™ Vega Graphics Processors : *1
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode),
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
2 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
AMD B450 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
- Realtek® RTL8111H, ASUS LANGuard
Audio
- Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
- Rear USB Port ( Total 6 );
2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A),
4 x USB 3.2 Gen 1 port(s)(4 x Type-A);
Front USB Port ( Total 6 ),
2 x USB 3.2 Gen 1 port(s),
4 x USB 2.0 port(s)
OS Support
- Windows® 10 64-bit, Windows® 7 64-bit
Internal I/O Ports
- 1 x CPU Fan connector(s) (1 x 4 -pin),
2 x Chassis Fan connector(s) (2 x 4 -pin),
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin),
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),
1 x SPI TPM header,
1 x COM port(s) connector(s),
6 x SATA 6Gb/s connector(s),
1 x S/PDIF out header(s),
1 x 24-pin EATX Power connector(s),
1 x 8-pin ATX 12V Power connector(s),
1 x Front panel audio connector(s) (AAFP),
1 x System panel(s),
1 x Clear CMOS jumper(s),
1 x COM port header,
1 x Speaker connector,
1 x RGB Header

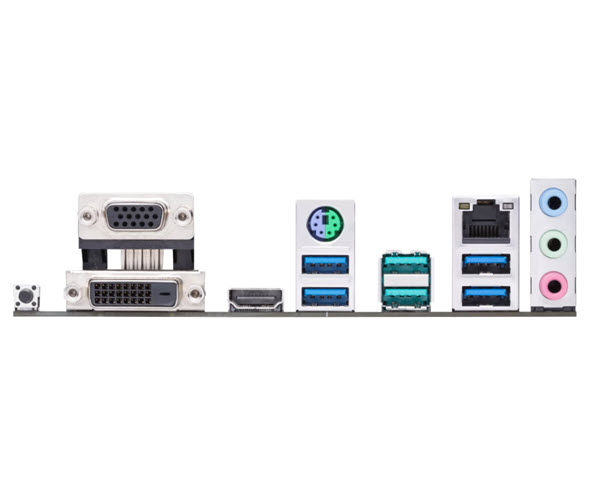

Back I/O Ports
- 1 x PS/2 keyboard/mouse combo port(s),
1 x DVI-D,
1 x D-Sub,
1 x HDMI,
1 x LAN (RJ45) port(s),
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A),
4 x USB 3.2 Gen 1 (blue) Type-A,
3 x Audio jack(s),
1 x BIOS FlashBack™ Button(s)
Software Features
- ASUS Exclusive Software,
Armoury Crate
- AURA Creator
- AURA Sync,
AI Suite 3
- Performance and Power Saving Utility,
TurboV EVO,
EPU,
DIGI+ VRM,
Fan Xpert 2+,
PC Cleaner
- EZ update
- System Information,
ASUS CPU-Z,
AI Charger,
ASUS EZ Installer,
DAEMON Tools,
Norton Anti-virus software (Free Trial for 60 days),
WinRAR,
UEFI BIOS,
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features
- ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O,,
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot,
ASUS Thermal Solution
- Aluminum heatsink design,
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED,
AURA Sync
- AURA RGB header,
ASUS Lighting Control
Accessories
- User´s manual,
I/O Shield,
2 x SATA 6Gb/s cable(s),
1 x M.2 Screw Package,
1 x Supporting DVD
