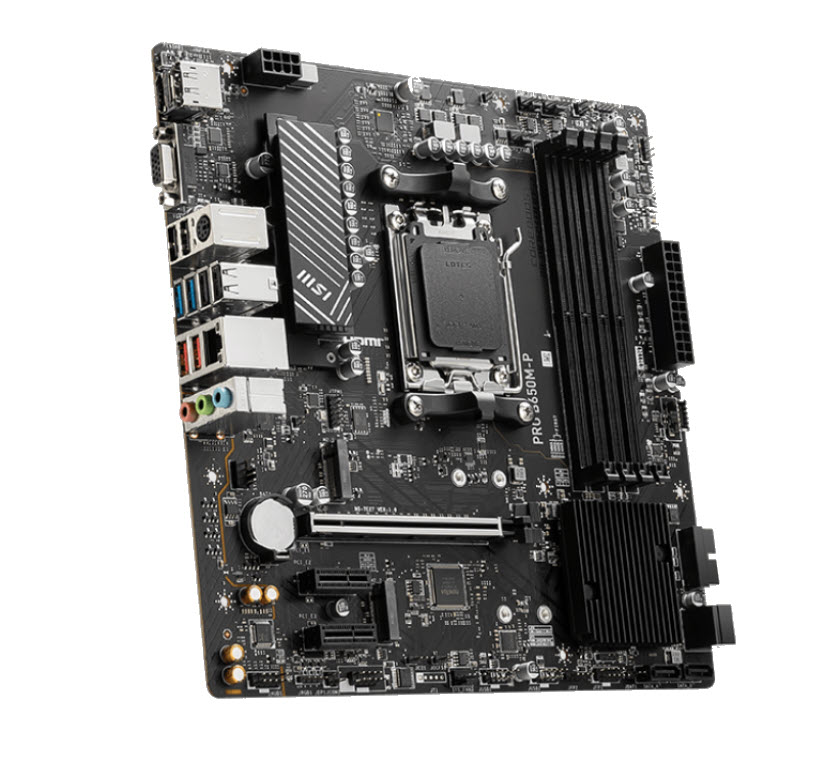

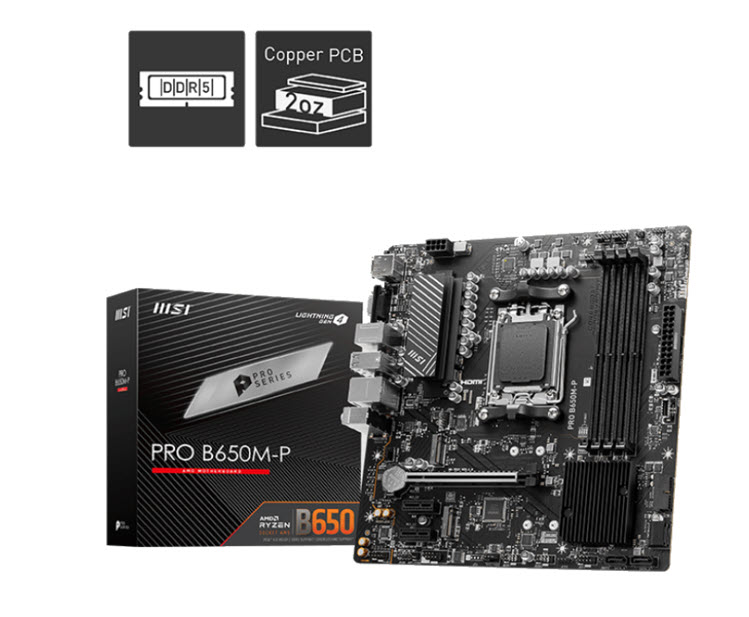

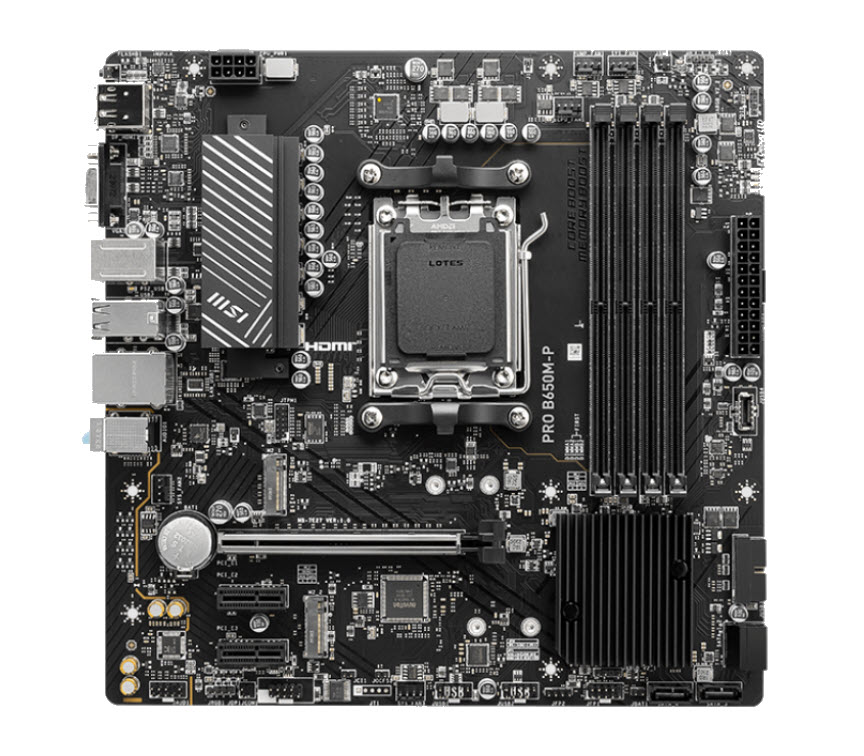

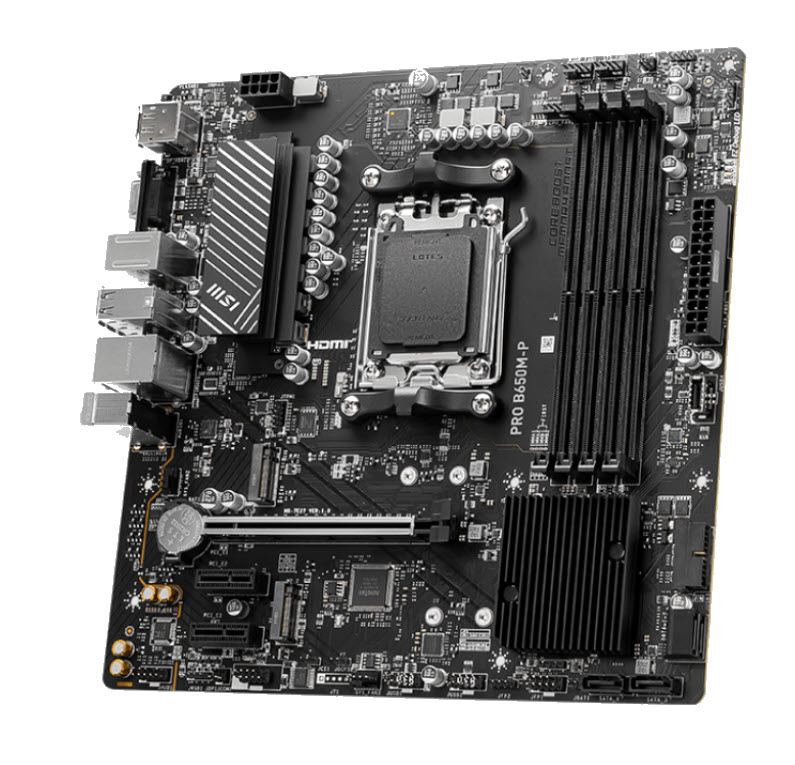

MSI PRO B650M-P - MATX, AM5, 4xDDR5, EXPO, 2xM.2, GbLAN, HDMI, DP, VGA
Product Type:
Motherboards
Type Detail:
AMD Socket AM5
Manufacturer:
MSI
Manufacturer #:
B650MP
Part Status:
Special Order Only
Milwaukee PC SKU:
264717
Price:
$129.99

Quick Tech Specs

Processor Manufacture: AMD
Socket: AM5
Chipset Manufacture: AMD / B650
Form Factor: Micro ATX
Number of Memory Slots: 4 Slots
Memory Type: DDR5
Max Memory: 192GB
PCI Express x16 Slots: 1 Slots
PCI Express x1 Slots: 2 Slots
RAID Support: RAID 0/1/10 / RAID 0 and RAID 1 for M.2
Sata 6 Gbits/s Ports (3.0/3.1): 4 Ports
M.2 Slots: 2 Slots
NVMe Support: Yes
USB 3.x Ports (3.0 or higher): 4 Ports
Network Ports: 2.5 Gigabit
USB 2.0 Ports: 4 Ports
Display Ports: 1 Port
VGA Ports: 1 Port
HDMI Ports: 1 Ports


PRO B650M-P

Form Factor

  • mATX, 243.84mmx243.84mm

CPU

  • Supports AMD Ryzen™ 7000 Series Desktop Processors, Socket AM5

Chipset

  • AMD B650

Memory

  • 4 x DDR5, Maximum Memory Capacity 192 GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports AMD EXPO

Graphics

  • 1 x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz, 1 x DisplayPort, Supports DP 1.4, maximum resolution of 4K 60Hz, 1 x VGA,, Support VGA, maximum resolution of 1920x1200 60Hz

Expansion Slots

  • 1 x PCI-E x16 slot, 2 x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

  • 2 x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 4 x SATA 6G, Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

LAN

  • Realtek® 8125BG 2.5G LAN

Audio

  • Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

USB Ports

  • 4 x USB 2.0 (Rear), 4 x USB 2.0 (Front), 2 x USB 3.2 Gen1 Type A (Rear), 2 x USB 3.2 Gen1 Type A (Front), 2 x USB 3.2 Gen2 Type A (Rear), 1 x USB 3.2 Gen2 Type C (Front)

OS Support

  • Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

  • 1 x Power Connector(ATX_PWR), 1 x Power Connector(CPU_PWR), 1 x CPU Fan, 1 x Pump Fan, 3 x System Fan, 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x Com Port (JCOM), 2 x Addressable V2 RGB LED connector (JARGB_V2), 2 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0), 4 x USB 2.0 ports, 2 x USB 3.2 Gen1 Type A ports, 1 x USB 3.2 Gen2 Type C ports

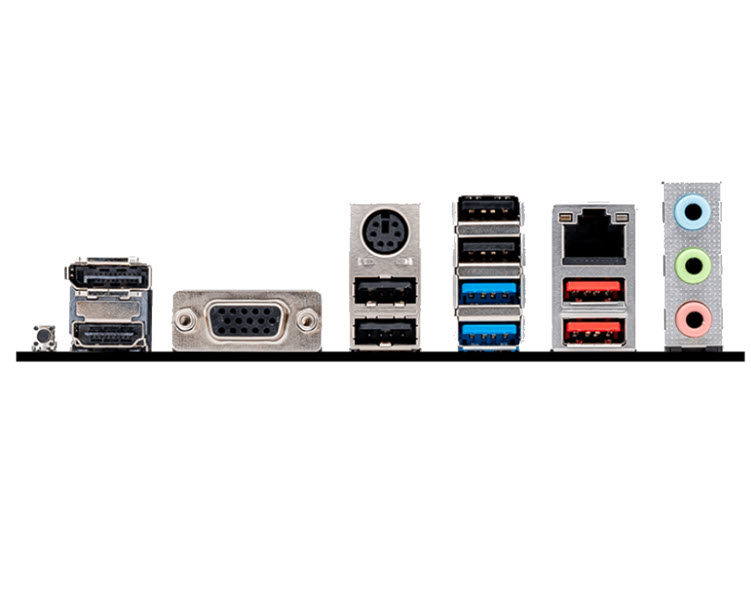

Back I/O Ports

  • DP, VGA, Keyboard/Mouse, 4 x USB 2.0, 2.5G LAN, 3 x Audio Connections, Flash BIOS Button, HDMI, 2 x USB 3.2 Gen 1 5Gbps Type-A, 2 x USB 3.2 Gen 2 10Gbps Type-A

LED FEATURE

  • 4 x EZ Debug LED
