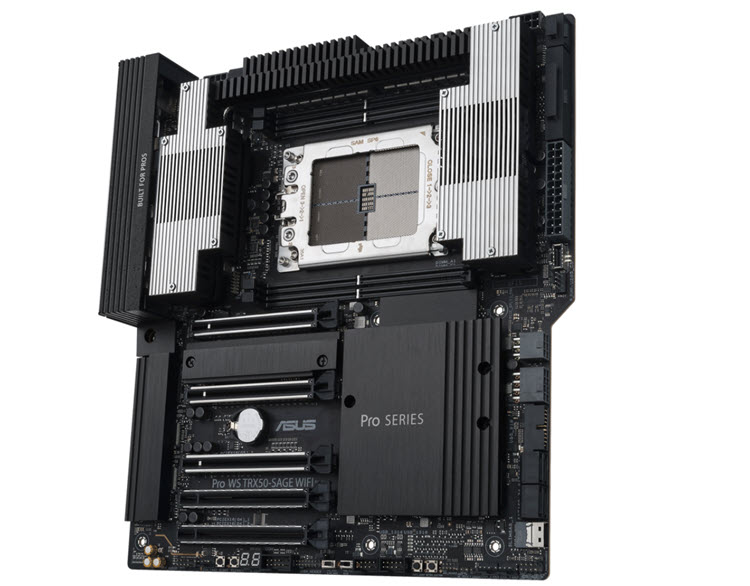

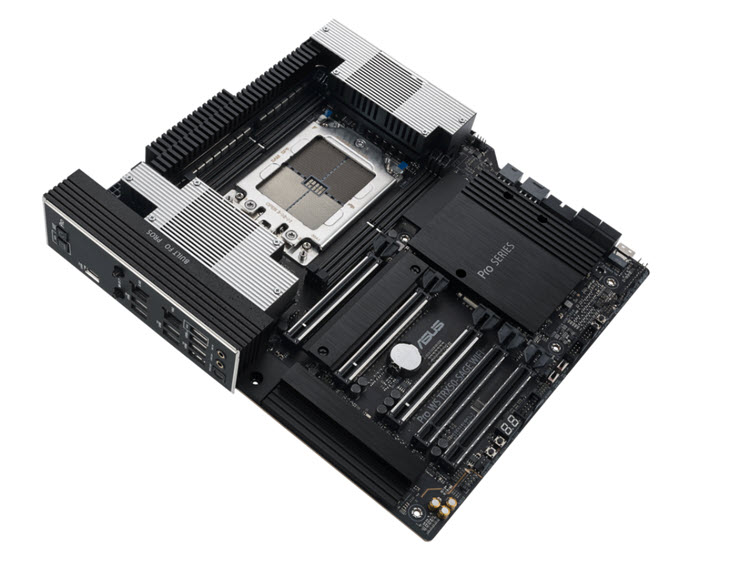

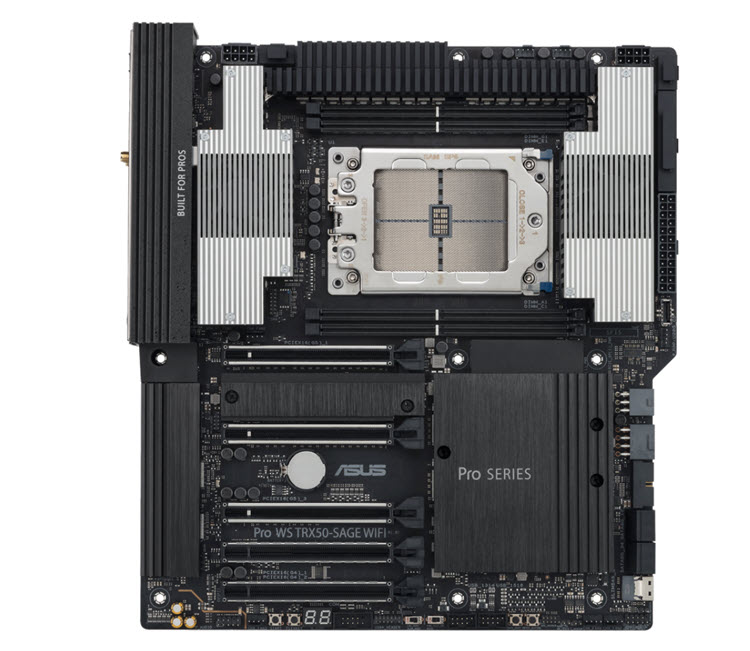

Pro WS TRX50-SAGE WIFI

The Pro WS TRX50-SAGE WIFI motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and more. Thirty-six power stages fuel AMD Ryzen Threadripper™ PRO 7000 WX-series and AMD Ryzen Threadripper™ 7000 series processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.

With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling and heat pipes on the VRM heatsinks, WiFi 7, USB 20Gbps port, SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI comes prepared for a wide array of scenarios and industries.

For AMD TR5 series workstations and high-end desktop (HEDT) models, AMD offers CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS TRX50-SAGE WIFI motherboard. Along with robust power delivery and advanced cooling modules, this board exhibits remarkable stability during overclocking. Hardware switches and optimized BIOS options on the motherboard provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation and high-end desktop computing.

The extruded aluminum heatsinks on the MOSFETs and chokes contain active cooling to greatly enhance thermal efficiency, while fins and hidden heat pipes also significantly improve heat dissipation.

The Pro WS TRX50-SAGE WIFI motherboard boasts a robust design featuring four R-DIMM DDR5 memory module slots with ECC support, a feature that improves the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.

Form Factor

• CEB Form Factor, 12 inch x 11 inch, (30.5 cm x 28.0 cm)

CPU

• AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors

Chipset

• AMD TRX50 Chipset

Memory

• 4 x DIMM slots, DDR5, ECC Registered Memory, 4 Channel Memory Architecture

Expansion Slots

• AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors, 2 x PCIe 5.0 x16 slots, 1 x PCIe 5.0 x16 slot(x8 mode), 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot(x4 mode)

Storage

• Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD TRX50 Chipset, M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, 1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device, * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.

LAN

• 1 x Marvell® AQtion 10Gb Ethernet, 1 x Intel® I226-LM 2.5Gb Ethernet

Wireless & Bluetooth

• Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 160MHz bandwidth, up to 2.8Gbps transfer rate. Bluetooth® v5.4

Audio

• Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback

USB Ports

• Rear USB (Total 9 ports); 1 x USB 20Gbps port (1 x USB Type-C®), 6 x USB 10Gbps ports (6 x Type-A ), 2 x USB 2.0 ports (2 x Type-A ), Front USB (Total 7 ports); 1 x USB 20Gbpsconnector (supports USB Type-C® with up to 27W PD/QC4+), 1 x USB 5Gbps header supports 2 additional USB 5G ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports

OS Support

• Windows® 11, Windows® 10 64-bit

Internal I/O Ports

• Fan and Cooling related; 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x W_PUMP+ header, 4 x 4-pin Chassis Fan headers, 2 x 4-pin VRM Fan header (with VRM FAN onboard), Power related; 2 x 24-pin Main Power connectors, 2 x 8-pin +12V Power connectors, 2 x 8-pin PCIe to CPU power connectors, 1 x 6-pin PCIe Power connector, 1 x 8-pin PCIe Power connector, Storage related; 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports, 1 x SlimSAS port, USB; 1 x USB 20Gbps connector supports USB Type-C®, 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous; 1 x BMC header1 x COM Port header, 1 x USB4 header1 x FlexKey button, 1 x Front panel audio header (F_AUDIO), 1 x Start button, 1 x Safe boot button, 1 x ReTry button1 x LN2 mode jumper, 1 x Slow mode switch, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin system panel header, 1 x Chassis intrusion header, 1 x Thermal Sensor header

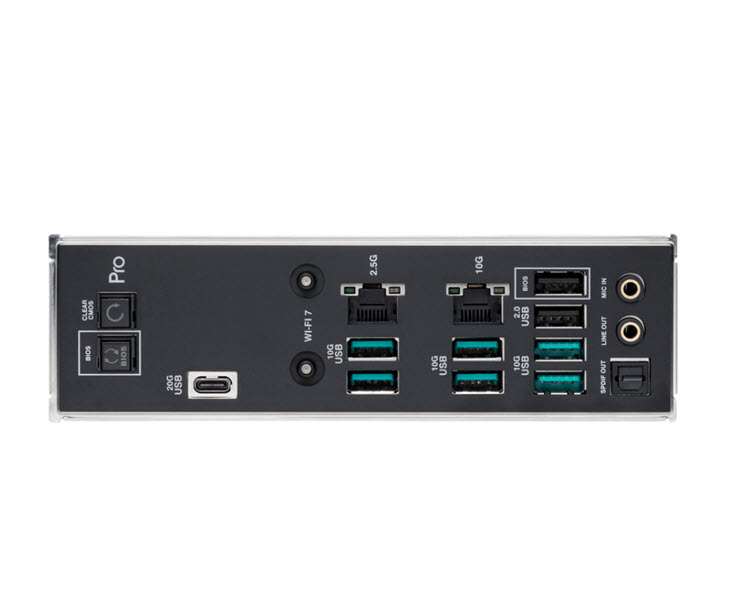

Back I/O Ports

• 1 x USB 20Gbps port (1 x USB Type-C®), 6 x USB 10Gbps ports (6 x Type-A), 2 x USB 2.0 port (2 x Type-A), 1 x Wi-Fi Module, 1 x Marvell® AQtion 10Gb Ethernet port, 1 x Intel® 2.5Gb Ethernet port, 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button

Software Features

• ASUS Exclusive Software, Armoury Crate- Fan Xpert 4, ASUS CPU-Z, IT Management software supported - ASUS Control Center Express(ACCE), Adobe Creative Cloud (Free Trial), Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial), UEFI BIOS, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash UtilityFlexKey

Special Features

• ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-SlotASUS Thermal Solution - M.2 heatsink and onboard thermal pads - VRM heatsink design with active fans, ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMMBespoke, Motherboard Design & Business Focused Features - 24/7 Reliability

Accessories

• Cables: 2 x SATA 6Gb/s cables, 1 x CPU 8-pin to PCIe 8-pin adapter cable package, 1 x Thermistor cable pack, Miscellaneous; 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas, 1 x M.2 Q-Latch package(2 in 1), 2 x M.2 Rubber Packages, 1 x Q-connectorDocumentation, 1 x ACC Express Activation Key Card, 1 x QSG
