MAG B760M MORTAR WIFI II

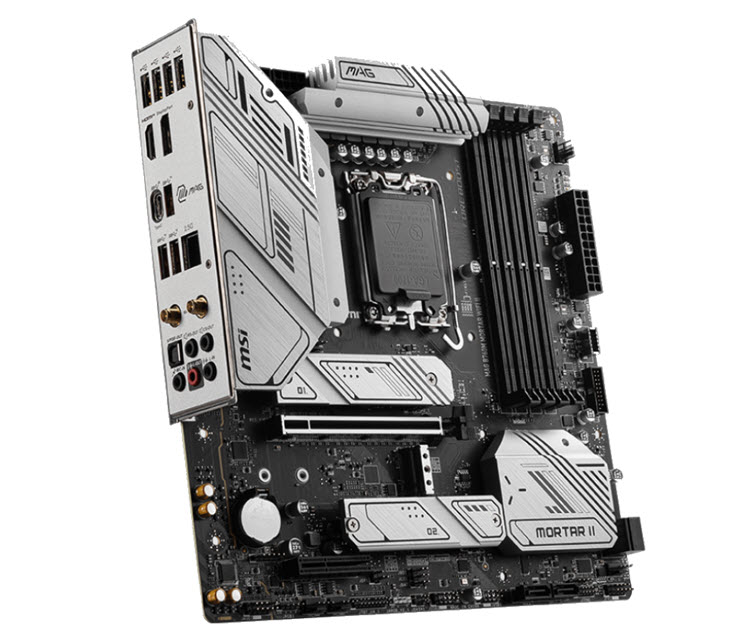

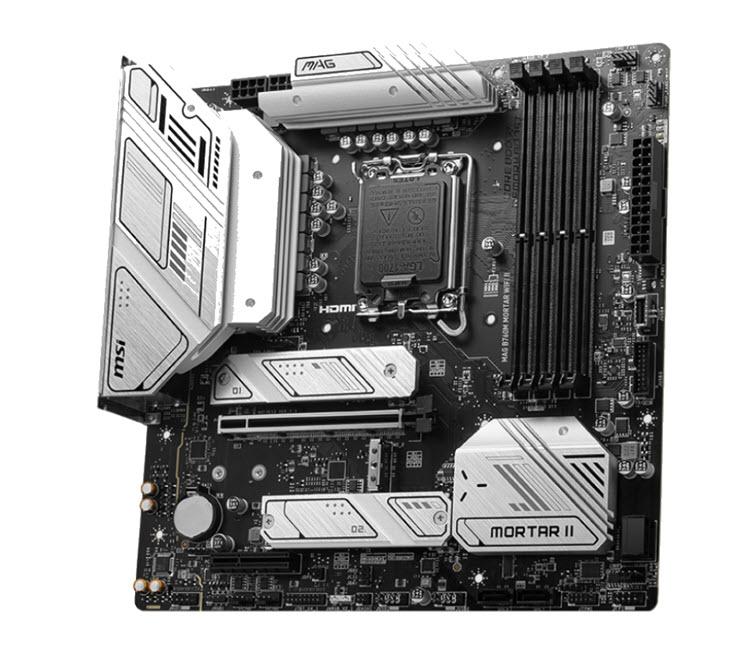

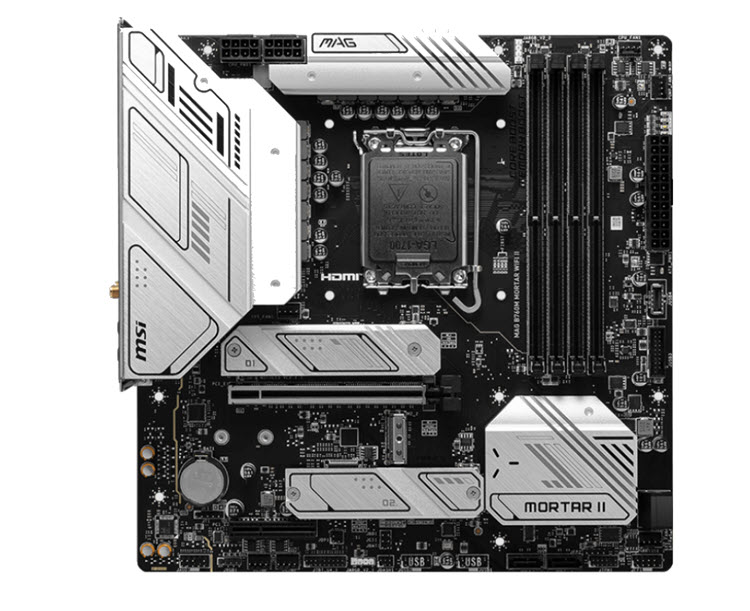

MAG B760M MORTAR WIFI II is designed for gamers, providing a stable, solid, and durable foundation for compact mATX PC builds. Coming up with Wi-Fi 6E, 2.5G LAN, DDR5, PCIe 5.0 solutions, and 3 M.2 connectors, it's ready for Intel® 14th Gen and 13th Gen Core processors.

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

M.2 Shield Frozr - Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Heavy Plated VRM Heatsink - The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad - High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

Form Factor

• mATX, 243.84mmx243.84mm

CPU

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA1700

Chipset

• INTEL B760

Memory

• 4x DDR5, Maximum Memory Capacity 192GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC) / 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC) / 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC) / 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile

Graphics

• 1 x HDMI™, Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*, 1 x DisplayPort, Support DP 1.4, maximum resolution of 4K 60Hz*, *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

• 1 x PCI-E x16 slot, Supports x16/x4, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

Storage

• 3 x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices, 4 x SATA 6G, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

LAN

• Realtek® 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH

• Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA

Audio

• Realtek® ALC897 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output

USB Ports

• 4 x USB 2.0 (Rear), 4 x USB 2.0 (Front), 2 x USB 3.2 Gen1 Type A (Front), 3 x USB 3.2 Gen2 Type A (Rear), 1 x USB 3.2 Gen2 Type C (Front), 1 x USB 3.2 Gen2x2 Type C (Rear)

OS Support

• Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

• 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x CPU Fan, 1 x Pump Fan, 4 x System Fan, 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x Tuning Controller connector(JDASH), 2 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB), 1 x TPM pin header(Support TPM 2.0), 4 x USB 2.0 ports, 2 x USB 3.2 Gen1 Type A ports, 1 x USB 3.2 Gen2 Type C ports, 1 x USB4 card connector (JTBT_U4_1, supports RTD3)

Back I/O Ports

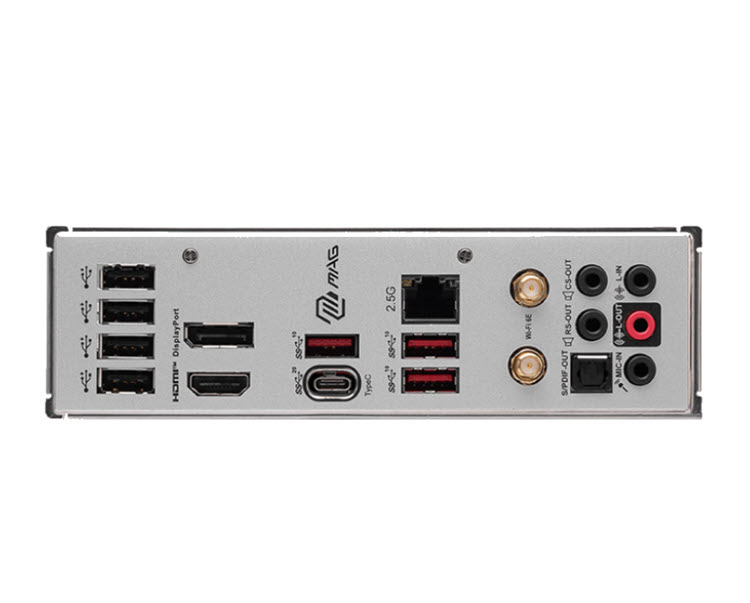

• DisplayPort 1.4, 3 x USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN Port, Wi-Fi / Bluetooth, 5 x HD Audio Connectors, 4 x USB 2.0, HDMI™ 2.1 Port, 1 x USB 3.2 Gen 2x2 20Gbps Type-C

LED FEATURE

• 4 x EZ Debug LED
