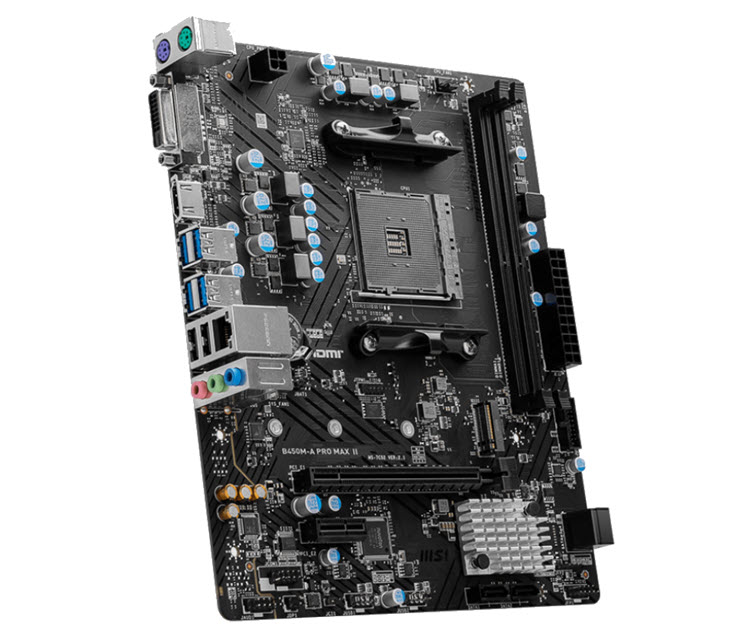

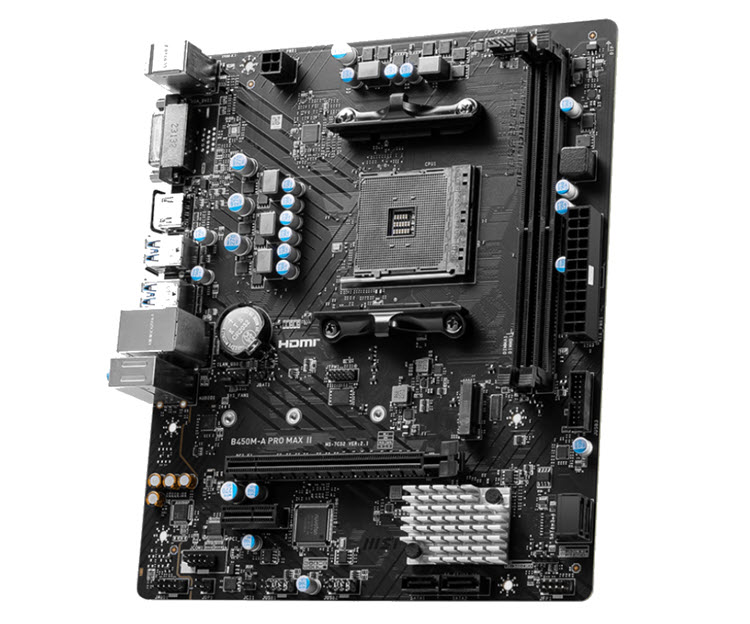

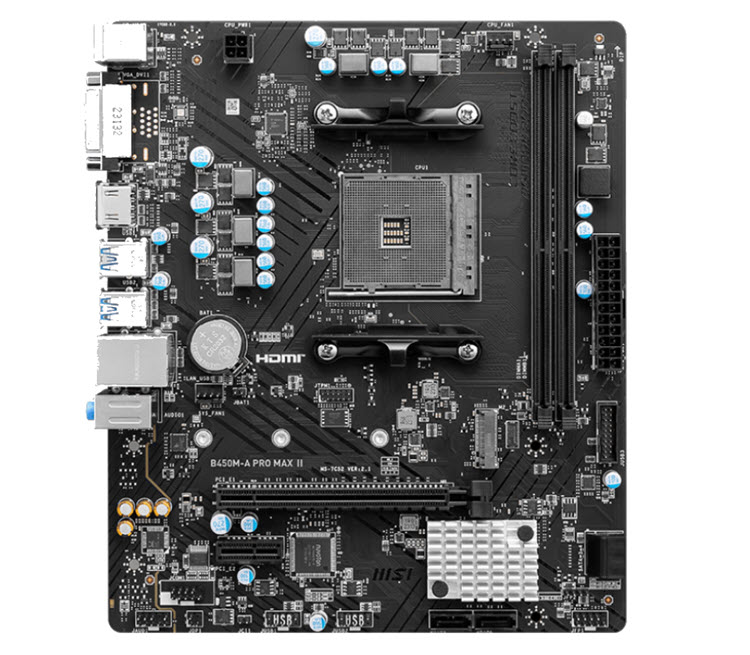

MSI B450M-A PRO MAX II - MATX, B450, AM4, 2xDDR4, 1xM.2, 2.5GbLAN, HDMI, DVI

Product Type:

Motherboards

Type Detail:

AMD Socket AM4

Manufacturer:

MSI

Manufacturer #:

B450MAPROMAXII

Part Status:

Special Order Only

Milwaukee PC SKU:

264749

Price:

$87.99

Quick Tech Specs

Processor Manufacture:	AMD / Ryzen 5000 to 1000 Series
Socket:	AM4
Chipset Manufacture:	AMD / B450
Form Factor:	Micro ATX
Number of Memory Slots:	2 Slots
Max Memory:	64GB
Memory Type:	DDR4
PCI Express x16 Slots:	1 Slots
PCI Express x1 Slots:	1 Slots
RAID Support:	RAID 0/1/10 / SATA
Sata 6 Gbits/s Ports (3.0/3.1):	4 Ports
M.2 Slots:	1 Slots
Network Ports:	2.5 Gigabit
USB 3.x Ports (3.0 or higher):	4 Ports
USB 2.0 Ports:	2 Ports
DVI Ports:	1 Port
HDMI Ports:	1 Ports

B450M-A PRO MAX II

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series desktop processors and Athlon™ with Radeon™ Vega Graphics desktop processors

MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.

MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.

Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink.

Form Factor

mATX, 200mm x 236mm

CPU

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors, Socket AM4

Chipset

AMD B450

Memory

2 x DDR4, Maximum Memory Capacity 64 GB, Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE), Supports Dual-Channel mode, Supports non-ECC, UDIMM memory, Supports ECC UDIMM memory (non-ECC mode), Supports un-buffered memory

Graphics

1 x HDMI™, Support HDMITM 2.0b, maximum resolution of 4K 60Hz, 1 x DVI, Support DVI-D, maximum resolution of 1920x1200 60Hz

Expansion Slots

1 x PCI-E x16 slot, 1 x PCI-E x1 slot, PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)

Storage

1 x M.2, M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices, 4 x SATA 6G, RAID - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

LAN

Realtek® 8125 2.5Gbps LAN controller

Audio

Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

USB Ports

2 x USB 2.0 (Rear), 4 x USB 2.0 (Front), 4 x USB 3.2 Gen1 Type A (Rear), 2 x USB 3.2 Gen1 Type A (Front)

OS Support

Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

1 x Power Connector(ATX_PWR), 1 x Power Connector(CPU_PWR), 1 x CPU Fan, 1 x System Fan, 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x Com Port (JCOM), 1 x TPM pin header(Support TPM 2.0), 4 x USB 2.0 ports, 2 x USB 3.2 Gen1 Type A ports

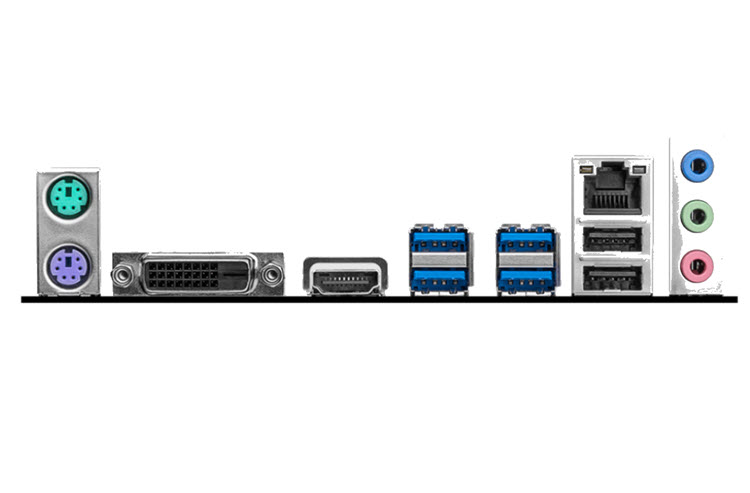

Back I/O Ports

Keyboard/Mouse, DVI-D, HDMI™, 4 x USB 3.2 Gen 1 5Gbps (Type-A), 2.5G LAN, 3 x Audio connectors, 2 x USB 2.0
