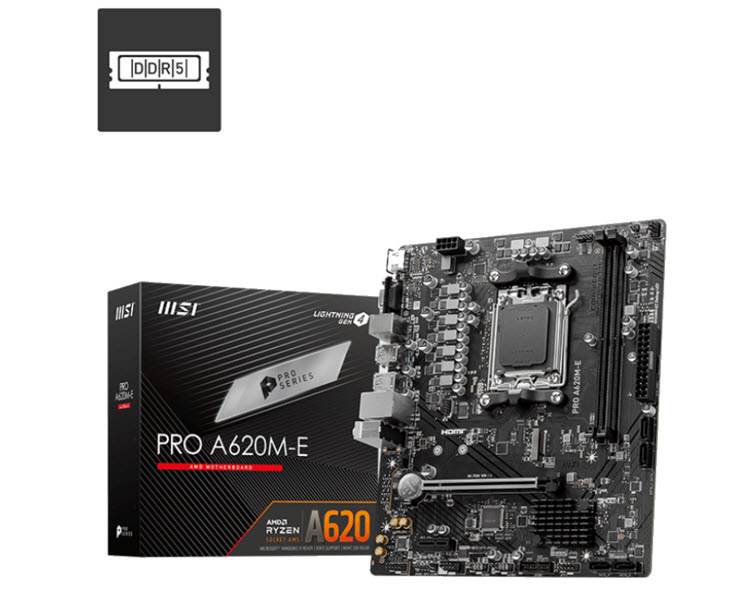

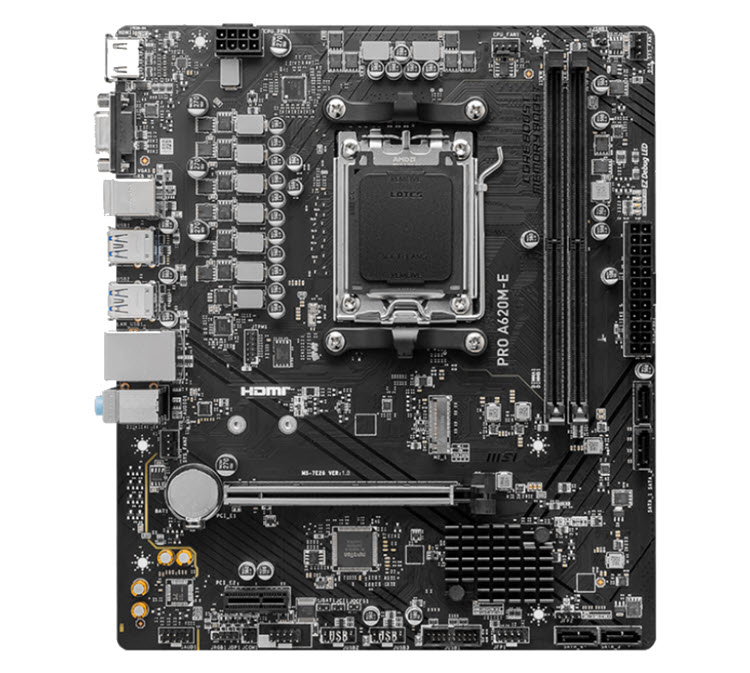

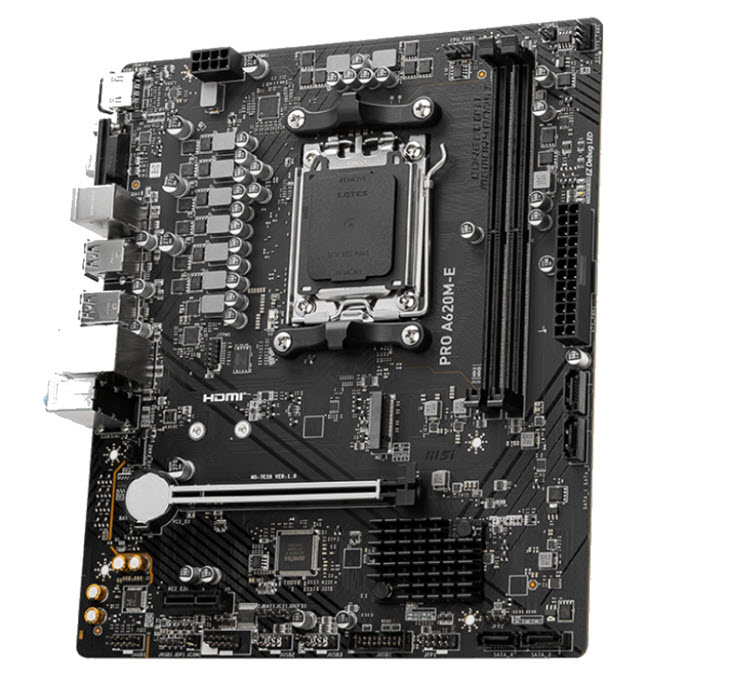

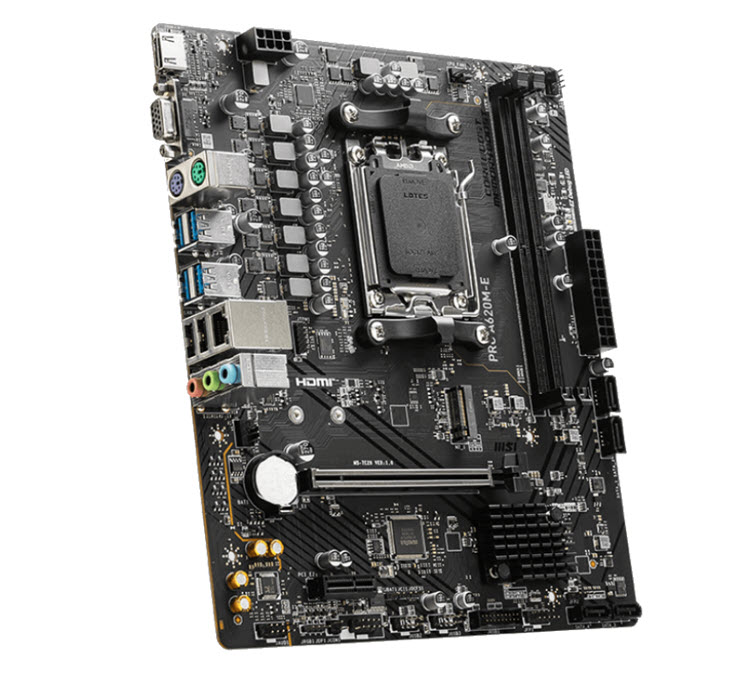

PRO A620M-E
PRO A620M-E is designed with tons of flexible tools with DDR5 memory version.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Form Factor
CPU
-
Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors, Socket AM5
Chipset
Memory
-
2 x DDR5, Maximum Memory Capacity 96 GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)
/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)
/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz,
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6000+ MHz,
Supports Dual-Channel mode,
Supports non-ECC, un-buffered memory,
Supports AMD EXPO
Graphics
-
1 x HDMI™,
Support HDMITM 2.1, maximum resolution of 4K 60Hz*,
1 x VGA,
Support VGA, maximum resolution of 2048 x 1536 50Hz, 2048 x 1280 60Hz, 1920 x 1200 60Hz,
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots
-
1 x PCI-E x16 slot,
1 x PCI-E x1 slot,
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU),
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
-
1 x M.2,
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices,
4 x SATA 6G, Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices.
LAN
- Realtek® RTL8111H Gigabit LAN
Audio
-
Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
USB Ports
-
2 x USB 2.0 (Rear),
4 x USB 2.0 (Front),
4 x USB 3.2 Gen1 Type A (Rear),
2 x USB 3.2 Gen1 Type A (Front)
OS Support
- Windows® 11 64-bit, Windows® 10 64-bit
Internal I/O Ports
-
1 x Power Connector(ATX_PWR),
1 x Power Connector(CPU_PWR),
1 x CPU Fan,
2 x System Fan,
2 x Front Panel (JFP),
1 x Chassis Intrusion (JCI),,
1 x Front Audio (JAUD),
1 x Com Port (JCOM),
1 x RGB LED connector(JRGB),
1 x TPM pin header(Support TPM 2.0),
4 x USB 2.0 ports,
2 x USB 3.2 Gen1 Type A ports

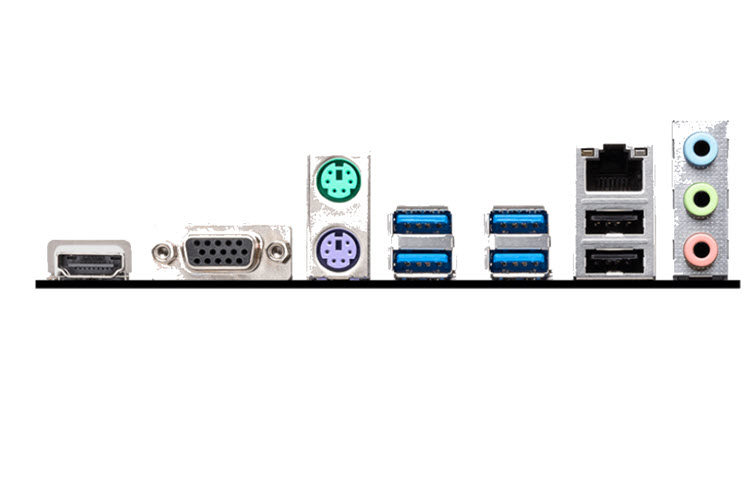

Back I/O Ports
- HDMI™, VGA, Keyboard/Mouse, 4 x USB 3.2 Gen 1 5Gbps (Type-A), LAN port, 3 x Audio connectors, 2 x USB 2.0
LED FEATURE
