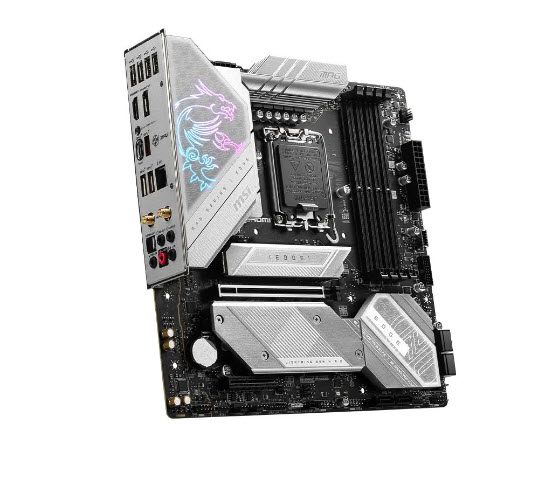

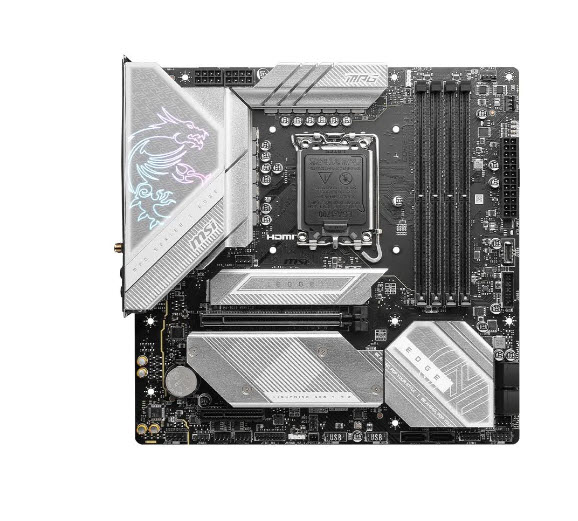

MPG B760M EDGE TI WIFI

MPG B760M EDGE TI WIFI is covered with a silver-white color scheme for compact white PC build lovers to show off different personalities. It is also powerful because it features Wi-Fi 6E solution, optimized DDR5 circuit, PCIe 5.0 solution, and exclusive Screwless M.2 Shield Frozr, and this is the best white B760 mATX motherboard for Intel® Core 14th Gen and 13th Gen processors.

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

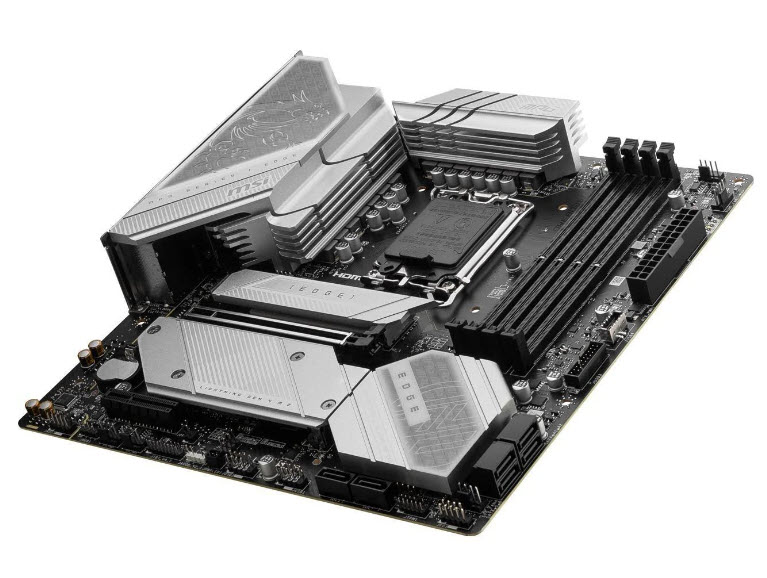

Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

M.2 Shield Frozr - Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Heavy Plated VRM Heatsink - The VRM heatsink covers the upperMOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad - High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Form Factor

• mATX, 243.84mmx243.84mm

CPU

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA1700

Chipset

• INTEL B760

Memory

• 4 x DDR5 UDIMM, Maximum Memory Capacity 192 GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC) / 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC) / 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC) / 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel® Extreme Memory Profile

Graphics

• 1 x HDMI™, Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*, 1 x DisplayPort, Support DP 1.4, maximum resolution of 8K 60Hz*, *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

• 1 x PCI-E x16 slot, Supports x16/x4, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

Storage

• 3 x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280, devices 6 x SATA 6G, RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

LAN

• Realtek® 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH

• Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA

Audio

• Realtek® ALC897 Codec, 7.1-Channel High Performance Audio, Supports S/PDIF output

USB Ports

• 4 x USB 2.0 (Rear), 4 x USB 2.0 (Front), 2 x USB 3.2 Gen1 Type A (Front), 3 x USB 3.2 Gen2 Type A (Rear), 1 x USB 3.2 Gen2 Type C (Front), 1 x USB 3.2 Gen2x2 Type C (Rear)

OS Support

• Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

• 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x CPU Fan, 1 x Pump Fan, 4 x System Fan, 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x TBT connector (JTBT, supports RTD3), 1 x Tuning Controller connector(JDASH), 2 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB), 1 x TPM pin header(Support TPM 2.0), 4 x USB 2.0 ports, 2 x USB 3.2 Gen1 Type A ports, 1 x USB 3.2 Gen2 Type C ports, 1 x USB4 card connector (JTBT_U4_1, supports RTD3)

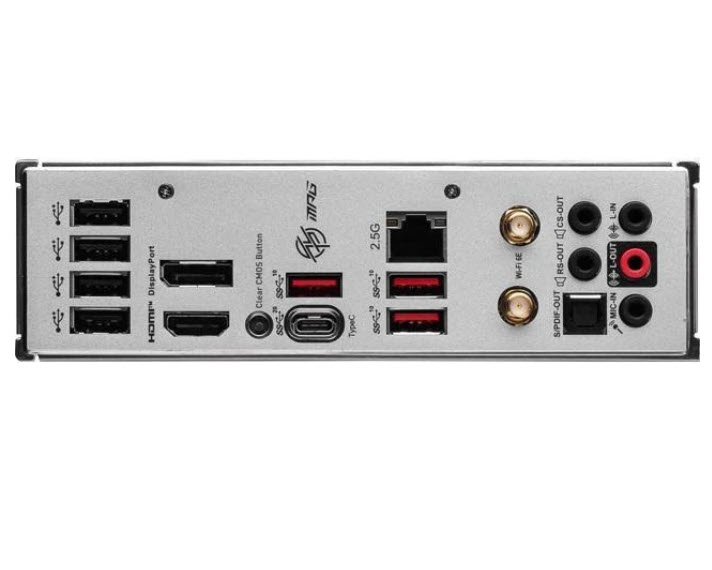

Back I/O Ports

• 4 x USB 2.0, DisplayPort 1.4, 3 x USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN Port, Wi-Fi / Bluetooth Antenna, 5 x HD Audio Connectors, HDMI™ 2.1 Port, Clear CMOS Button, 1 x USB 3.2 Gen 2x2 20Gbps Type-C, Optical S/PDIF OUT

LED FEATURE

• 4 x EZ Debug LED
