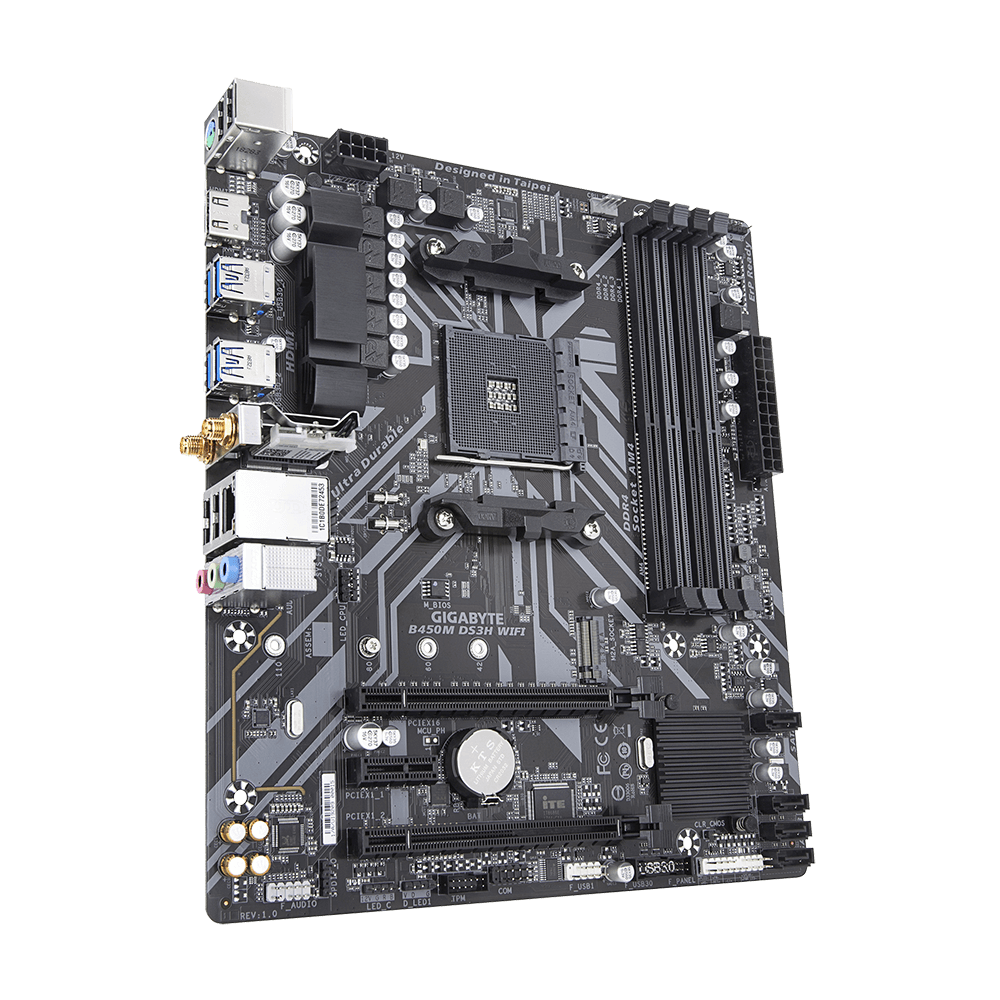

B450M DS3H WIFI

GIGABYTE motherboards are ready to support the latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems.

GIGABYTE 400-series motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

Realtek Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Form Factor

• Micro ATX Form Factor; 24.4cm x 21.5cm

CPU

• AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Chipset

• AMD B450

Memory

• 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory, Dual channel memory architecture, Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules

Graphics

• Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2.(Note) Maximum shared memory of 16 GB, (Note) Actual support may vary by CPU.

Expansion Slots

• 1 x PCI Express x16 slot, running at x16 (PCIEX16), (The PCIEX16 slot conforms to PCI Express 3.0 standard.), 1 x PCI Express x16 slot, running at x1 (PCIEX1_2), 1 x PCI Express x1 slot,

Storage

• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support), * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. 4 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, and RAID 10

LAN

• Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Wireless Communication module

• AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE), WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band, BLUETOOTH 5.0, Support for 11ac wireless standard

Audio

• Realtek®Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out

USB Ports

• CPU: 4 x USB 3.1 Gen 1 ports on the back panel, Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header, 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

OS Support

• Windows 10 64-bit, Support for Windows 7 64-bit, * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Internal I/O Ports

• 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x CPU cooler LED strip/RGB LED strip header, 1 x RGB LED strip header, 2 x addressable LED strip headers, 1 x USB 3.1 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x serial port header, 1 x Clear CMOS jumper

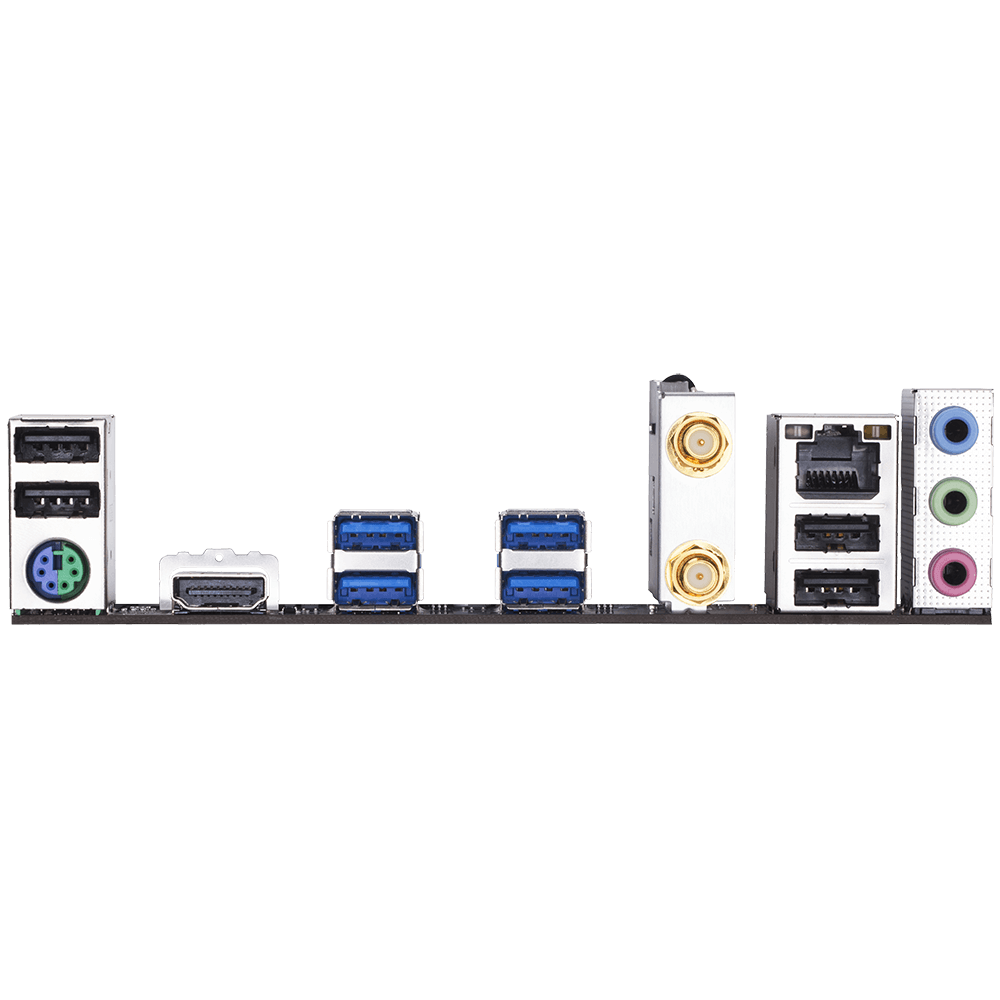

Back I/O Ports

• 1 x PS/2 keyboard/mouse port, 1 x HDMI port, 4 x USB 3.1 Gen 1 ports, 4 x USB 2.0/1.1 ports, 2 x SMA antenna connectors (1T1R), 1 x RJ-45 port, 3 x audio jacks

H/W Monitoring

• Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control, * Whether the fan speed control function is supported will depend on the cooler you install.

Unique Features

• Support for APP Center, * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Support for Q-Flash, Support for Xpress Install

I/O Controller

• iTE® I/O Controller Chip

BIOS

• 1 x 128 MB flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Bundled Software

• Norton® Internet Security (OEM version), cFosSpeed
