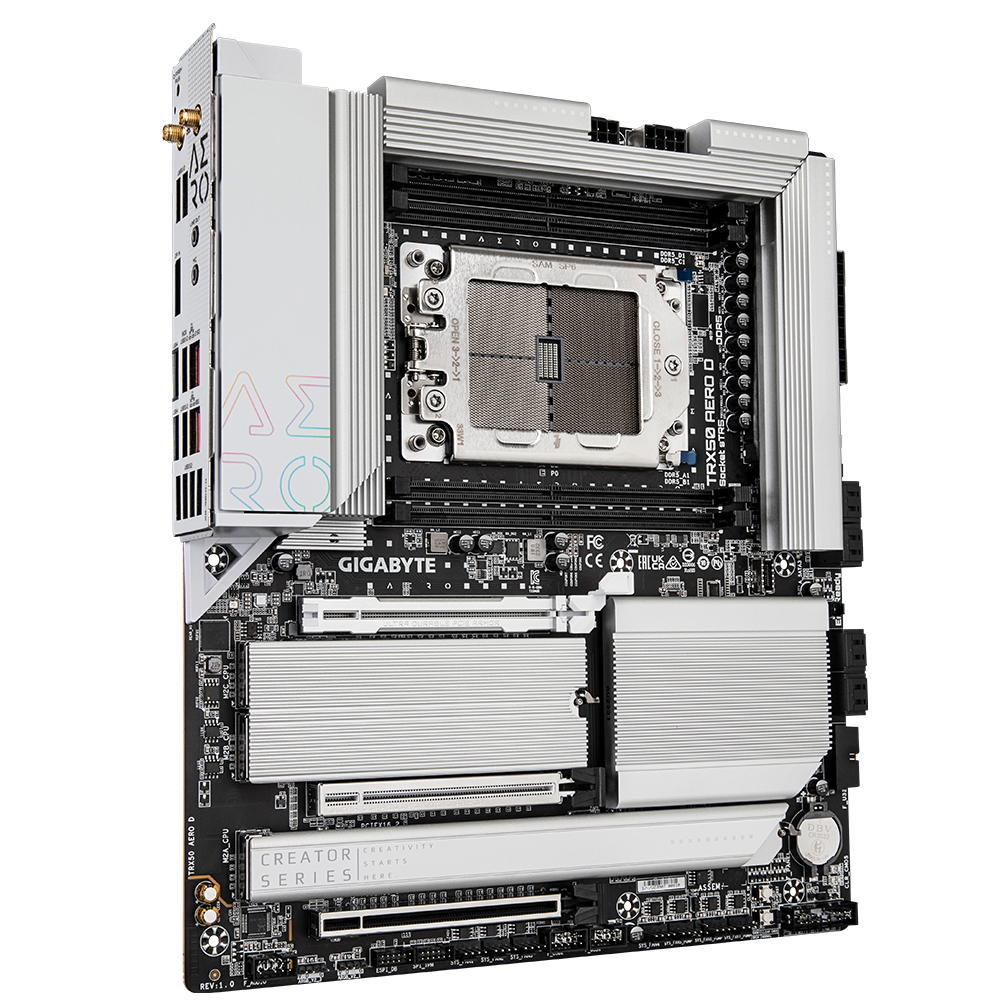

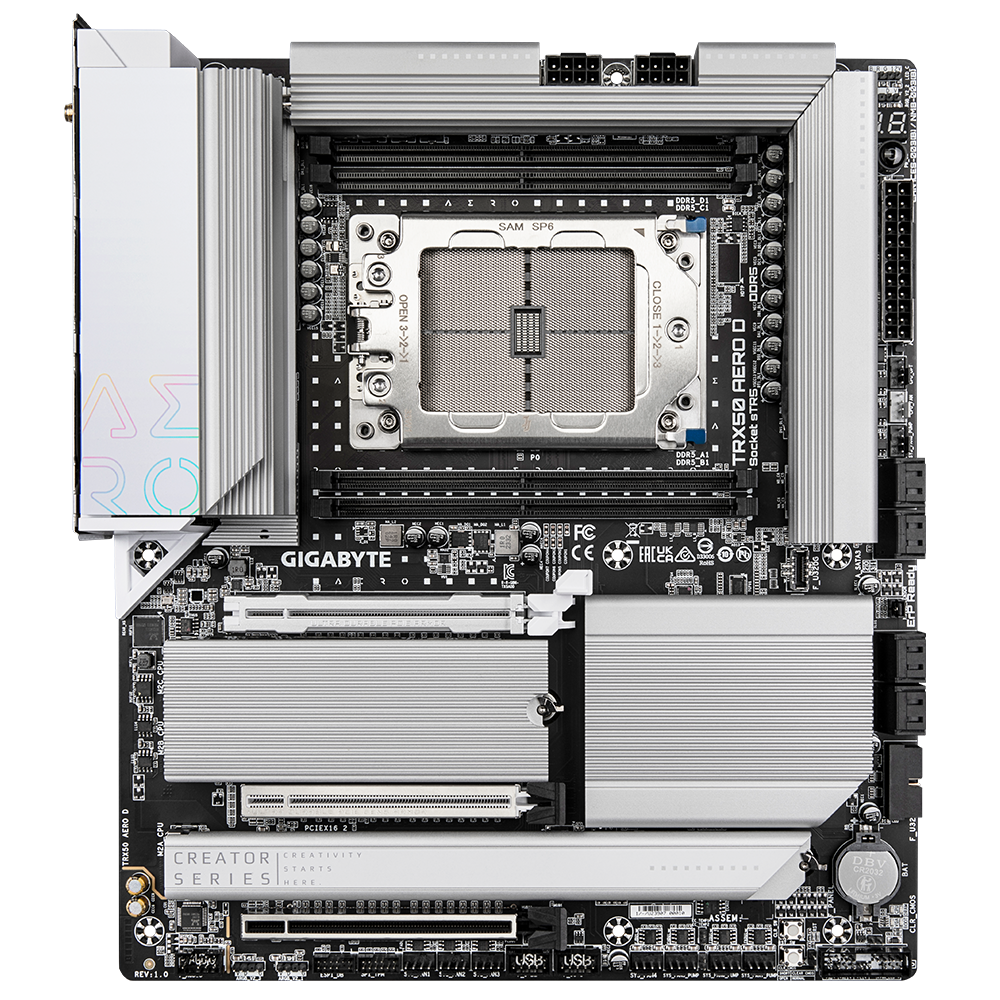

TRX50 AERO D

The TRX50 AERO D motherboard is designed for content creators, enthusiasts, and AI professionals. Equipped with the all-digital 16+8+4 phases power design of the Infineon multiphase PWM controller, the TRX50 AERO D unleashes exceptional performance of the new generation AMD Ryzen™ Threadripper™ CPU, while providing the best stability under heavy workloads and committing the most powerful HEDT platform to builders.

With enlarged full metal thermal design, TRX50 AERO D motherboard birngs you exceptional performance while keep the system cool and solid.

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

TRX50 AERO D supports the max. memory capacity of DDR5 RDIMM up to 1TB, which brings crucial advantage when running high-demand computing like video editing, 3D rendering, high-resolution content creation, simulation, AI training, and etc..

GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. TRX50 AERO D motherboard is built to last longer and stand stronger.

TRX50 AERO D signifies our dedication to BIOS optimization. Through our community partnership, we're making next-gen performance more user-friendly.

Form Factor

• E-ATX Form Factor; 30.5cm x 26.4cm

CPU

• AMD Socket sTR5, support for: AMD Ryzen™ Threadripper™ PRO 7000 processors / AMD Ryzen™ Threadripper™ 7000 Series processors

Chipset

• AMD TRX50

Memory

• Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS) 4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory Quad channel memory architecture Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Graphics

• 1 x USB4® USB Type-C® port (DisplayPort), 1 x DisplayPort In port

Expansion Slots

• CPU: - 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2), * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot. - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)

Storage

• CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU), CPU+Chipset: - 8 x SATA 6Gb/s connectors, RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices

LAN

• Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) - Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)

Wireless Communication module

• Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.), Note: Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)

Audio

• Realtek® ALC4080 CODEC (rear panel audio) - Support for DTS:X® Ultra - High Definition Audio - 2-channel Realtek® ALC897 CODEC (front panel audio)

USB Ports

• CPU: - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, Chipset+Intel® JHL8540 USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel, Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header, CPU+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel, Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers

OS Support

• Windows 11 64-bit

Internal I/O Ports

• 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 4 x system fan headers, 4 x system fan/water cooling pump headers, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 4 x M.2 Socket 3 connectors, 8 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x noise detection header, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only), 1 x power button, 1 x Clear CMOS button, 1 x reset button, 1 x reset jumper, 2 x temperature sensor headers, 1 x Clear CMOS jumper

Back I/O Ports

• 1 x Q-Flash Plus button, 2 x SMA antenna connectors (2T2R), 1 x DisplayPort In port, 1 x USB4® USB Type-C® port (DisplayPort), 1 x USB4® USB Type-C® port, 4 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 2 x RJ-45 ports, 2 x audio jacks

H/W Monitoring

• Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection

I/O Controller

• iTE® I/O Controller Chip

BIOS

• 1 x 256 MB flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC), * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash, Support for Q-Flash Plus

Bundled Software

• Norton® Internet Security (OEM version), LAN bandwidth management software
