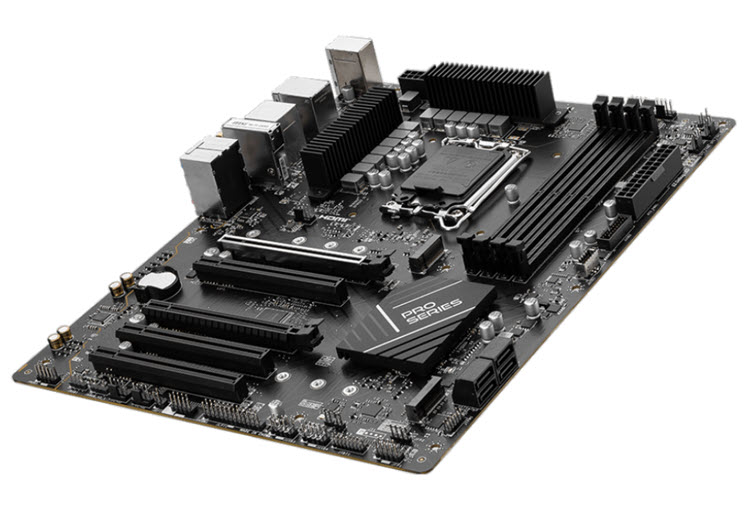

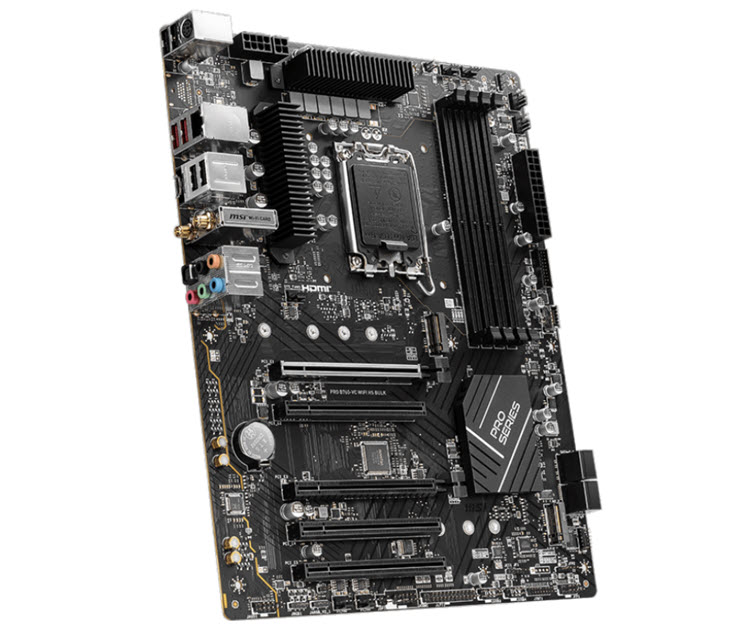

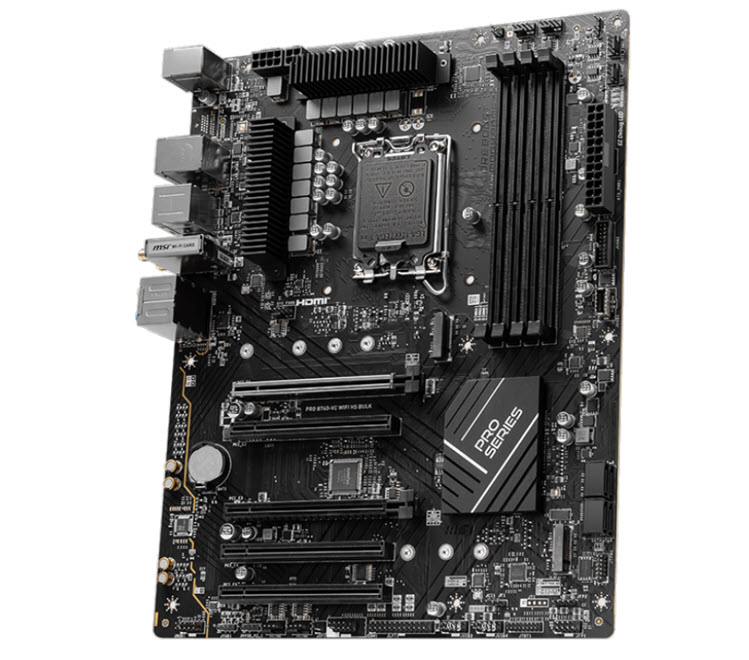

PRO B760-VC WIFI HS BULK

Form Factor

• ATX, 243.84mm x 304.8mm

CPU

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700

Chipset

• INTEL B760

Memory

• 4 x DDR5, Maximum Memory Capacity 256 GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC) / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC) / 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz, Supports Intel® XMP 3.0 OC, Supports Dual-Controller Dual-Channel mode, Supports non-ECC, un-buffered memory

Graphics

• 5 x PCI-E x16 slot

Expansion Slots

• 5 x PCI-E x16 slot (Qty), PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

• 2 x M.2 (Qty), M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, 4 x SATA 6G (Qty), Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

LAN

• Realtek® RTL8125BG 2.5G LAN

WIRELESS LAN & BLUETOOTH

• Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA

Audio

• Realtek® ALC897 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output

USB Ports

• 4 x USB 2.0 (Rear), 4 x USB 2.0 (Front), 2 x USB 5Gbps Type A (Front), 1 x USB 5Gbps Type C (Front), 2 x USB 10Gbps Type A (Rear), 1 x USB 10Gbps Type C (Rear)

OS Support

• Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

• 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x CPU Fan, 1 x Pump Fan, 5 x System Fan, 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x Printer Port (JLPT), 1 x Com Port (JCOM), 1 x TBT connector (JTBT, supports RTD3), 2 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB), 1 x TPM pin header(Support TPM 2.0), 4 x USB 2.0 ports

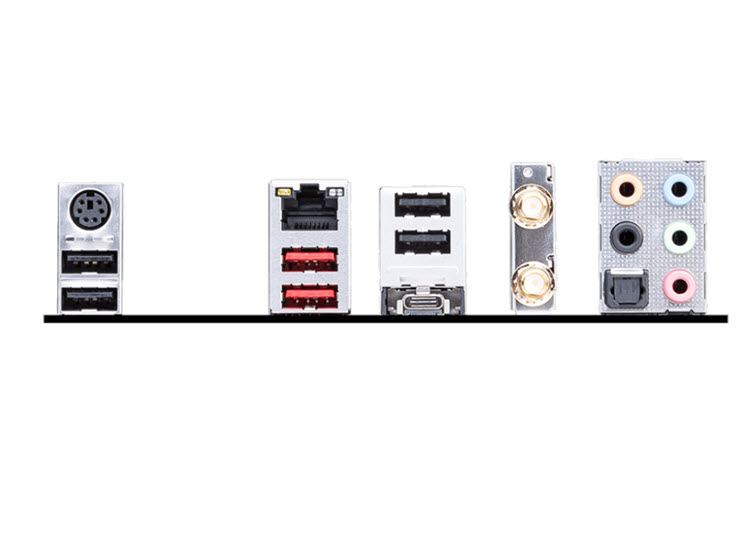

Back I/O Ports

• Keyboard/Mouse, 2.5G LAN, 4 x USB 2.0, Wi-Fi/Bluetooth, 5 x Audio Connectors, 2 x USB 3.2 Gen 2 10Gbps (Type-A), 1 x USB 3.2 Gen 2 10Gbps (Type-C), S/PDIF-OUT

LED Feature

• 4 x EZ Debug LED
