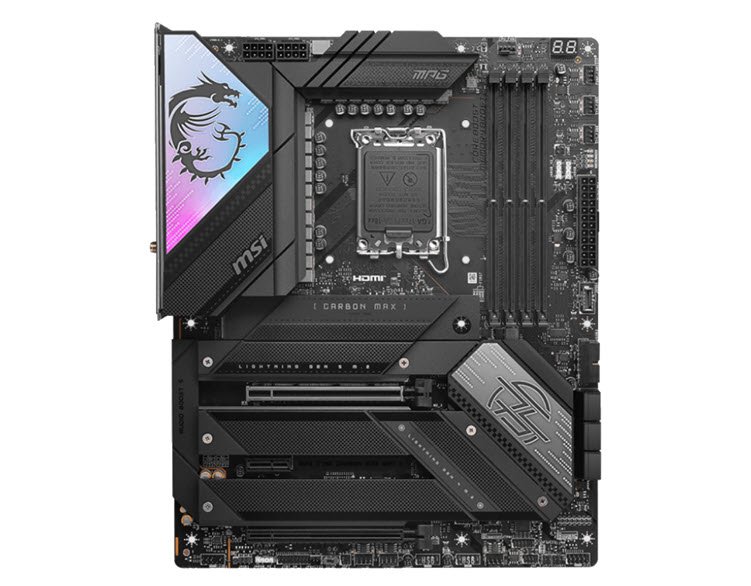

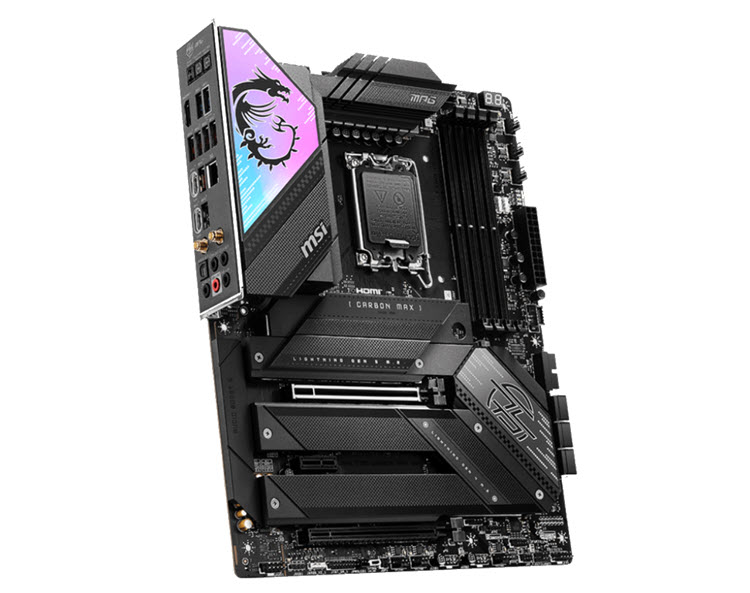

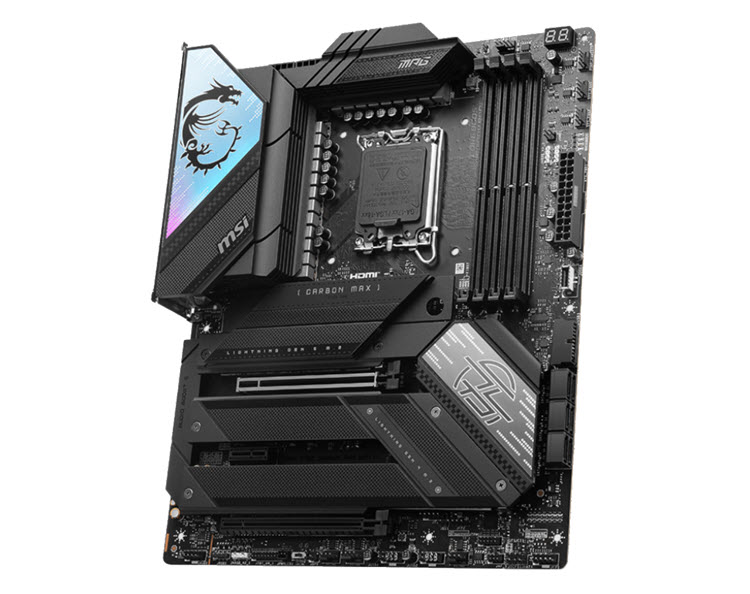

MPG Z790 CARBON MAX WIFI II

MPG Z790 CARBON MAX WIFI II employs a carbon black color scheme and reflection decoration over Mystic Light RGB lighting to show a different identity. It is also powerful inside by featuring Wi-Fi 7 solution, optimized DDR5 circuit, and the latest PCIe 5.0 M.2 with Screwless M.2 Shield Frozr, making this motherboard one of the best Z790 ATX motherboards for Intel® 14th Gen and 13th Gen Core processors.

Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.

Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

Direct Touch Heat-pipe - Connecting two MOS heatsinks to enlarge the surface of heat dissipation.

M.2 Shield Frozr - Keeps M.2 SSDs safe while preventing throttling, making them run faster.

7W/mK Thermal Pad - High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

Double-sided M.2 Shield Frozr and Enlarged heatsink design keep M.2 SSDs safe while preventing throttling. The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.

5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Form Factor

• ATX, 243.84mm x 304.8mm

CPU

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700

Chipset

• INTEL Z790

Memory

• 4 x DDR5 UDIMM, Maximum Memory Capacity 256 GB, Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz, Supports Intel® XMP 3.0 OC, Supports Dual-Controller Dual-Channel mode, Supports non-ECC, un-buffered memory

Graphics

• 1 x HDMI™, Support HDMI™ 2.1, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

• 2 x PCI-E x16 slot, 1 x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Storage

• 5 x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices - M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices - M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices - 6 x SATA 6G - *PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_2 slot. RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function.

LAN

• Realtek 5Gbps LAN

Wireless & Bluetooth

• Wi-Fi 7 Solution, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.4**, MLO, 4KQAM

Audio

• Realtek® ALC4080 Codec, 7.1-Channel USB High Performance Audio, Supports up to 32-Bit/384 kHz playback on front panel

USB Ports

• 4 x USB 2.0 (Front), 2 x USB 5Gbps Type A (Rear), 2 x USB 5Gbps Type A (Front), 6 x USB 10Gbps Type A (Rear), 1 x USB 10Gbps Type C (Rear), 1 x USB 20Gbps Type C (Rear), 1 x USB 20Gbps Type C (Front)

OS Support

• Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

• 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x CPU Fan, 1 x Pump Fan, 5 x System Fan, 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 3 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB), 1 x TPM pin header(Support TPM 2.0), 1 x ARGB+FAN Header (JAF_1), 1 x USB4 card connector (JTBT_U4_1, supports RTD3), 4 x USB 2.0 ports, 2 x USB 5Gbps Type A ports, 1 x USB 20Gbps Type C ports

Back I/O Ports

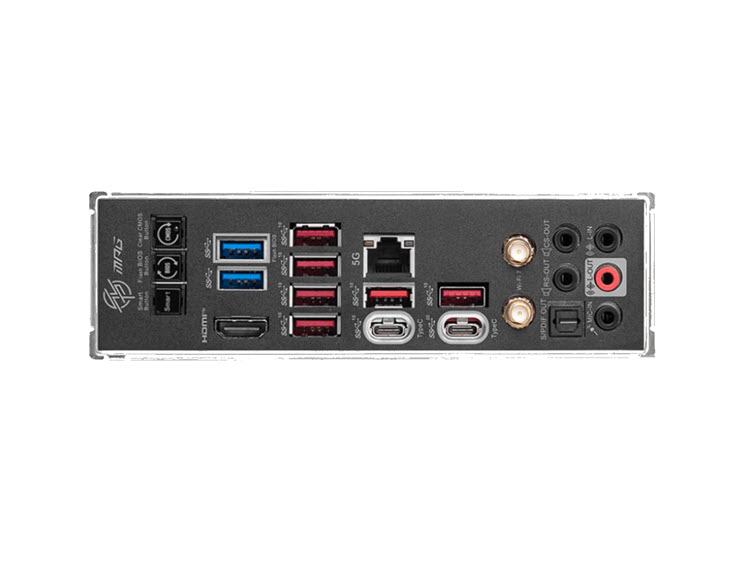

• Flash BIOS/Clear CMOS, 2 x USB 5 Gbps (Type-A), 6 x USB 10Gbps (Type-A), 5G LAN, Wi-Fi/Bluetooth, 5 x HD Audio Connectors, Smart Button, HDMI™, 1 x USB 10Gbps (Type-C), 1 x USB 20Gbps (Type-C), Optical S/PDIF Out

LED FEATURE

• 4 x EZ Debug LED, 1 x 2-Digit Debug Code LED, 1 x EZ LED Control switch
