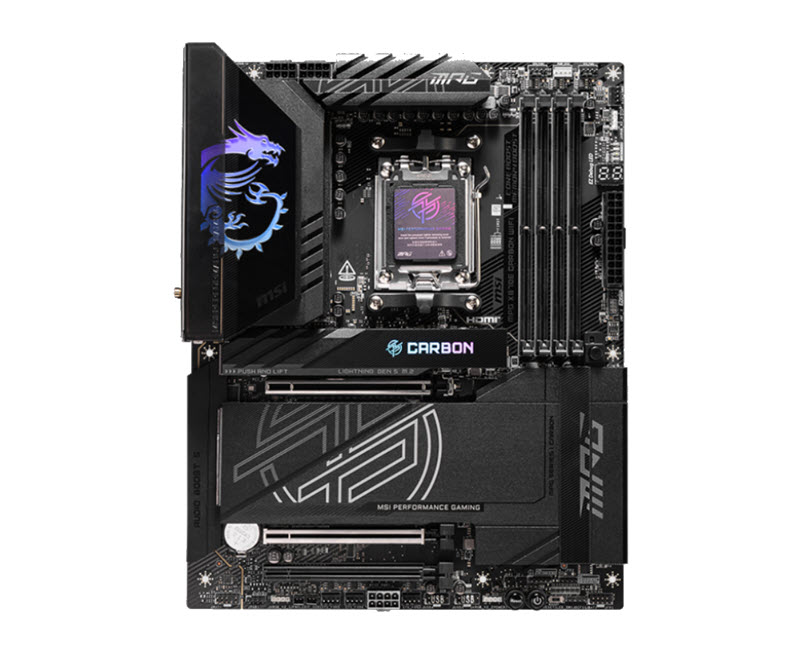

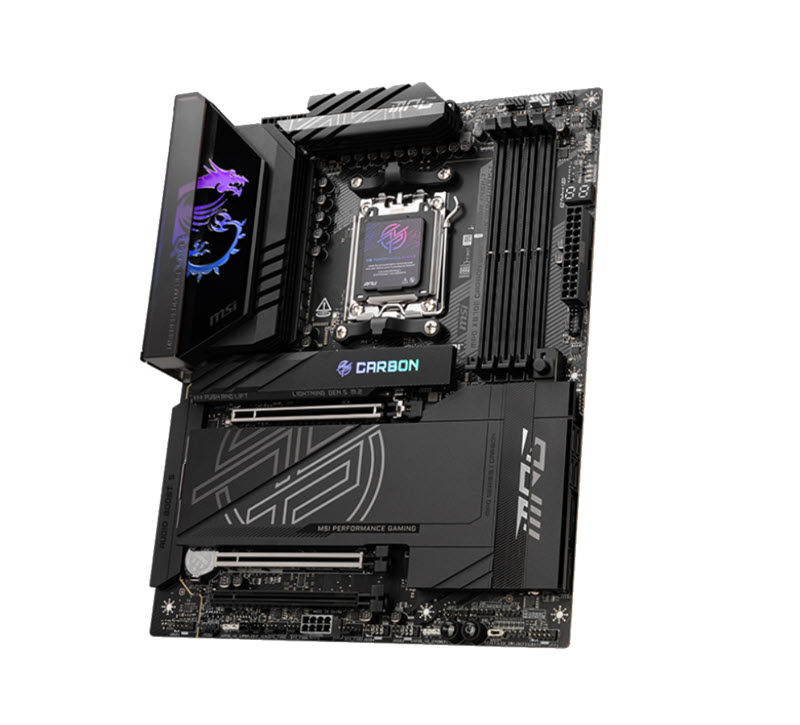

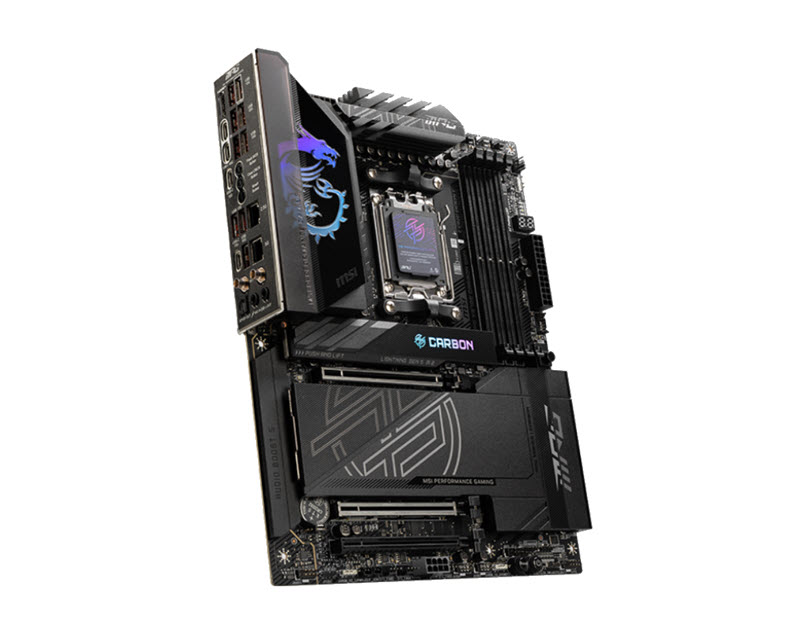

Form Factor

• ATX, 243.84mmx304.8mm

CPU

• Socket AM5 - Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Chipset

• AMD X870E

Memory

• 4 x DDR5 UDIMM, Maximum Memory Capacity 256 GB Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s, Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s, Supports AMD POR Speed and JEDEC Speed, Supports Memory Overclocking and AMD EXPO™, Supports Dual-Channel mode, Supports Non-ECC, Un-buffered memory, Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

Graphics

• 1 x HDMI™. Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*, 2 x Type-C DisplayPort, USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

• 3 x PCI-E x16 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 & PCI_E2 slots, • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor), PCI_E3 slot, • Supports up to PCIe 4.0 x4 * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.

Storage

• 4 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 4 x SATA 6G, * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details. RAID: •Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices - Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices, * RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen™ 9000/7000 series CPU.

LAN

• 1 x Realtek® 8126 5G LAN, 1 x Realtek® 8125 2.5G LAN

Wireless & Bluetooth

• Wi-Fi 7 Solution, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax/ be, Supports Bluetooth® 5.4**, MLO, 4KQAM - * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

Audio

• Realtek® ALC4080 Codec, 7.1-Channel USB High-Performance Audio, Supports up to 32-Bit/384 kHz playback on front panel, Supports S/PDIF output

USB Ports

• 4 x USB 2.0 (Front), 4 x USB 5Gbps Type A (Front), 9 x USB 10Gbps Type A (Rear), 2 x USB 10Gbps Type C (Rear), 1 x USB 20Gbps Type C (Front), 2 x USB 40Gbps Type C (Rear)

OS Support

• Windows® 11 64-bit

Internal I/O Ports

• 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x Power Connector(PCIE_PWR 8pin), 1 x CPU Fan, 1 x Combo Fan (Pump_Sys Fan), 5 x System Fan, 1 x EZ Conn-header (JAF_2), 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x Thermal Sensor connectors(T_SEN), 3 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB), 4 x USB 2.0 ports, 4 x USB 5Gbps Type A ports, 1 x USB 20Gbps Type C ports

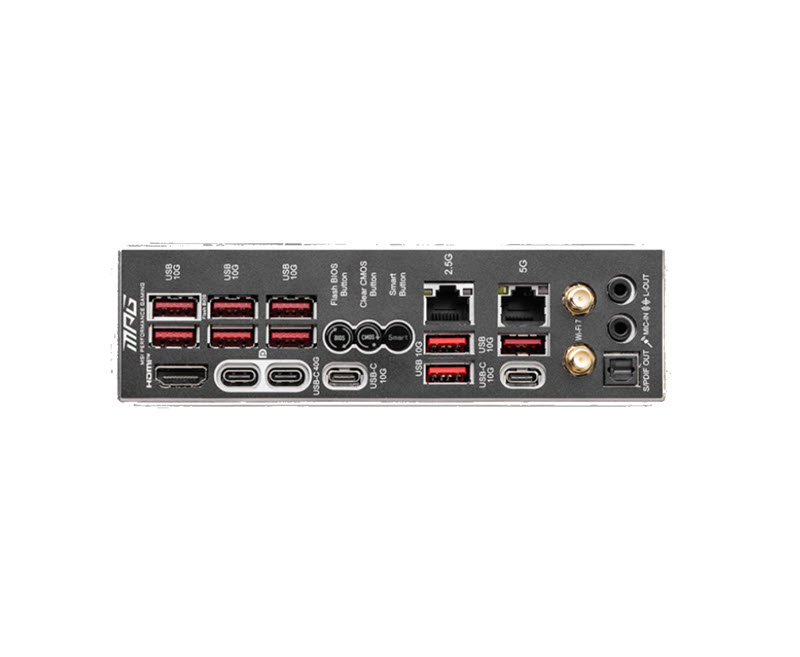

Back I/O Ports

• 9 x USB 10Gbps Type-A, Flash BIOS Button, Clear CMOS Button, Smart Button, 2.5G LAN, 5G LAN, 2 x Audio Connectors, HDMI™, 2 x USB 40Gbps Type-C, 2 x USB 10Gbps Type-C, Wi-Fi / Bluetooth, Optical S/PDIF Out

LED FEATURE

• 4 x EZ Debug LED, 1 x EZ Digit Debug LED, 1 x EZ LED Control switch
