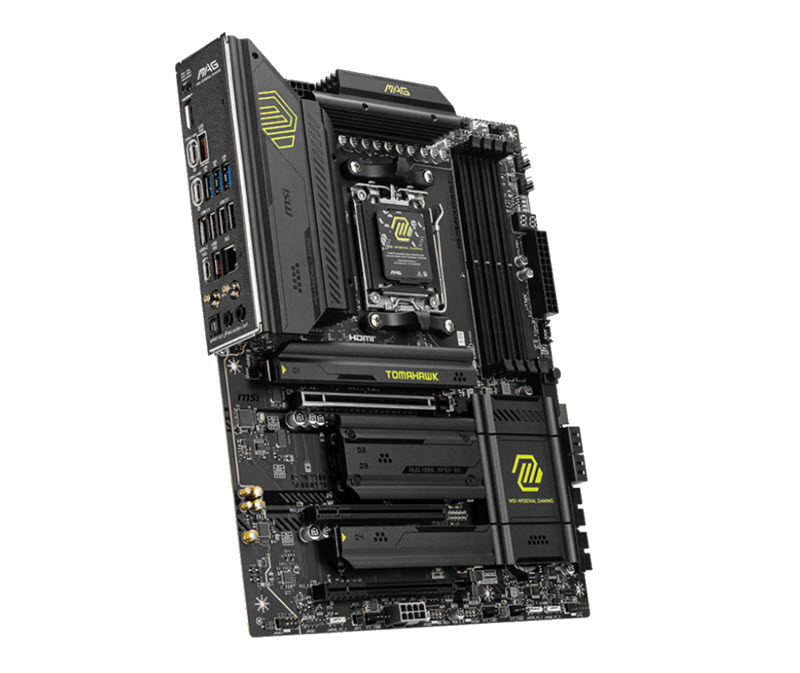

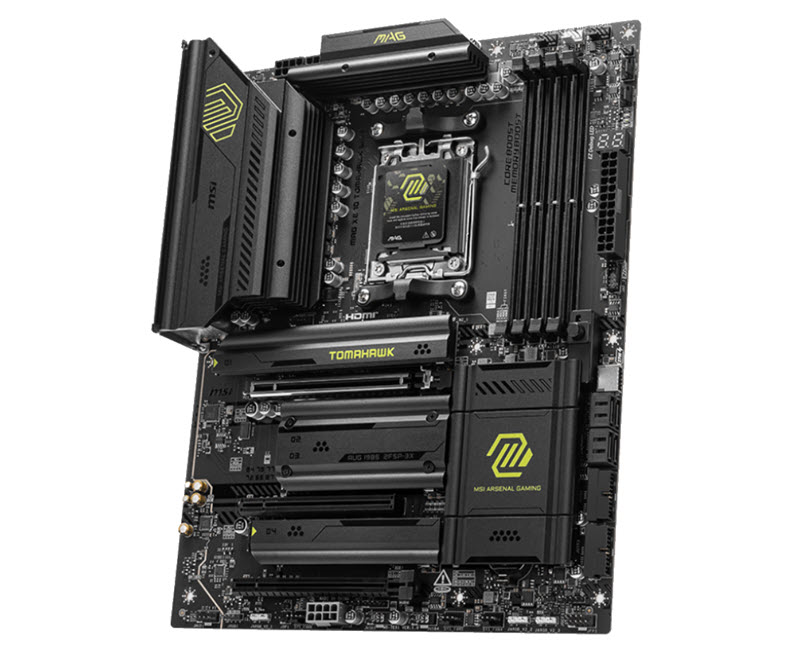

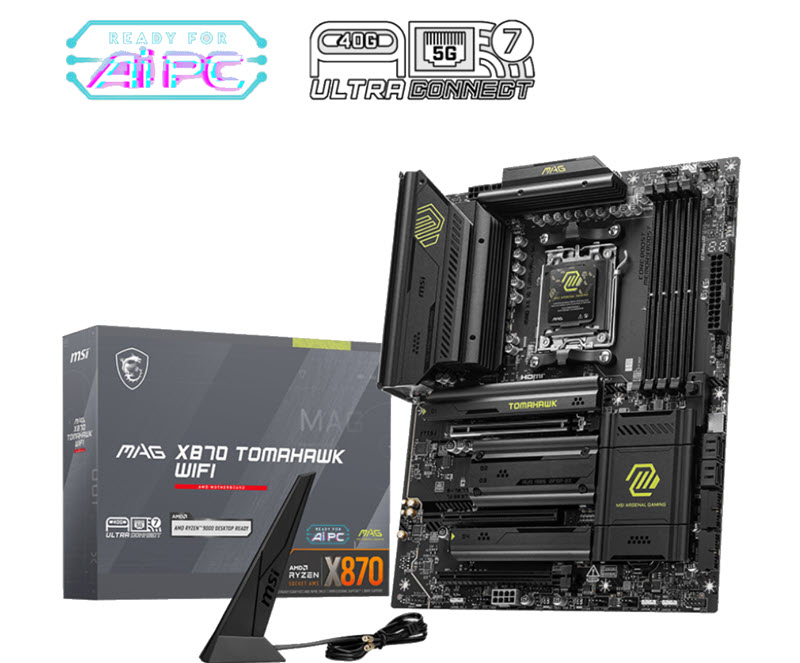

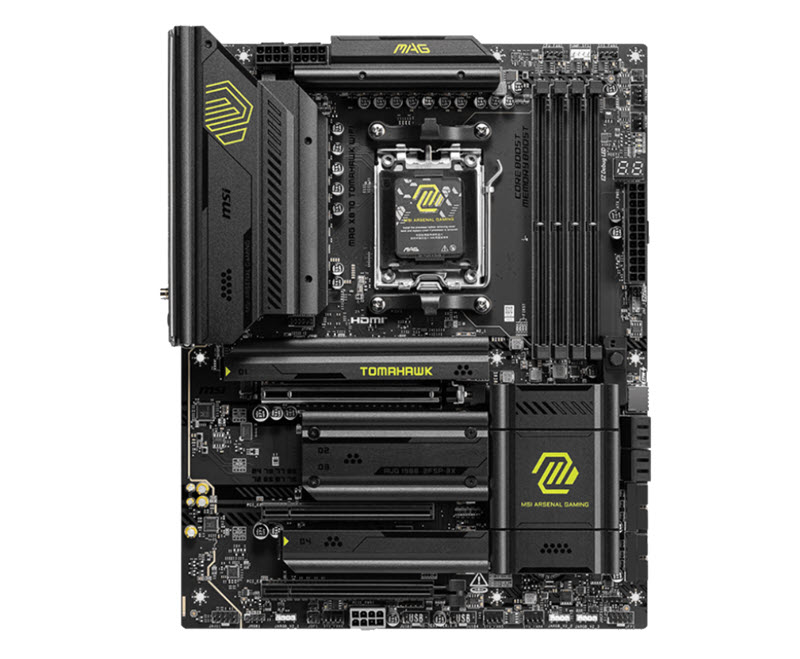

MAG X870 TOMAHAWK WIFI

MAG X870 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefied of AMD Ryzen™ 9000 series processors.

The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defense in every gaming scenario. However, MAG isn't just about performance; it's a design language that conveys ruggedness and toughness, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlegrounds, the MAG series is here to stand with you, establishing the ultimate defense.

Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 80A Smart Power Stage, MAG X870 TOMAHAWK WIFI is ready for the challenge of high-end processors.

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

Double-sided M.2 Shield Frozr - Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Form Factor

• ATX - 304.8mmx243.84mm

CPU

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors - Socket AM5

Chipset

• AMD X870

Memory

• 4 x DDR5 UDIMM, Maximum Memory Capacity 256 GB, Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s, Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s - Supports AMD POR Speed and JEDEC Speed - Supports Memory Overclocking and AMD EXPO™ - Supports Dual-Channel mode - Supports Non-ECC, Un-buffered memory - Supports CUDIMM, Clock Driver bypass mode only -

Graphics

• 1 x HDMI™, Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*, 2 x Type-C DisplayPort, USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*, *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Multi-GPU

• AMD MULTI-GPU Support

Expansion Slots

• 3 x PCI-E x16 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor), *PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot

Storage

• 4 x M.2, M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices, M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors., ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports *** PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot. **** Please refer to the manual for M.2 SSD heatsink restrictions. RAID - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

LAN

• Realtek® 8126-CG 5G LAN

Wireless & Bluetooth

• Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax/ be, Supports Bluetooth® 5.4**, MLO, 4KQAM

Audio

• Realtek® ALC4080 Codec, 7.1-Channel USB High Performance Audio, Supports up to 32-bit/384kHz playback on front panel, Supports S/PDIF output

USB Ports

• 4 x USB 2.0 (Rear), 4 x USB 2.0 (Front), 3 x USB 5Gbps Type A (Rear), 4 x USB 5Gbps Type A (Front), 2 x USB 10Gbps Type A (Rear), 1 x USB 10Gbps Type C (Rear), 1 x USB 20Gbps Type C (Front), 2 x USB 40Gbps Type C (Rear)

OS Support

• Windows® 11 64-bit

Internal I/O Ports

• 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x Power Connector(PCIE_PWR 8pin), 1 x CPU Fan, 1 x Combo Fan (Pump_Sys Fan), 6 x System Fan, 1 x EZ Conn-header (JAF_2), 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 3 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB), 1 x TPM pin header(Support TPM 2.0), 4 x USB 2.0 ports, 4 x USB 5Gbps Type A ports, 1 x USB 20Gbps Type C ports

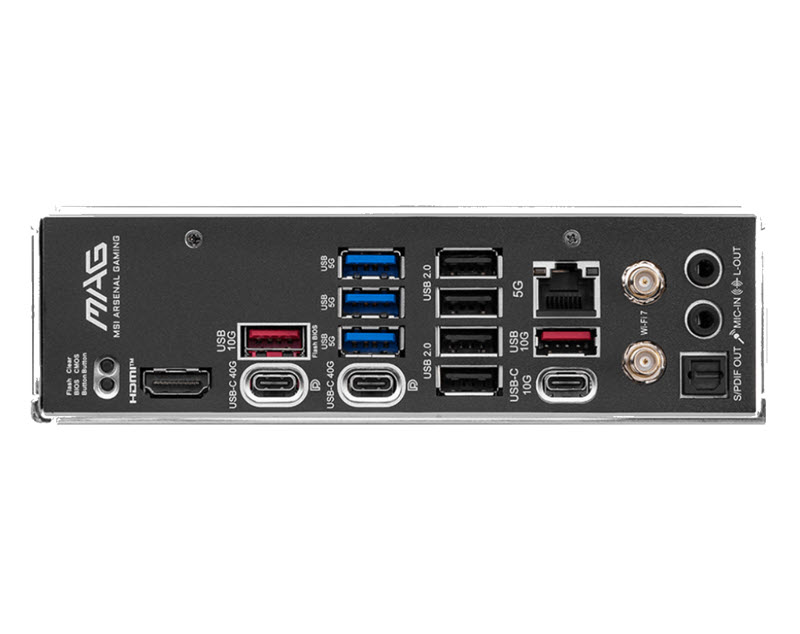

Back I/O Ports

• Clear CMOS Button, 2 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 4 x USB 2.0, 5G LAN, Wi-Fi / Bluetooth, 2 x Audio Connectors, Flash BIOS Button, HDMI™, 2 x USB 40Gbps Type-C, 1 x USB 10Gbps Type-C

LED FEATURE

• 4 x EZ Debug LED, 1 x EZ Digit Debug LED
