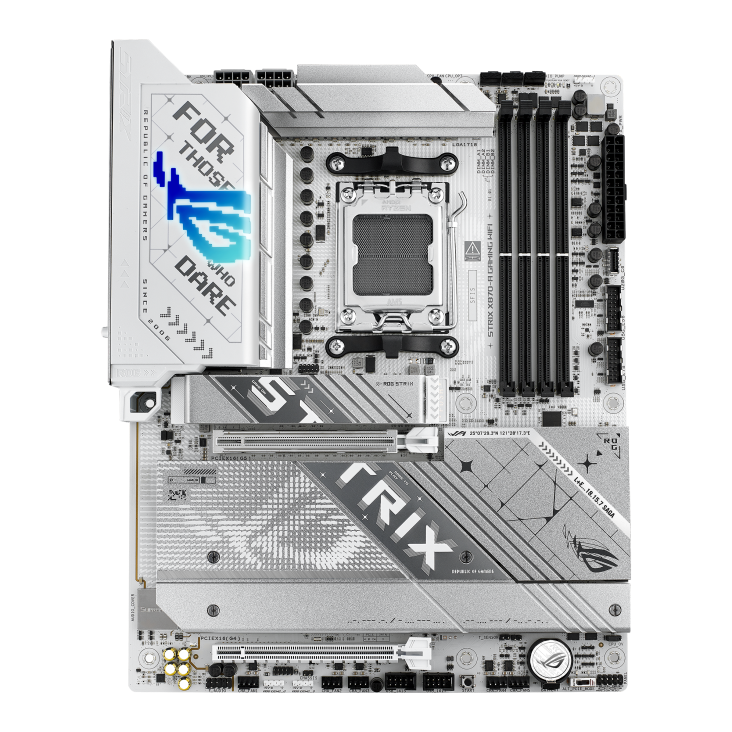

ROG STRIX X870-A GAMING WIFI

Elevate your build with the ROG Strix X870-A Gaming WiFi. Featuring a sleek white PCB and support for AMD Ryzen™ 9000 Series processors, this motherboard delivers the power and connectivity needed for advanced AI applications. With DDR5 support, full PCIe 5.0 capabilities, dual USB4® ports, and WiFi 7, it's the ultimate blend of style and performance.

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

Balance the thermals and acoustics of any build with a single click.

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

For next-level frequency flexibility, the ROG Strix X870-A features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

The Strix X870-A is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It’s compatible with Windows, macOS, Android, and iOS.

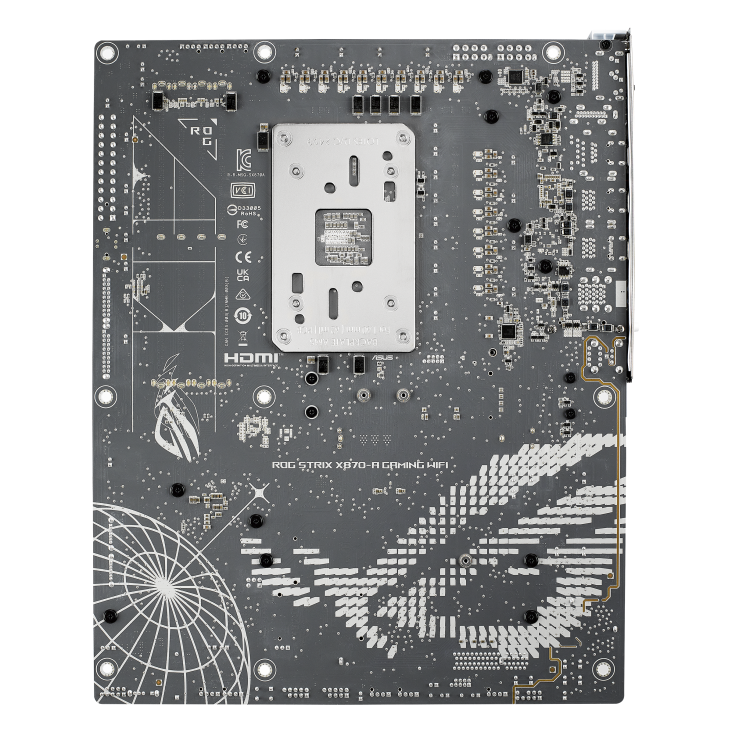

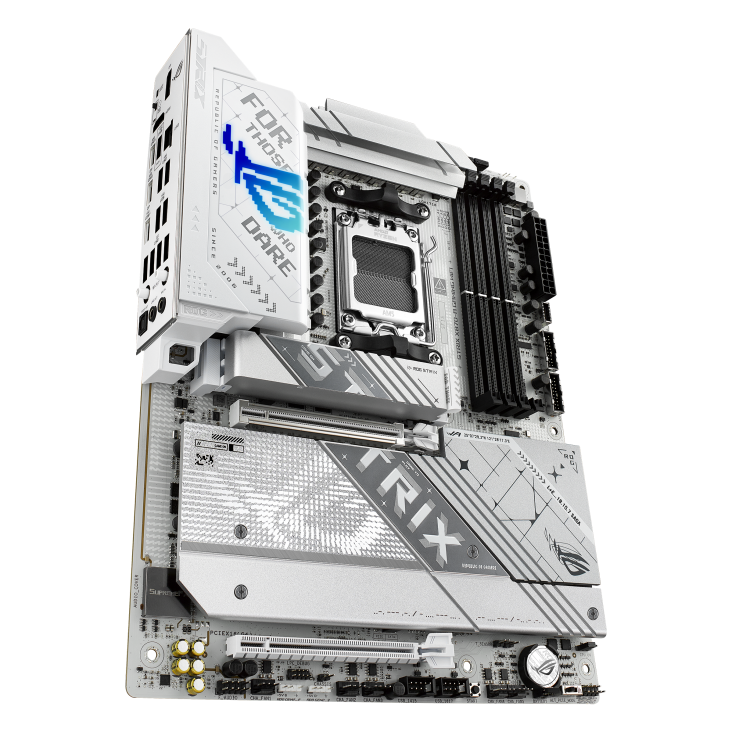

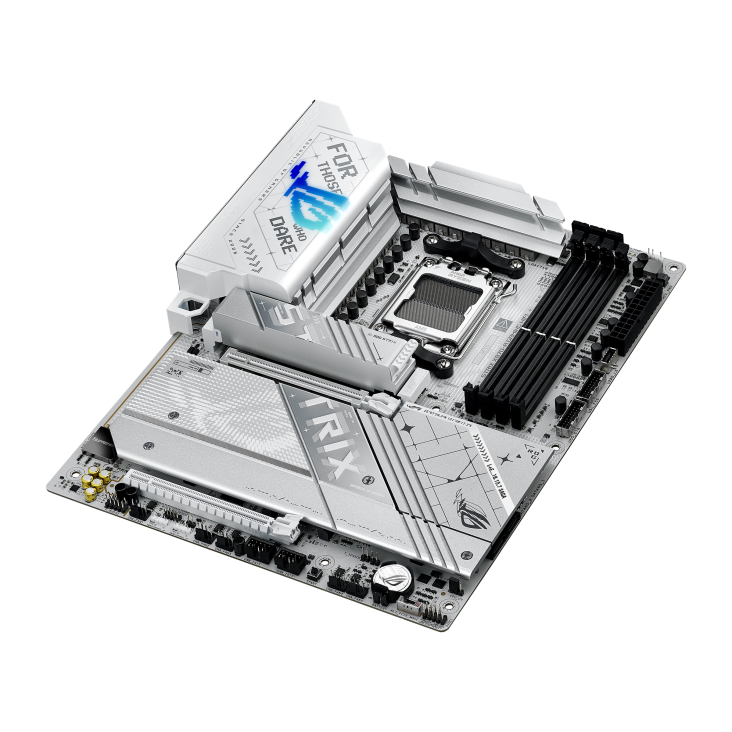

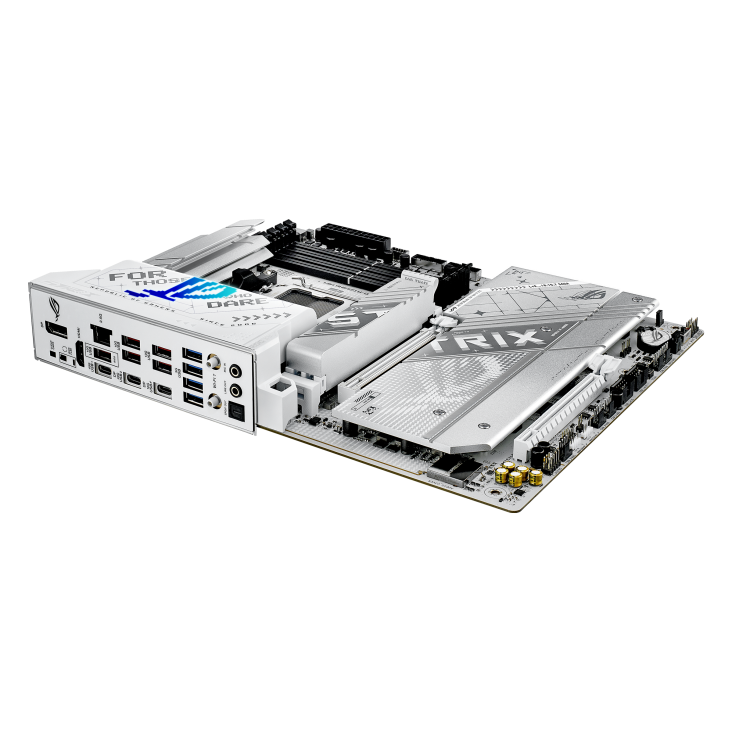

The ROG Strix X870-A stands out with its striking white PCB, offering a fresh and modern aesthetic that seamlessly complements almost any system build. The matching metallic heatsinks enhance its clean, crisp look, while subtle RGB lighting on the I/O shroud allows you to either maintain a sleek, understated appearance or showcase a bold, luminous design.

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

When only the fastest will do, a Strix X870E/X870 motherboard delivers. With USB 4.0 onboard along with robust overclocking¹ capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Form Factor

• ATX Form Factor - 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD X870

Memory

• 4 x DIMM slots, max. 192 GB, DDR5, Supports up to 8000+MT/s(OC) with Ryzen™, 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory*", Dual channel memory architecture, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP)

Graphics

• 1 x DisplayPort**, 1 x HDMI™ port***, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs****, ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. - *** Supports 4K@60Hz as specified in HDMI 2.1. - ****Supports max. 4K@60Hz as specified in DisplayPort 1.4a - **** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*, 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8000 Series Desktop Processors*, 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**, AMD X870 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

• Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*, AMD Ryzen™ 9000 & 7000 Series Desktop Processors*, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**, AMD Ryzen™ 8000 Series Desktop Processors** - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode), M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)****, AMD X870 Chipset - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***, M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 2 x SATA 6Gb/s ports - * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. - ** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only. - *** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled. - **** M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.

LAN

• 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.. Bluetooth® v5.4

Audio

USB Ports

• Rear USB (Total 12 ports) - 2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)*, 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**, 4 x USB 5Gbps ports (4 x Type-A), Front USB (Total 9 ports) - 1 x USB 20Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, * USB Type-C® power delivery output: max. 5V/3A, ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

OS Support

• Windows® 11 64-bit

Internal I/O Ports

• Fan and Cooling Related - 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, Power Related - 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors, Storage Related - 4 x M.2 slots (Key M), 2 x SATA 6Gb/s ports, USB - 1 x USB 20Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous - 3 x Addressable Gen 2 headers, 1 x Alteration PCIe mode switch, 1 x Chassis Intrusion header, 1 x CPU Over voltage jumper, 1 x Front Panel Audio header (F_AUDIO), 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header

Back I/O Ports

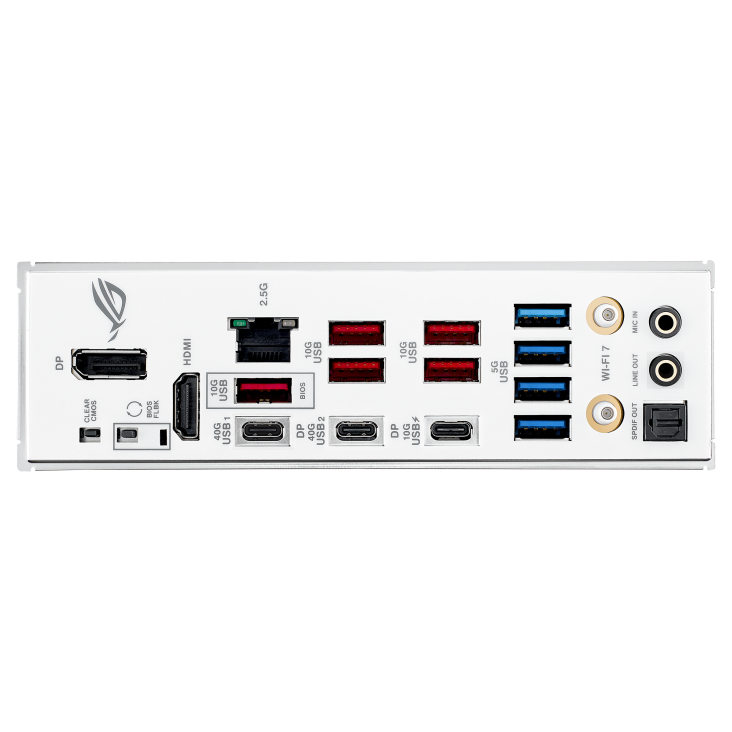

• 2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode), 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**, 4 x USB 5Gbps ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet, 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button

Software Features

• ROG Exclusive Software - ROG CPU-Z - Dolby Atmos, ASUS Exclusive Software, Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving, ASUS Driver Hub, ASUS GlideX, USB Wattage Watcher, TurboV Core, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial), UEFI BIOS, AI Overclocking Guide, ASUS EZ DIY, - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey, Dynamic OC Switcher, FlexKey

Special Features

• Extreme Engine Digi+, - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot, ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink, ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM, Aura Sync - Addressable Gen 2 headers

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

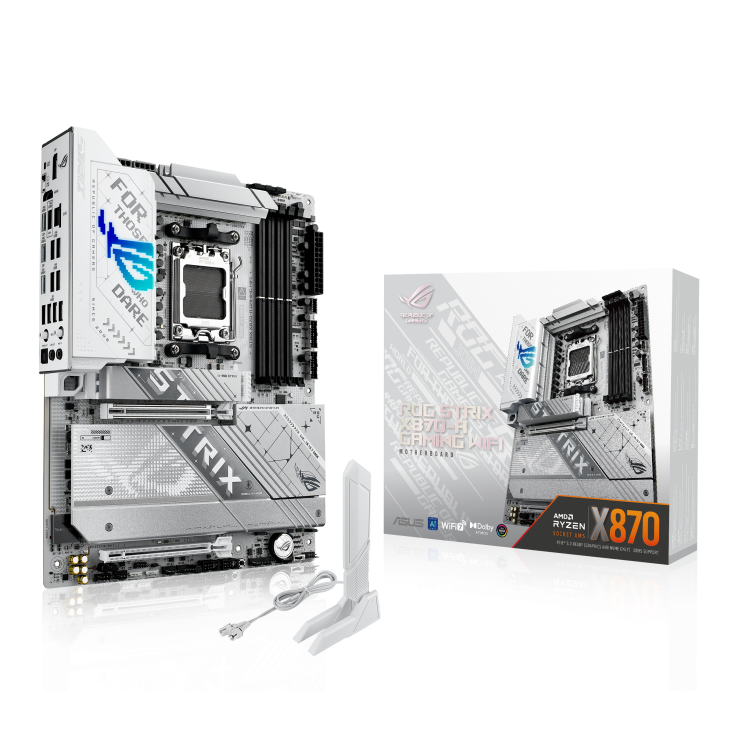

• Cables - 2 x SATA 6Gb/s cables, Additional Cooling Kit - 1 x Thermal pad for M.2 22110, Miscellaneous - 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 4 x M.2 rubber packages, Documentation - 1 x Quick start guide
