ProArt Z890-CREATOR WIFI

The ProArt Z890-CREATOR WIFI empowers creators of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual Thunderbolt™ 5 ports, 10G and 2.5G Ethernet, and WiFi 7.

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within.

Get immersed in your creations with two Thunderbolt™ 5 ports and one Thunderbolt™ 4 port for connecting to all your compatible content-creation gadgets, enjoying up to 120 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the Thunderbolt™ 5 port.

Designed to meet the needs of high-core-count CPUs, the ProArt Z890-CREATOR WIFI features 16(90A)+1(90A)+2(90A)+2(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 90 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for new Intel® Core™ Ultra Processors (Series 2).

The integrated Neural Processing Unit in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.

A spark of inspiration can breathe life into a concept that leads to a masterpiece. ProArt is a comprehensive ecosystem providing professional creators with a stable foundation for your inspiration. These custom workstations feature award-winning ProArt motherboards, graphics cards, CPU coolers and chassis, pairing with ProArt displays to accelerate your creative workflow and bring the boldest visions and ideas to life.

ProArt Z890-CREATOR WIFI is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.

News & Updates

• 2024/10/24: A new BIOS has been released addressing various bugs, including no display from the graphics card when installing Windows 11 24H2. It is recommended to use the new EZ Flash tool to update directly using the ZIP file downloaded from the ASUS site.

Form Factor

• ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

CPU

• Support Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® Z890 Chipset

Memory

• 4 x DIMM slots, max. 192 GB, DDR5, Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM), Dual channel memory architecture, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III (AEMP III), Support DIMM Fit, Support DIMM Flex

Graphics

• 1 x HDMI™ port**, 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***, 1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****, ** Supports 4K@60Hz as specified in HDMI 2.1 *** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in. *** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in. *** For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5 bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt™ cables.

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2)*, 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes), Intel® Z890 Chipset, *1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

• Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*, Intel® Core™ Ultra Processors (Series 2) *, M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel® Z890 Chipset; M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes), M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**, 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. ** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled.

LAN

• 1 x Marvell® AQtion 10Gb Ethernet, 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4

Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*Audio Features - Gold-plated audio jacks- Premium audio capacitors- Dedicated audio PCB layers* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

USB Ports

• Rear USB (Total 10 ports); 2 x Thunderbolt™ 5 ports (2 x USB Type-C®), 1 x Thunderbolt™ 4 port (1 x USB Type-C®), 6 x USB 10Gbps ports (6 x Type-A ), 1 x USB 2.0 port (1 x Type-A ), Front USB (Total 5 ports); 1 x USB 20Gbps (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports, USB Type-C® power delivery output: max. 5V/3A

OS Support

• Windows 11 (22H2 & later)

Internal I/O Ports

• Fan and Cooling Related; 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, Power Related; 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, Storage Related; 5 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB; 1 x USB 20Gbps connector (supports USB Type-C® ), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports, Miscellaneous; 3 x Addressable Gen2 headers, 1 x Clear CMOS button, 1 x COM Port header, 1 x CPU Over voltage jumper, 1 x Chassis Intrusion header, 1 x Front Panel Audio header (F_AUDIO), 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin Front System Panel header, 1 x RTC Battery header, 1 x Thermal Sensor header

Back I/O Ports

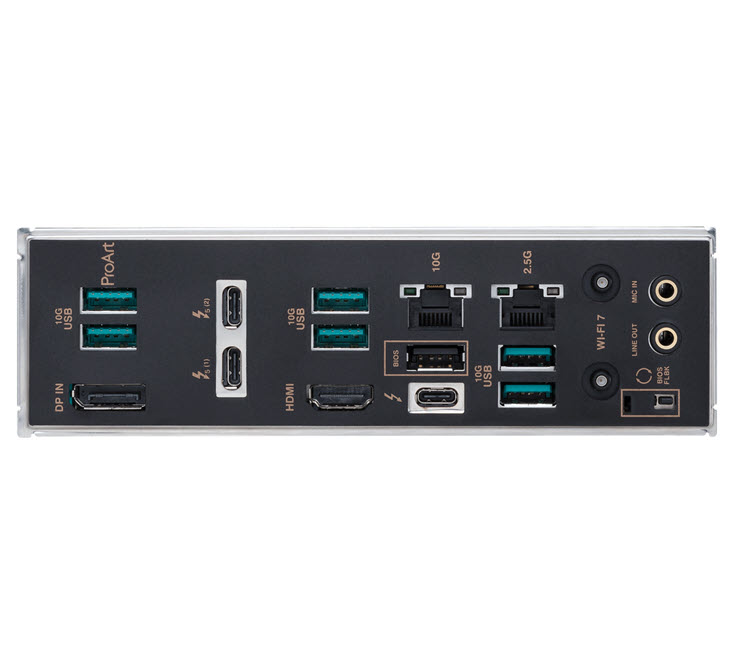

• 2 x Thunderbolt™ 5 USB Type-C® ports, 1 x Thunderbolt™ 4 USB Type-C® port, 6 x USB 10Gbps ports (6 x Type-A), 1 x USB 2.0 port (1 x Type-A), 1 x DisplayPort (Input only), 1 x HDMI™ port, 1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port, 1 x Intel® 2.5Gb Ethernet port, 2 x Gold-plated audio jacks, 1 x BIOS FlashBack™ button

Software Features

• ASUS Exclusive Software, Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4, ASUS Driver Hub, ASUS GlideX, ASUS CPU-Z, CreatonFirst, ProArt Creator Hub, TurboV Core, Thunderbolt™ Share, USB Wattage Watcher, Adobe Creative Cloud (Free Trial), Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial), UEFI BIOS, AI Overclocking Guide, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey, NPU Boost

Special Features

• ASUS 5X PROTECTION III / - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O, ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide- Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Connector - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design, ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Box headers - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeDIMM, Aura Sync - Addressable Gen2 headers, Bespoke Motherboard Design & Business Focused Features - 24/7 reliability- Overcurrent protection

Remote Management Features

• IT Management software supported - ASUS Control Center Express(ACCE)

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables; 2 x SATA 6Gb/s cables, Miscellaneous; 1 x ASUS WiFi Q-Antenna, 1 x Q-connector, 2 x M.2 Q-Latch packages, 2 x M.2 rubber packages, 1 x ProArt accessory bag, Documentation; 1 x ACC Express activation key card, 1 x Quick start guide
