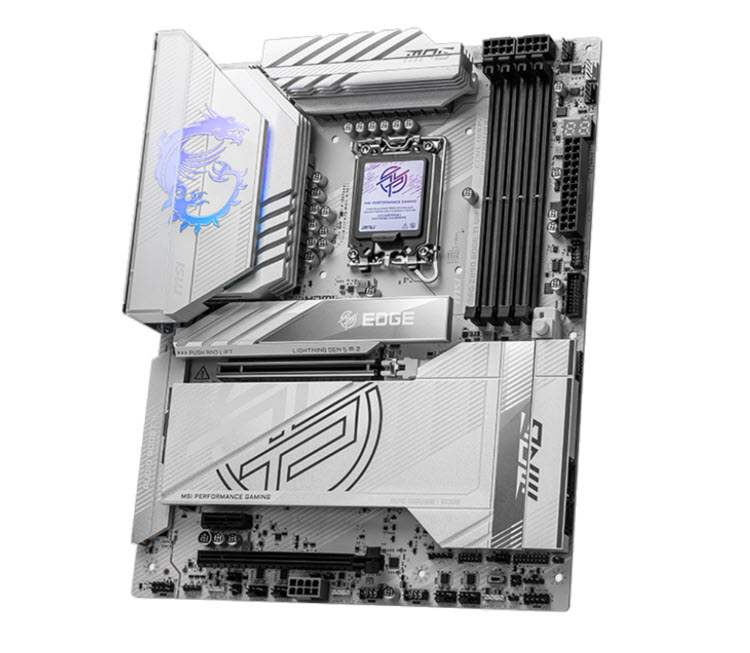

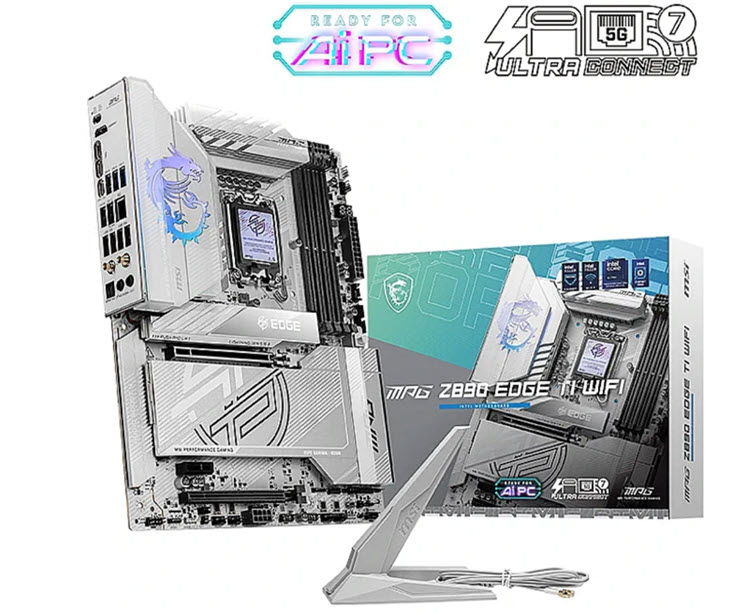

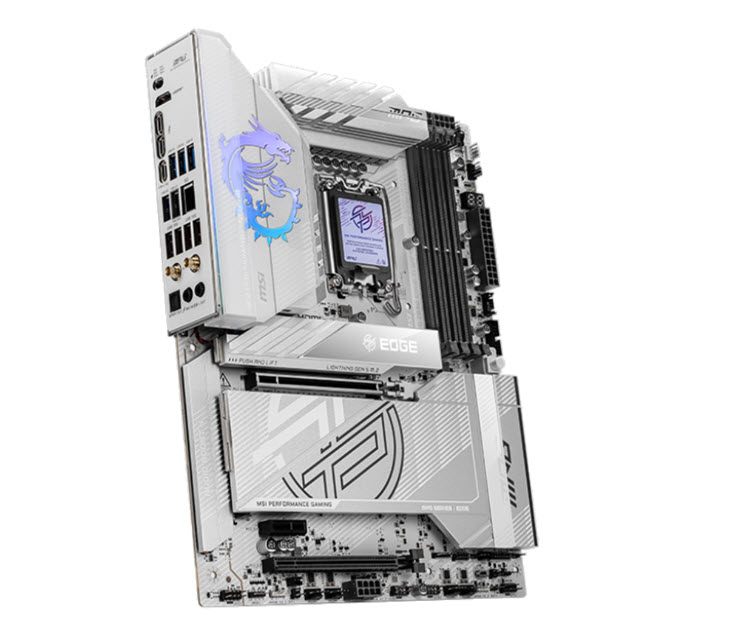

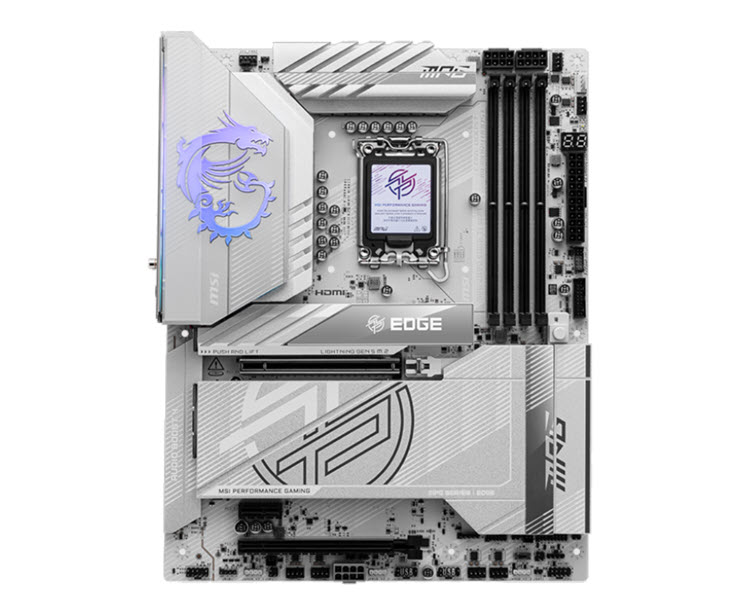

MPG Z890 EDGE TI WIFI

MPG Z890 EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power and this is the best white theme Z890 ATX motherboard for Intel Core Ultra processors.

MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

MSI's exclusive EZ M.2 Shield Frozr II and EZ M.2 CLIP II make M.2 installation seamless. Insert the SSD card into the slot and press it down to lock it in place with the clip. As fasten the SSD, flick the clip outwards and then the SSD is removed. The process is smooth, and you don't need to use your tools like before. One finger can give you perfect DIY experience.

An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.

16+1+1+1 DRPS POWER DESIGN - Unleash and sustain the maximum performance with a flagship VRM design built with a total of 16+1+1+1 Duet Rail Power System. Combining dual power connectors and 90A Smart Power Stage, MPG Z890 EDGE TI WIFI is ready for the challenge of high-end processors.

Form Factor

• ATX, 243.84mmx304.8mm

CPU

• Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851

Chipset

• INTEL Z890

Memory

• 4 x DDR5 UDIMM, Maximum Memory Capacity 256 GB, Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s, Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s - • 1DPC 2R Max speed up to 7200+ MT/s - • 2DPC 1R Max speed up to 4800+ MT/s - • 2DPC 2R Max speed up to 4800+ MT/s - Supports Intel POR Speed and JEDEC Speed, Supports Memory Overclocking and Intel XMP 3.0, Supports Dual-Controller Dual-Channel mode, Supports Non-ECC, Un-buffered memory, Supports CUDIMM, • The DIMM slots on this motherboard have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration

Graphics

• 1 x HDMI™, Supports HDMI™ 2.1 with FRL port, maximum resolution of 8K 60Hz*, 2 x Type-C DisplayPort, Thundebolt™ 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

• 2 x PCI-E x16 slot, 1 x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), • PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4

Storage

• 5 x M.2, M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices, M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices, 4 x SATA 6G, RAID • Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices • Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices

Onboard Thunderbolt

• 2 x Thunderbolt 4 ports (Rear); Supports up to 40Gbps transfer rate with Thunderbolt devices, Supports up to 20Gbps transfer rate with USB4 devices, Supports up to 10Gbps transfer rate with USB 3.2 devices, Supports up to 5V/3A,15W power charging, Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices, Supports up to 8K display

LAN

• 1 x Intel® Killer™ E5000B 5G LAN

Wireless & Bluetooth

• Intel® Killer™ BE1750x Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax/ be, Supports Bluetooth® 5.4, MLO, 4KQAM

Audio

• Realtek® ALC1220P Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output

USB Ports

• 1 x USB 2.0 (Rear), 4 x USB 2.0 (Front), 4 x USB 5Gbps Type A (Rear), 2 x USB 5Gbps Type A (Front), 4 x USB 10Gbps Type A (Rear), 1 x USB 10Gbps Type C (Rear), 1 x USB 20Gbps Type C (Front), *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1

OS Support

• Windows® 11 64-bit

Internal I/O Ports

• 1 x Thunderbolt5 card connector(JTBT5, support RTD3), 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x Power Connector(PCIE_PWR 8pin), 1 x CPU Fan, 1 x Combo Fan (Pump_Sys Fan), 6 x System Fan, 1 x EZ Conn-header (JAF_2), 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x Thermal Sensor connectors(T_SEN), 3 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB), 1 x TPM pin header(Support TPM 2.0), 4 x USB 2.0 ports, 2 x USB 5Gbps Type A ports, 1 x USB 20Gbps Type C ports

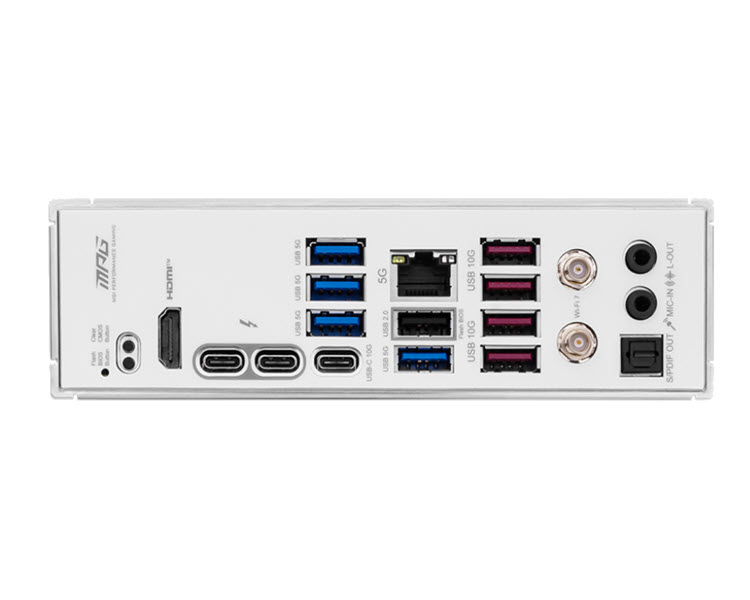

Back I/O Ports

• 4 x USB 5Gbps Type-A, 5G LAN, 4 x USB 10Gbps Type-A, Wi-Fi / Bluetooth, 2 x Audio Connectors, Clear CMOS Button, Flash BIOS Button, HDMI™, 2 x Thunderbolt 4, USB 10Gbps Type-C, 1 x USB 2.0, Optical S/PDIF Out

LED FEATURE

• 4 x EZ Debug LED, 1 x EZ Digit Debug LED
