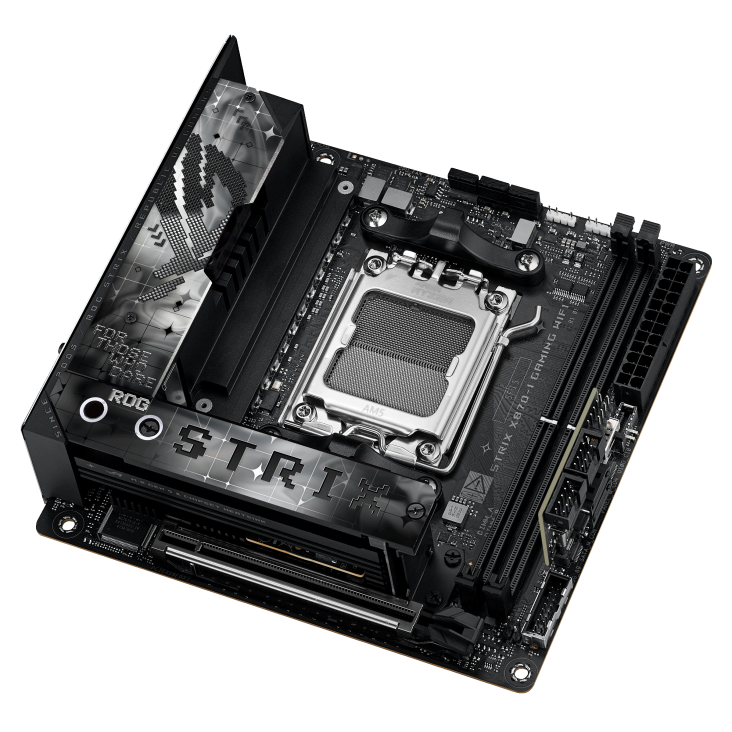

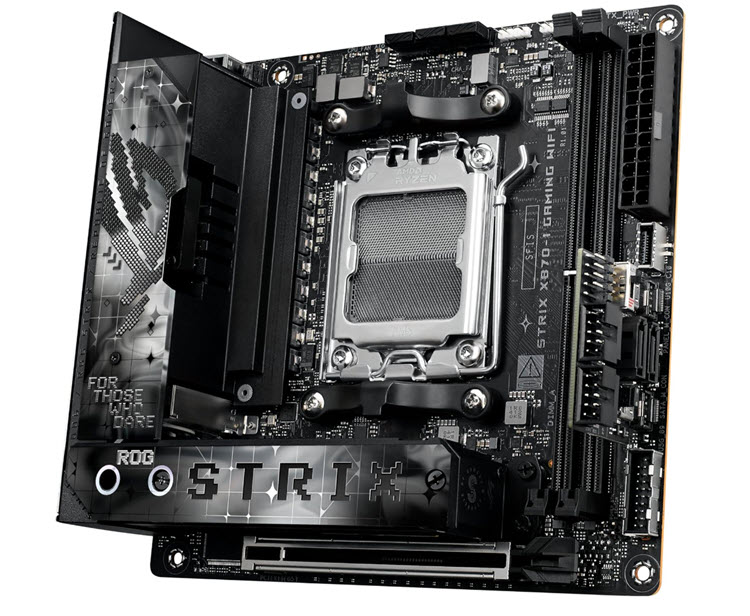

ROG STRIX X870-I GAMING WIFI

The ROG Strix X870-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor, enhanced by the ROG Strix Hive II for streamlined control. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. AI COOLING II - Balance the thermals and acoustics of any build with a single click.

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

The Strix X870-I is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

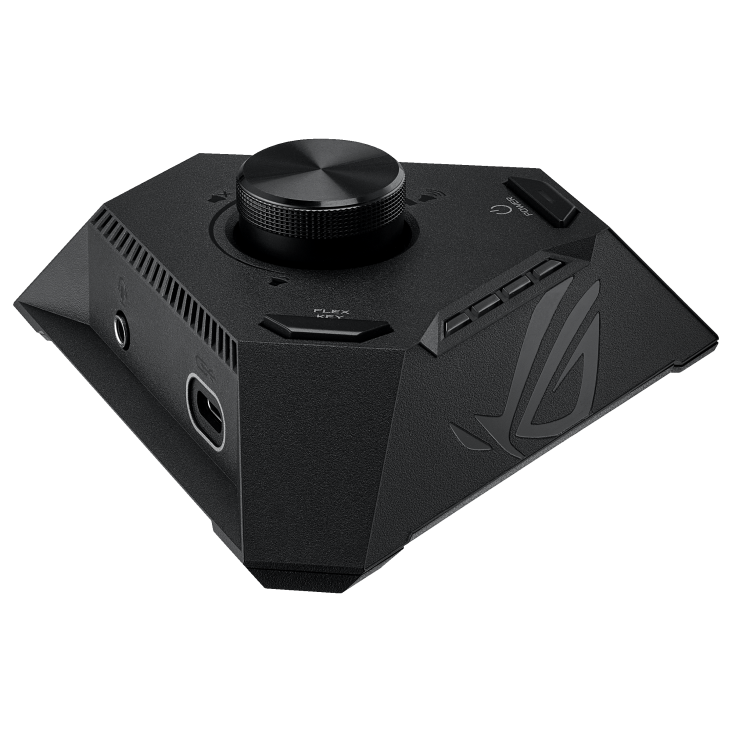

The ROG Hive II is an exclusive accessory designed to deliver user-friendly access to hardware and software features.

The ROG FPS card groups I/O onto a vertically-mounted card, saving valuable motherboard space and tidying cable management.

Form Factor

• Mini-ITX Form Factor, 6.7 inch x 6.7 inch (17 cm x 17 cm)

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD X870

Memory

• 2 x DIMM slots, max. 96 GB, DDR5, Supports up to; 8400+MT/s(OC) with Ryzen™ 9000 Series Processors, 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM, Dual channel memory architecture, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP)

Graphics

• 1 x HDMI™ port**, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***, * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a

Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors, 1 x PCIe 5.0 x16 slot, AMD Ryzen™ 8000 Series Desktop Processors, 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*, * Specifications vary by CPU types.

Storage

• Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*, AMD Ryzen™ 9000 & 7000 Series Desktop Processors*, M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors*, M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode), AMD X870 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 2 x SATA 6Gb/s ports*** * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1 *** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.

LAN

• 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate. Bluetooth® v5.4

Audio

• ROG Strix Hive II Audio Features - ROG Hyper-Grounding Technology - ESS® SABRE9260Q DAC - Silver-plated audio jacks - Dedicated audio PCB layers

USB Ports

• Rear USB (Total 10 ports); 2 x USB4® (40Gbps) port(s)(2 x USB Type-C®), 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®), 3 x USB 2.0 port(s) (3 x Type-A), Front USB (Total 3 ports); 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, * USB Type-C® power delivery output: max. 5V/3A, ROG STRIX HIVE II(Total 2 ports); 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®), ROG FPS Card (Total 3 ports); 2 x USB 2.0 headers additional 3 USB 2.0 ports

OS Support

• Windows® 11 64-bit

Internal I/O Ports

• Fan and Cooling Related; 1 x 4-pin CPU Fan header(s), 1 x 4-pin AIO Pump header(s), 1 x 4-pin Chassis Fan header(s), Power Related; 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector, Storage Related; 2 x M.2 slots (Key M), USB; 1 x USB 10Gbps connector (supports USB Type-C® ), 1 x USB 5Gbps header support(s) 2, additional USB 5Gbps ports, Miscellaneous; 2 x Addressable Gen 2 headers, 1 x 2-pin Power Button header, 1 x Thermal Sensor header, 2 x USB Type-C® connectors to install ROG FPS card, ROG FPS card; 2 x SATA 6Gb/s ports, 1 x CPU Over Voltage jumper, 1 x Front Panel header, 1 x Alteration PCIe Mode switch, 2 x USB 2.0 headers support 3, additional USB 2.0 ports

Back I/O Ports

• 2 x USB4® (40Gbps)(2 x USB Type-C®), 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG STRIX HIVE II), 3 x USB 2.0 port(s) (2 x Type-A), 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button

Software Features

• ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software, Armoury Crate - AIDA64 (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving, ASUS Driver Hub, ASUS GlideX, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial), UEFI BIOS, AI Overclocking Guide, ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI, BIOS EZ Mode - ASUS, MyHotkey, FlexKey, Dynamic OC Switcher

Special Features

• ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot, ASUS Thermal Solution - M.2 heatsink - Aluminum backplate, ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM, Aura Sync - Addressable Gen 2 header(s), ROG STRIX HIVE II, 1 x USB Type-C® connects to motherboard, 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®), 1 x Headphone jack with mic in, 1 x Power button, 1 x FlexKey button, 1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables; 1 x Panel cable, 1 x ROG USB2.0 splitter cable, 2 x SATA 6Gb/s cables, ROG FPS Card; 1 x ROG FPS Card, ROG STRIX HIVE II; 1 x ROG STRIX HIVE II, 1 x USB Type-C® power connection cable, Miscellaneous; 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package(s), 1 x ROG key chain, 1 x ROG Strix stickers, 1 x M.2 rubber package(s), Documentation; 1 x Quick start guide
