Q670EI-IM-A Industrial Motherboard

Form Factor

• Mini ITX, 170 x 170 mm

CPU

• LGA1700 for Intel® 12th Gen. Core™ i9/ i7/ i5/ i3/ Pentium®/ Celeron® Processors

Chipset

• Intel® Q670E

Memory

• 2 x SO-DIMM, DDR5 4800MHz, 64GB Max

Graphics

• 3 x DP 1.4, up to 8K resolution, 1 x HDMI, Supports 4 displays configuration by multiple interface

Expansion Slots

• 1 x PCIe 5.0 x16 Slot (Bifurcation Support: 16x to 8x+8x),

Storage

• 1 x M.2 M key, Type 2242/2260/2280 (PCIe x4 & SATA mode), 4 x SATA Gen 3.0, Up to 6Gb/s, Support RAID 0,1,5,10

LAN

• 2 x RJ45, 1 x Intel® i210AT (co-lay i211AT), 1 x Intel® I225LM (Intel vPro supported)

Wireless & Bluetooth

• 1 x M.2 E key, Type 2230 for WIFI/BT device (PCIe & CNVi)

Audio

• Realtek ALC897 High Definition Audio

USB Ports

• 4 x USB 2.0 (Typ A), 3 x USB 3.2 Gen2 (2 x Type A, 1 x Type C), 1 x USB 3.2 Gen1 (Typ A)

OS Support

• Windows® 10 (64bit ) Linux Ubuntu, RedHatEnterprise, Fedora Workstation, OpenSUSE

Internal I/O Ports

• USB 3.2 Gen1, 1 x USB3.2 Gen1 Stick Connector 1 xHeaderSupport Additional 2 x USB3.2 Gen1Ports, USB 2.0 1 x Header Support Additional 2 x USB 2.0 Ports, CPU Fan/ Chassis Fan 1 x Header(PWM Mode) / 1 x Header(PWM Mode), Disable ME - 1 x Header, LVDS/eDP selection - 1 x Header, Panel SW - 1 x Header, Front Panel Audio (AAFP) - 1 x Header, System Panel - 1 x Header(10-1 Pin), SP/DIF - 1 x Header, Chassis Intrusion - 1 x Header, Speaker - 1 x Header, Clear CMOS - 1 x Header, LPC Debug - 1 x Header, GPIO - 1 x Header (8 Bit)

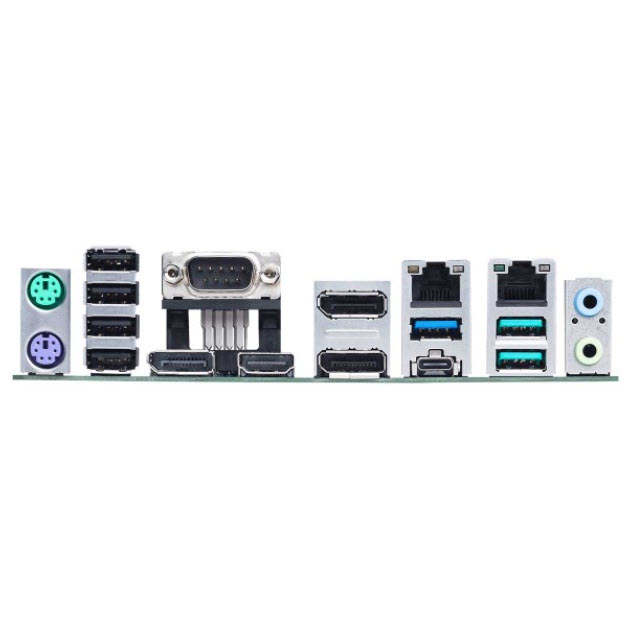

Back I/O Ports

• Display Port x 3, HDMI x 1, USB 3.2 Gen2 x 3 (2 x Type A, 1 x Type C), USB 3.2 Gen1 x 1 Type-A, USB 2.0 x 4 Type-A, Ethernet - 2 x RJ45, Serial Port x 1 (RS232/422/485), Audio jack - x 2, PS/2 - 1 x Keyboard, 1 x Mouse

Serial Port Header

• 4 x COM Header(1 xRS232/422/485,3 x RS232)

TPM

• 1 x SPI TPM header

Other Specs

• IAMT/vPRO Yes, Power Type AXT 12V DC-IN (supported by additional cable)
