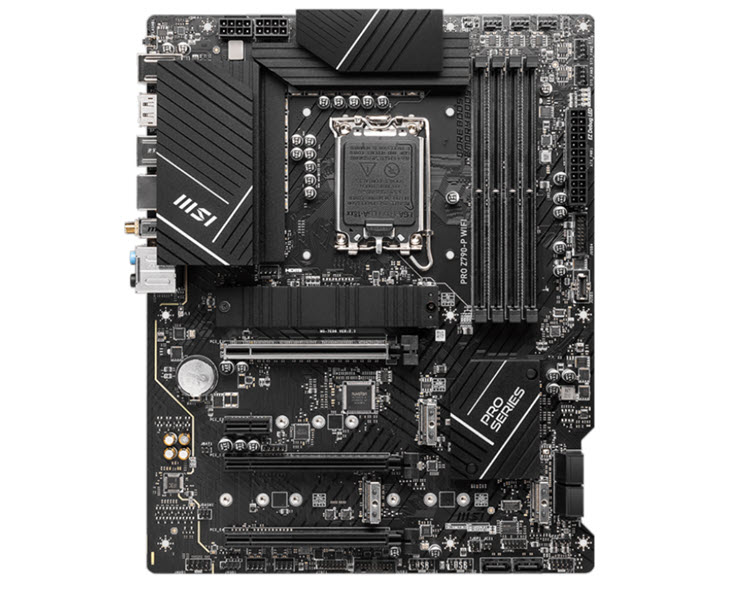

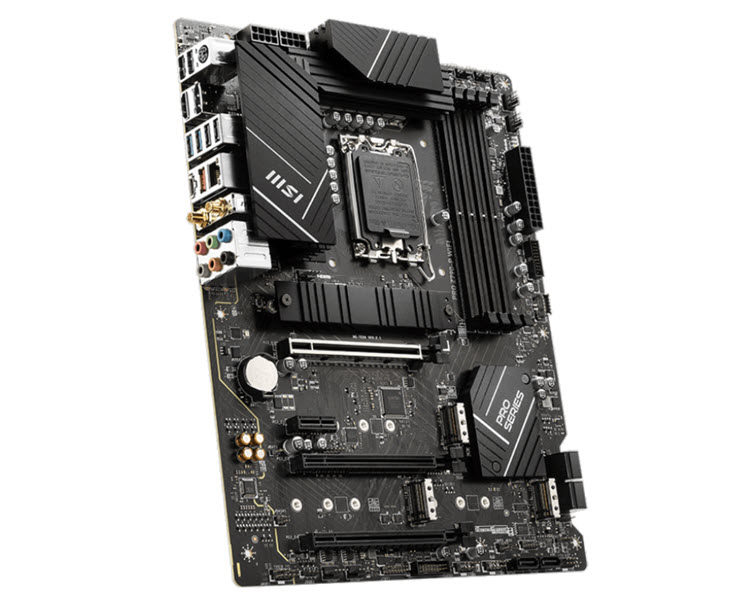

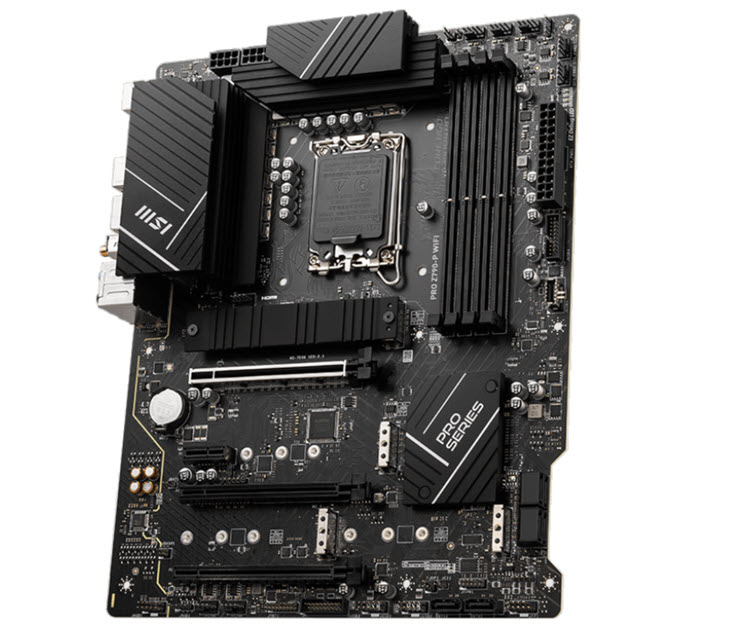

PRO Z790-P WIFI

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Form Factor

• ATX, 243.84mmx304.8mm

CPU

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700

Chipset

• INTEL Z790

Memory

• 4 x DDR5, Maximum Memory Capacity 256 GB, Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz, Supports Intel® XMP 3.0 OC, Supports Dual-Controller Dual-Channel mode, Supports non-ECC, un-buffered memory

Graphics

• 1 x HDMI™, Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*, 1 x DisplayPort, Support DP 1.4, maximum resolution of 4K 60Hz*, *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

• 3 x PCI-E x16 slot, 1 x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset),

Storage

• 4 x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, 6 x SATA 6G, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage device

LAN

• Intel® 2.5Gbps LAN

Wireless & Bluetooth

• Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3, FIPS, FISMA

Audio

• Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

USB Ports

• 4 x USB 2.0 (Rear), 4 x USB 2.0 (Front), 4 x USB 2.0 ports (Rear), 4 x USB 2.0 ports (Front), 2 x USB 5Gbps Type A (Rear), 4 x USB 5Gbps Type A (Front), 1 x USB 10Gbps Type A (Rear), 1 x USB 10Gbps Type C (Front), 1 x USB 20Gbps Type C (Rear)

OS Support

• Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

• 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x CPU Fan, 1 x Pump Fan, 6 x System Fan, 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x Tuning Controller connector(JDASH), 2 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB), 1 x TPM pin header(Support TPM 2.0), 4 x USB 2.0 ports, 4 x USB 5Gbps Type A ports, 1 x USB 10Gbps Type C ports

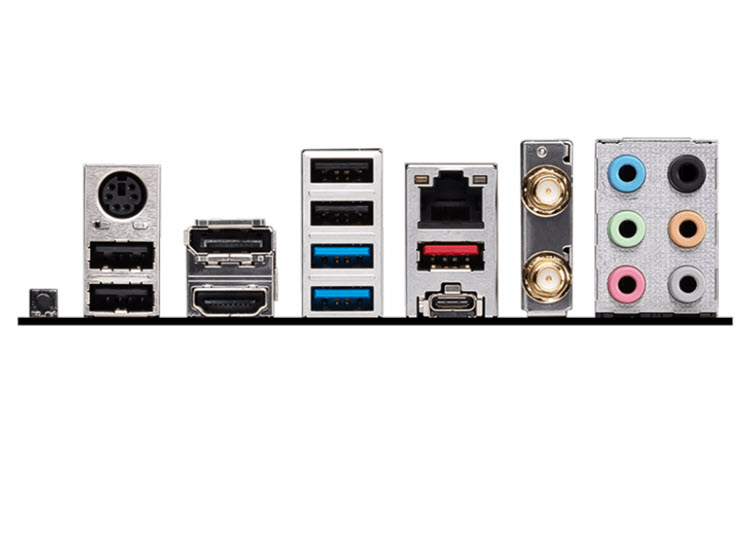

Back I/O Ports

• Keyboard / Mouse, DisplayPort, 4 x USB 2.0, 2.5G LAN, Wi-Fi / Bluetooth, 6 x Audio Connectors, Flash BIOS Button, HDMI™, 2 x USB 3.2 Gen 1 5Gbps (Type-A), 1 x USB 3.2 Gen 2x2 20Gbps (Type-C), 1 x USB 3.2 Gen 2 10Gbps (Type-A)

LED FEATURE

• 4 x EZ Debug LED
