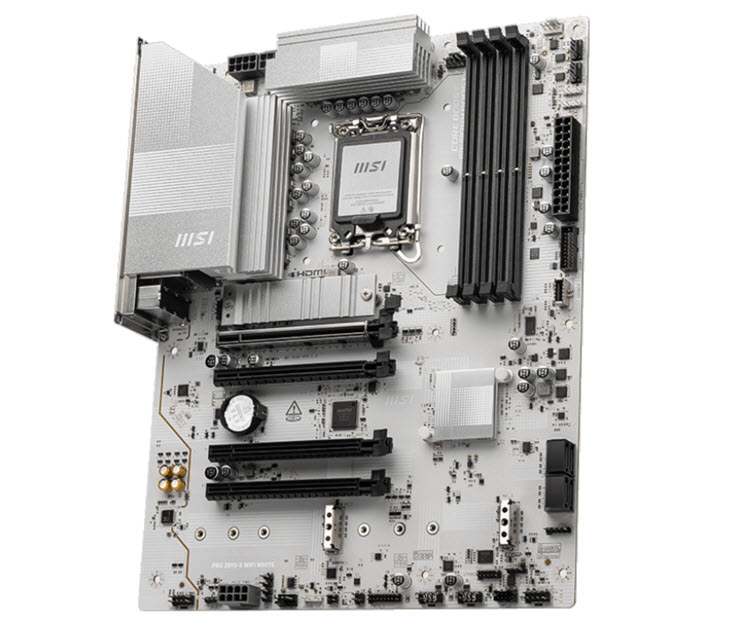

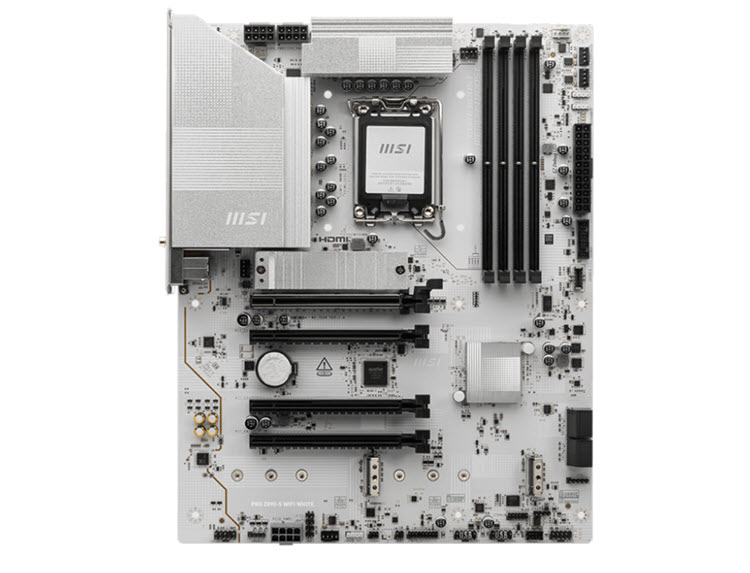

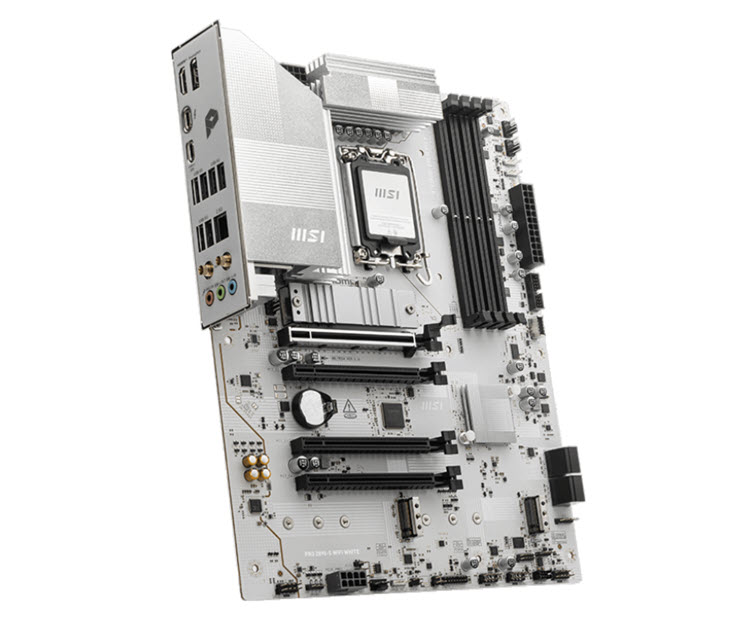

PRO Z890-S WIFI WHITE
PRO Z890-S WIFI WHITE offers a simple design with a harmonious silver-white color scheme that perfectly matches white PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
AI Engine provides several categories for you to sync the applications you want to perform and automatically optimizing
them to create a comfortable environment.
Al LAN MANAGER optimizes networking performance and minimizes latency, providing a seamless online experience.
Frozr AI Cooling automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
AI Boost is an MSI exclusive feature. It overclocks NPU
to improve higher AI performance.
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+1+1+1 digital power phases. With dual power connectors, PRO Z890-S WIFI WHITE is ready for the challenge of high-end processors.
Form Factor
CPU
-
Supports Intel® Core™ Ultra Processors (Series 2),
LGA 1851
Chipset
Memory
-
4 x DDR5 UDIMM, Maximum Memory Capacity 256 GB,
Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s,
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8600+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports Intel® POR Speed and JEDEC Speed,
Supports Memory Overclocking and Intel® XMP 3.0,
Supports Dual-Controller Dual-Channel mode,
Supports Non-ECC, Un-buffered memory,
Supports CUDIMM,
The DIMM slots on this motherboard have double-sided latches.
Graphics
-
1 x HDMI™,
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*,
1 x DisplayPort,
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*,
1 x Type-C DisplayPort,
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*,
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots
-
4 x PCI-E x16 slot,
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU),
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset),
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset),
PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
Storage
-
3 x M.2,
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices,
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices,
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices,
4 x SATA 6G,
*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices,
Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices
Onboard Thunderbolt
- 1 x Thunderbolt4 ports (Rear),
Supports up to 40Gbps transfer rate with Thunderbolt devices,
Supports up to 20Gbps transfer rate with USB4 devices,
Supports up to 10Gbps transfer rate with USB 3.2 devices,
Supports up to 5V/3A,15W power charging,
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices,
Supports up to 8K display
LAN
- Realtek® 8125D 2.5Gbps LAN
Wireless & Bluetooth
- Intel® Wi-Fi 7,
The Wireless module is pre-installed in the M.2 (Key-E) slot,
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps,
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be,
Supports Bluetooth® 5.4, MLO, 4KQAM
Audio
- Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
USB Ports
-
4x USB 2.0 (Front)
6x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 20Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
OS Support
Internal I/O Ports
- 1 x Thunderbolt5 card connector(JTBT5, support RTD3),
1 x Power Connector(ATX_PWR),
2 x Power Connector(CPU_PWR),
1 x Power Connector(PCIE_PWR 8pin),
1 x CPU Fan,
1 x Combo Fan (Pump_Sys Fan),
4 x System Fan,
2 x Front Panel (JFP),
1 x Chassis Intrusion (JCI),
1 x Front Audio (JAUD),
1 x Tuning Controller connector(JDASH),
3 x Addressable V2 RGB LED connector (JARGB_V2),
1 x RGB LED connector(JRGB),
1 x TPM pin header(Support TPM 2.0),
4 x USB 2.0 ports,
2 x USB 5Gbps Type A ports,
1 x USB 20Gbps Type C ports

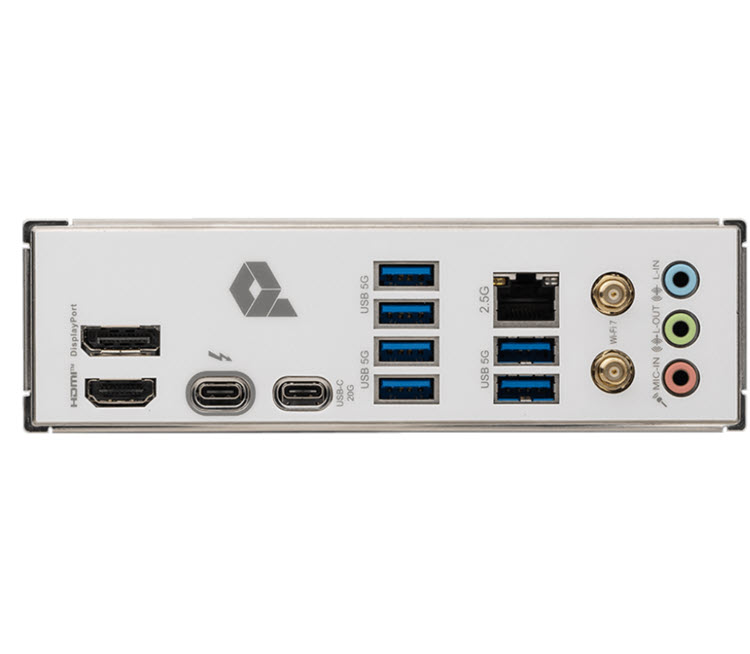

Back I/O Ports
- DisplayPort, 4 x USB 5Gbps Type-A, 2.5G LAN, Wi-Fi / Bluetooth, 3 x Audio Connectors, HDMI™, 1 x Thunderbolt™ 4 40Gbps (Type-C), 1 x USB 20Gbps Type-C, 2 x USB 5Gbps Type-A
LED FEATURE
