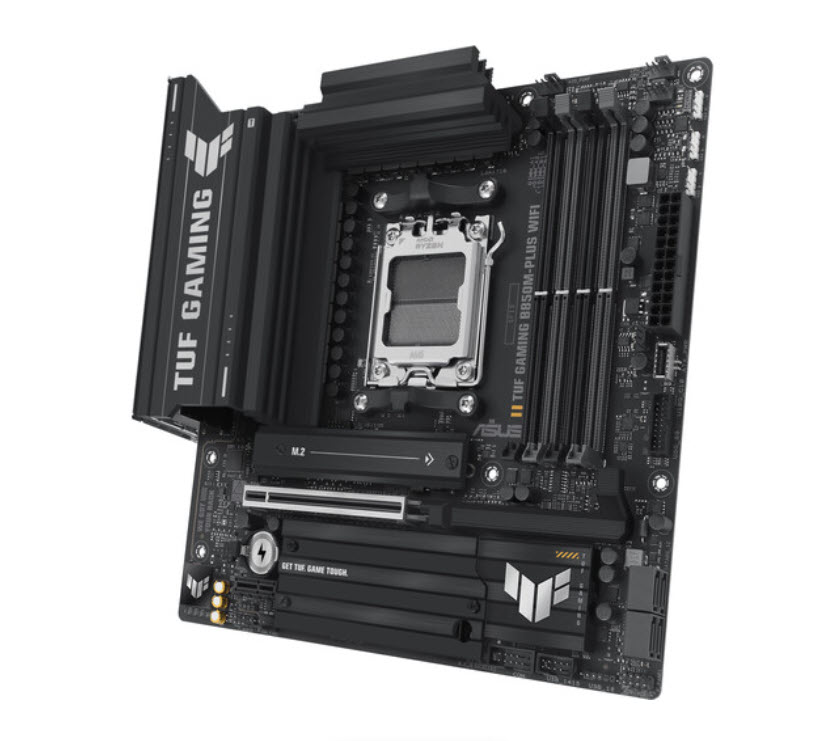

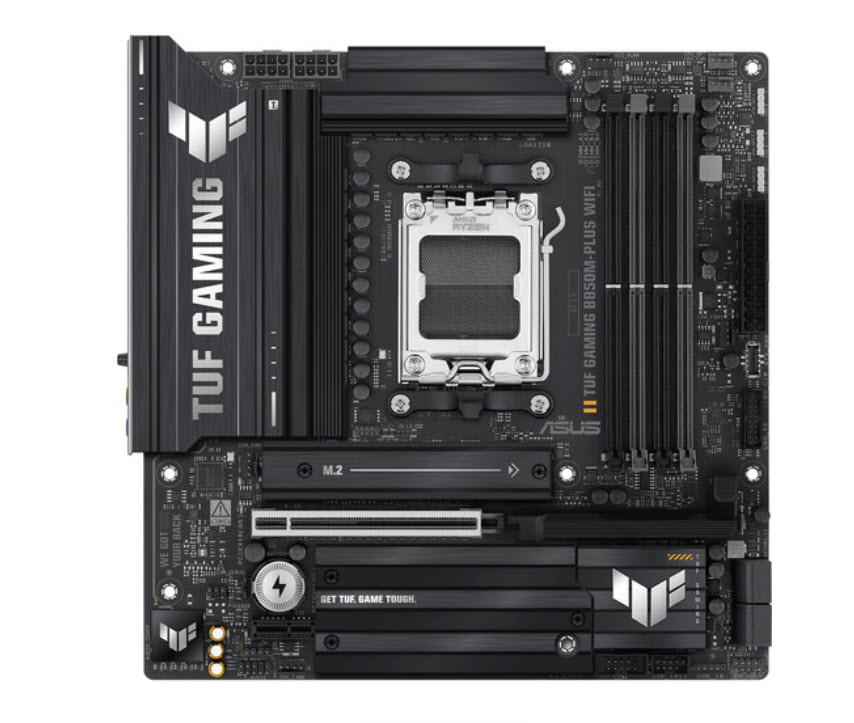

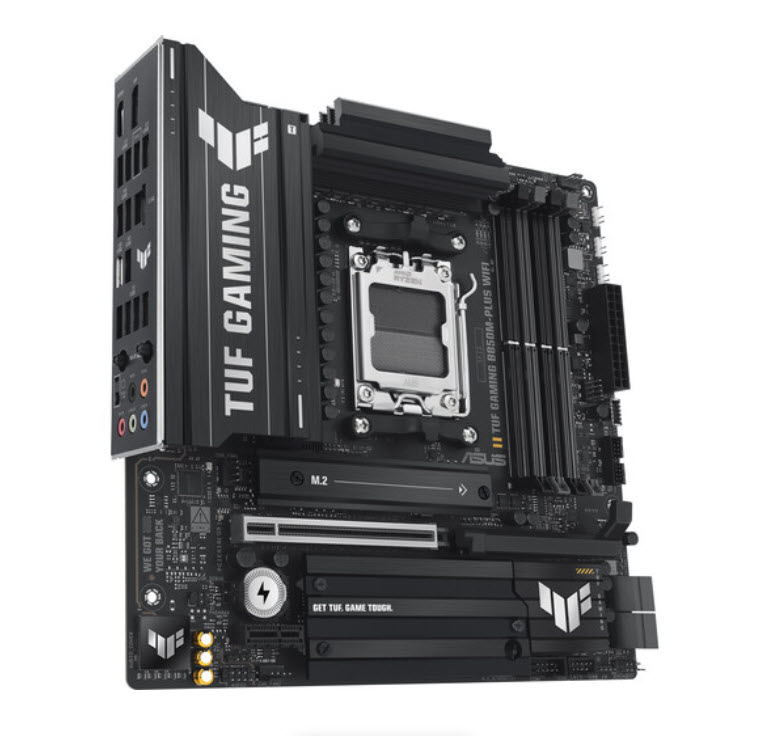

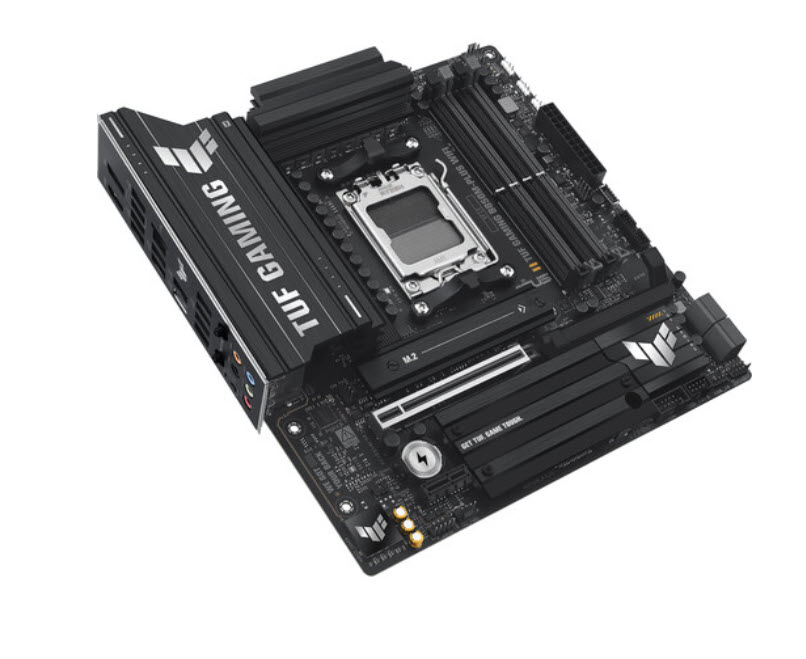

TUF GAMING B850M-PLUS WIFI

ASUS TUF GAMING B850M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Form Factor

• micro-ATX Form Factor - 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD B850 Chipset

Memory

• 4 x DIMM slots, max. 192 GB, DDR5 - Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* - Dual channel memory architecture - Supports AMD Extended Profiles for Overclocking (EXPO™) - ASUS Enhanced Memory Profile (AEMP)

Graphics

• 1 x DisplayPort** - 1 x HDMI™ port*** - ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors* - 1 x PCIe 5.0 x16 slot (supports x16 mode) - AMD Ryzen™ 8000 Series Desktop Processors - 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** - AMD B850 Chipset - 1 x PCIe 4.0 x1 slot - * Please check the PCIe bifurcation table on the support site. ** Specifications vary by CPU types

Storage

• 3 x M.2 slots and 4 x SATA 6Gb/s ports - AMD Ryzen™ 9000 & 7000 Series Desktop Processors - M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - AMD Ryzen™ 8000 Series Desktop Processors - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset - M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - * Specifications vary by CPU types. AMD RAIDXpert2 Technology - Ryzen™ 9000 Series Processors: RAID 0/1/5/10 - Ryzen™ 8000 Series Processors: RAID 0/1 - Ryzen™ 7000 Series Processors: RAID 0/1/10

LAN

• 1 x Realtek 2.5Gb Ethernet - TUF LANGuard

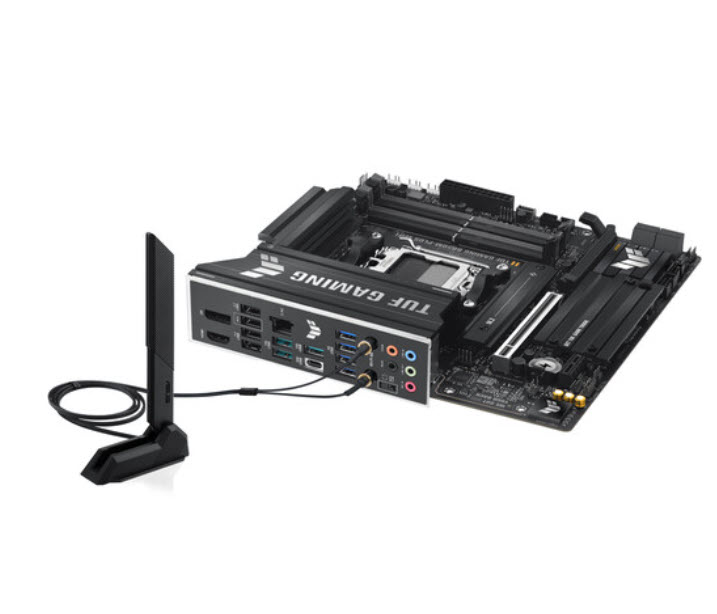

Wireless & Bluetooth

• Wi-Fi 6E - 2x2 Wi-Fi 6E (802.11ax) - Supports 2.4/5/6GHz frequency band - Bluetooth® v5.3

Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* - Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

USB Ports

• Rear USB (Total 12 ports) - 1 x USB 20Gbps port (1 x USB Type-C®) - 3 x USB 10Gbps ports (3 x Type-A) - 4 x USB 5Gbps ports (4 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) - Front USB (Total 6 ports) - 1 x USB 10Gbps connector (supports USB Type-C®) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 2 x USB 2.0 headers support 3 additional USB 2.0 ports - * USB Type-C® power delivery output: max. 5V/3A.

OS Support

• Windows 11, Windows 10 64-bit

Internal I/O Ports

• Fan and Cooling Related - 1 x 4-pin CPU Fan header - 1 x 4-pin CPU OPT Fan header - 1 x 4-pin AIO Pump header - 3 x 4-pin Chassis Fan headers - Power Related - 1 x 24-pin Main Power connector - 2 x 8-pin +12V CPU Power connectors - Storage Related - 3 x M.2 slots (Key M) - 4 x SATA 6Gb/s ports - USB - 1 x USB 10Gbps connector (supports USB Type-C® ) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 2 x USB 2.0 headers support 3 additional USB 2.0 ports - Miscellaneous - 3 x Addressable Gen 2 headers - 1 x Clear CMOS header - 1 x Chassis Intrusion header - 1 x COM Port header - 1 x Front Panel Audio header (F_AUDIO) - 1 x 10-1 pin Front Panel System headed

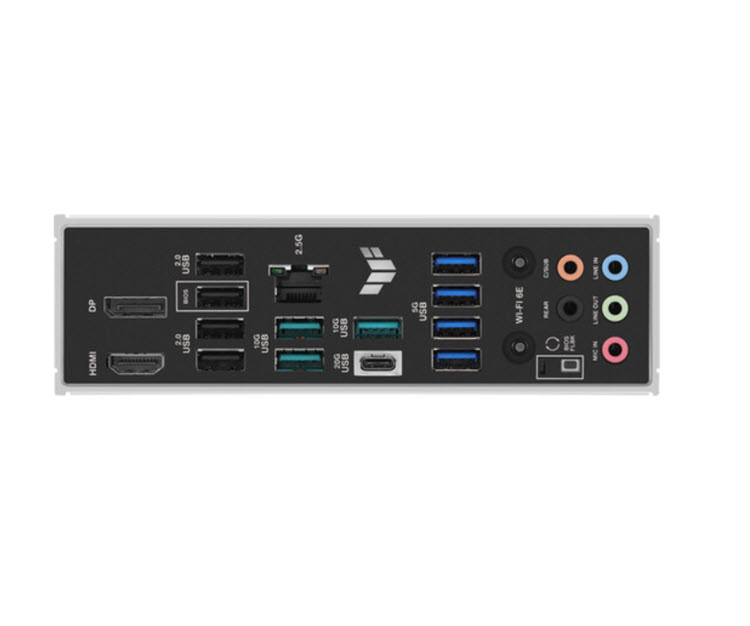

Back I/O Ports

• 1 x USB 20Gbps port (1 x USB Type-C®) - 3 x USB 10Gbps ports (3 x Type-A) - 4 x USB 5Gbps ports (4 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) - 1 x DisplayPort - 1 x HDMI™ port - 1 x Wi-Fi module - 1 x Realtek 2.5Gb Ethernet port - 5 x Audio jacks - 1 x BIOS FlashBack™ button

Special Features

• ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O - ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Thermal Solution - M.2 heatsink - VRM heatsink design - ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeDIMM - Aura Sync - Addressable Gen2 headers

Software Features

• ASUS Exclusive Software - Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - ASUS DriverHub - ASUS GlideX - TurboV Core - TUF GAMING CPU-Z - DTS Audio Processing - Adobe Creative Cloud (Free Trial) - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) - UEFI BIOS - ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables - 2 x SATA 6Gb/s cables - Miscellaneous - 1 x ASUS WiFi Q-Antenna - 1 x TUF GAMING sticker - 2 x M.2 rubber packages - 1 x Screw package for M.2 SSD - Documentation - 1 x Quick start guide

Warranty

• 3 Years Limited
