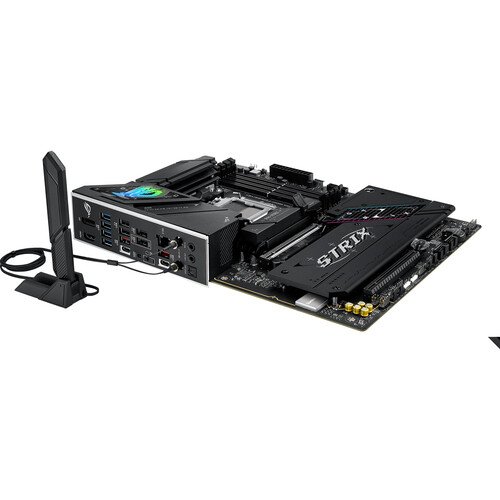

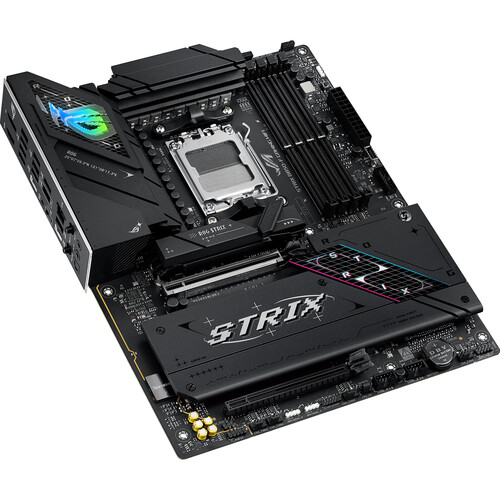

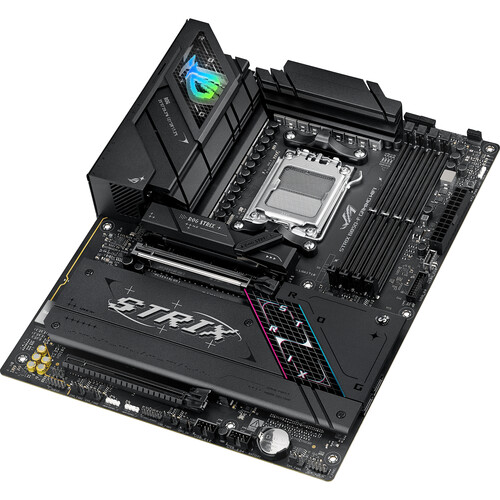

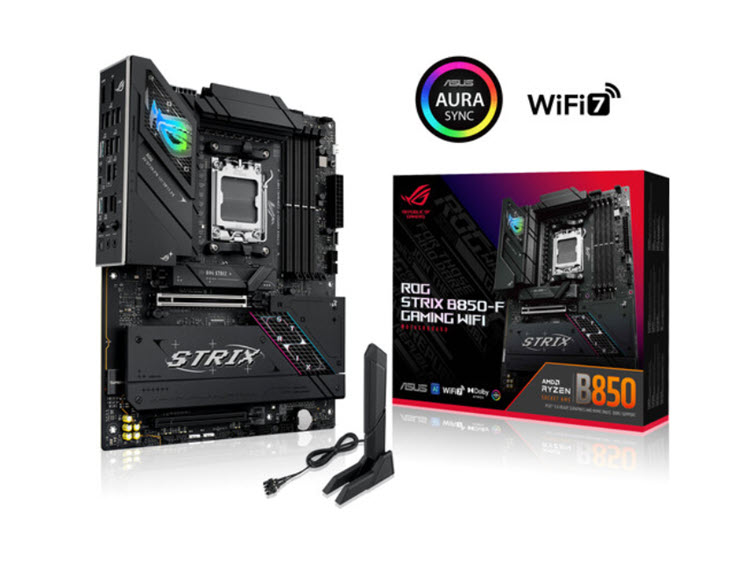

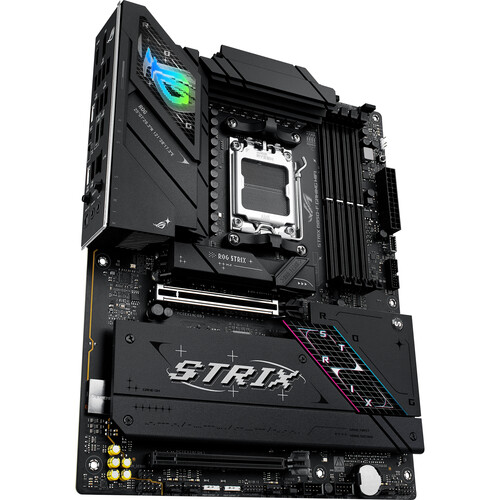

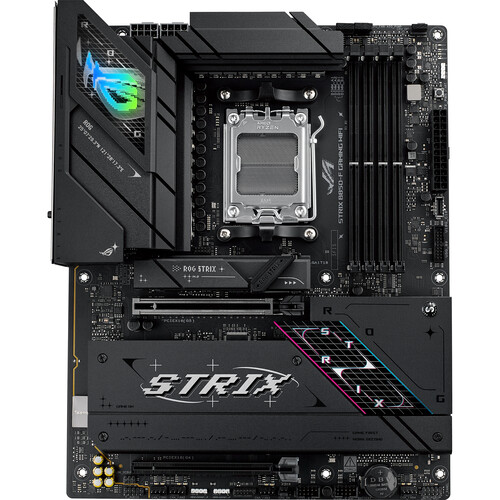

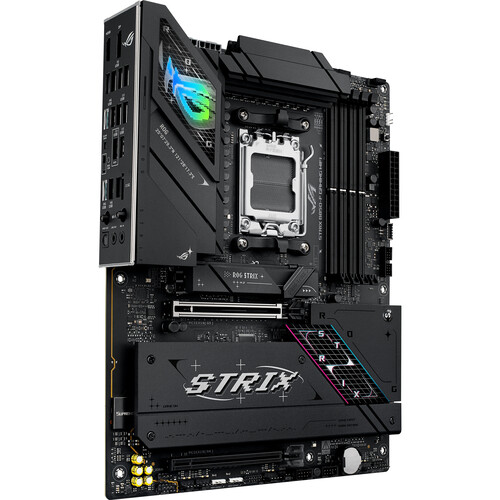

ROG STRIX B850-F GAMING WIFI

The ROG Strix B850-F is sleek and understated, empowering you to seamlessly combine it with a wide range of system components. Its deep black PCB and matching metallic heatsinks create a dark and intense look, while a touch of RGB lighting on the I/O shroud lets you either stay under the radar or make a bold statement.

When only the fastest will do, a Strix B850 motherboard delivers. With USB 20Gbps onboard along with robust overclocking capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD 800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7

PBO ENHANCEMENT - AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

DDR5 DOMINATION - The Strix B850-F is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support. AEMP - ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

Form Factor

• ATX Form Factor - 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD B850 Chipset

Memory

• 4 x DIMM slots, max. 192 GB, DDR5, Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors - ECC and Non-ECC, Un-buffered DIMM - Dual channel memory architecture - Supports AMD Extended Profiles for Overclocking (EXPO™) - ASUS Enhanced Memory Profile (AEMP)

Graphics

• 1 x DisplayPort* - 1 x HDMI™ port** - * Supports max. 8K@30Hz as specified in DisplayPort 1.4 - ** Supports 4K@60Hz as specified in HDMI 2.1

Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors - 1 x PCIe 5.0 x16 slot with Q-Release Slim - AMD Ryzen™ 8000 Series Desktop Processors - 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)* - AMD B850 Chipset - 1 x PCIe 4.0 x16 slot (supports x4 mode)** - * Specifications vary by CPU types. - ** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3

Storage

• 4 x M.2 slots and 2 x SATA 6Gb/s ports - AMD Ryzen™ 7000 & 9000 Series Desktop Processors - M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) - M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) - AMD Ryzen™ 8000 Series Desktop Processors - M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) - M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)* - AMD B850 Chipset - M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)** - M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) - 2 x SATA 6Gb/s ports - * Specifications vary by CPU types. - ** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled. - AMD RAIDXpert2 Technology - Ryzen™ 9000 Series Processors: RAID 0/1/5/10 - Ryzen™ 8000 Series Processors: RAID 0/1 - Ryzen™ 7000 Series Processors: RAID 0/1/10

LAN

• 1 x Intel® 2.5Gb Ethernet - ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7 - 2x2 Wi-Fi 7 (802.11be) - Supports 2.4/5/6GHz frequency band - Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. - Bluetooth® v5.4

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel - Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

USB Ports

• Rear USB (Total 12 ports) - 1 x USB 20Gbps port (1 x USB Type-C®) - 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) - 4 x USB 5Gbps ports (4 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) - Front USB (Total 7 ports) - 1 x USB 10Gbps connector (supports USB Type-C®) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports - * USB Type-C® power delivery output: max. 5V/3A

OS Support

• Windows 11

Internal I/O Ports

• Fan and Cooling Related - 1 x 4-pin CPU Fan header - 1 x 4-pin CPU OPT Fan header - 1 x 4-pin AIO Pump header - 4 x 4-pin Chassis Fan headers - Power Related - 1 x 24-pin Main Power connector - 2 x 8-pin +12V CPU Power connector - Storage Related - 4 x M.2 slots (Key M) - 2 x SATA 6Gb/s ports - USB - 1 x USB 10Gbps connector (supports USB Type-C®) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports - Miscellaneous - 3 x Addressable Gen 2 headers - 1 x CPU Over voltage jumper - 1 x Front Panel Audio header (F_AUDIO) - 1 x Power button - 1 x 10-1 pin Front System Panel header - 1 x Thermal Sensor header - 1 x Thunderbolt™ (USB4®) header

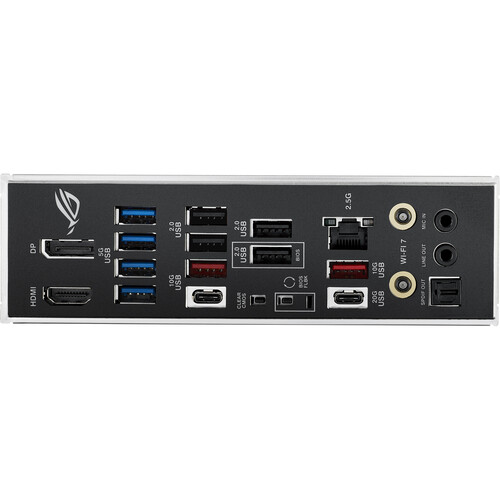

Back I/O Ports

• 1 x USB 20Gbps port (1 x USB Type-C®), 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®), 4 x USB 5Gbps ports (4 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet port, 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button

Special Features

• Extreme Engine Digi+ - 5K Black metallic capacitors - ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot - ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM - Aura Sync - Addressable Gen 2 headers

Software Features

• ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - ASUS Exclusive Software - Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - HWiNFO - Power Saving - ASUS DriverHub - ASUS GlideX - TurboV Core - Adobe Creative Cloud (Free Trial) - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) - UEFI BIOS - ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables - 2 x SATA 6Gb/s cables - Miscellaneous - 1 x ASUS WiFi Q-Antenna - 1 x Cable ties package - 1 x M.2 Q-Latch package - 1 x M.2 Q-Slide package - 1 x ROG key chain - 1 x ROG Strix stickers - 4 x M.2 rubbers - Documentation - 1 x Quick start guide

Warranty

• 3 Years Limited
