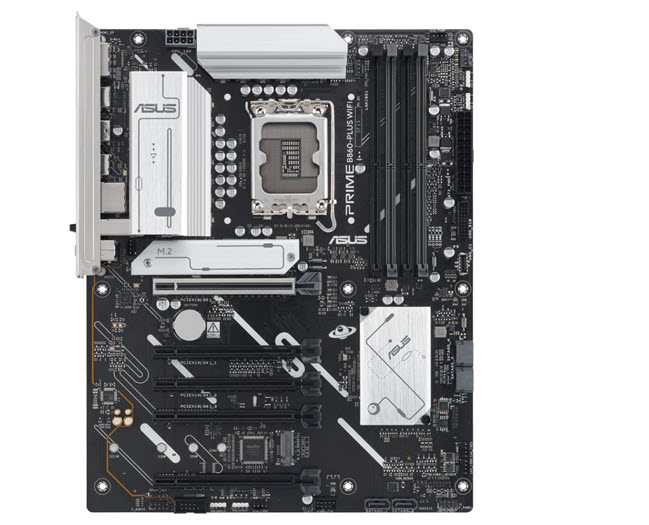

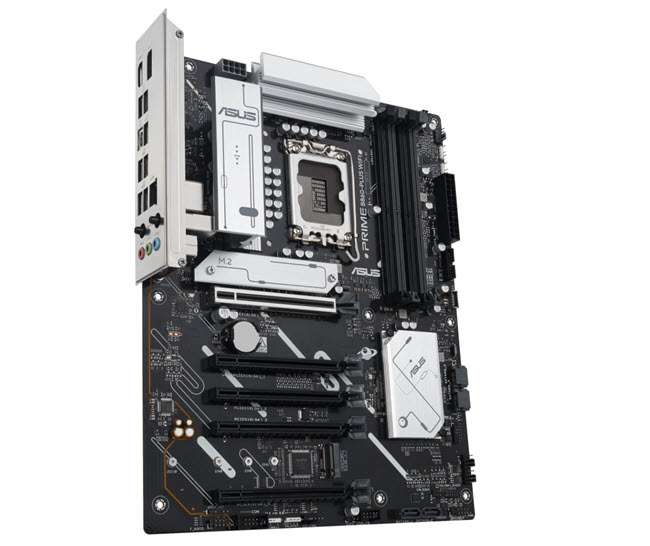

PRIME B860-PLUS WIFI

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. * CEC Tier II ready

ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME B860-PLUS WIFI is designed to meet the needs of high-core-count CPUs. It features 8(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

The PRIME B860-PLUS WIFI offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

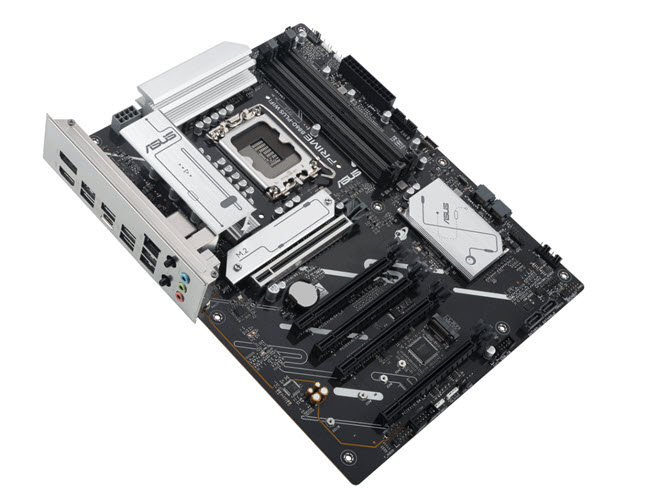

The PRIME B860-PLUS WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

This motherboard offers a versatile range of connectivity, including support for WiFi 6E, PCIe 5.0 slot and an arsenal of USB ports which includes Type-C® connections.

Built-in WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6 GHz band, WiFi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.

The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

The PRIME B860-PLUS WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware. Three Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.

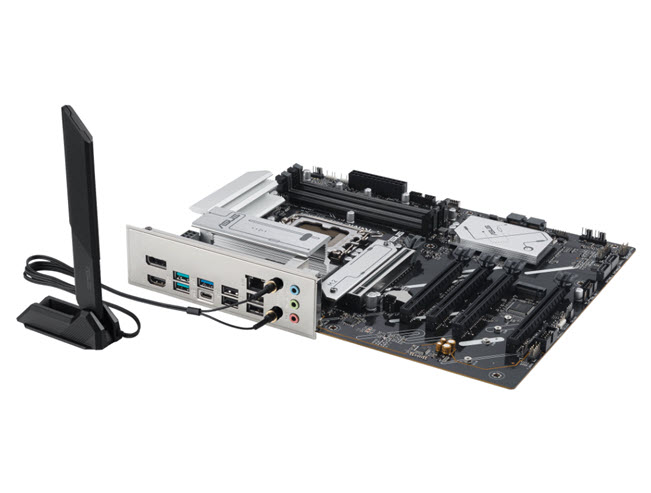

Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

Form Factor

• ATX Form Factor - 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

CPU

• Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** - ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® B860 Chipset

Memory

• 4 x DIMM slots, max. 256 GB, DDR5 - Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* - Dual channel memory architecture - DIMM Fit - Supports Intel® Extreme Memory Profile (XMP) memory module - ASUS Enhanced Memory Profile III (AEMP III) - * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort** - 1 x HDMI™ port*** - ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2) - 1 x PCIe 5.0 x16 slot (PCIEX16(G5)) - Intel® B860 Chipset - 1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode) - 3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode) -

Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* - Intel® Core™ Ultra Processors (Series 2)* - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) - Intel® B860 Chipset - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

LAN

• 1 x Realtek 2.5Gb Ethernet - ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E - 2x2 Wi-Fi 6E (802.11ax) - Supports 2.4/5/6GHz frequency band - Bluetooth® v5.3

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

USB Ports

• Rear USB (Total 8 ports) - 1 x USB 20Gbps port (1 x USB Type-C®) - 2 x USB 10Gbps ports (2 x Type-A) - 1 x USB 5Gbps port (1 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) - Front USB (Total 5 ports) - 1 x USB 5Gbps port (1 x USB Type-C®) - 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports - 1 x USB 2.0 header supports 2 additional USB 2.0 ports

OS Support

• Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

Internal I/O Ports

• Fan and Cooling related - 1 x 4-pin CPU Fan header - 1 x 4-pin CPU OPT Fan header - 1 x 4-pin AIO Pump header - 4 x 4-pin Chassis Fan headers - Power related - 1 x 24-pin Main Power connector - 1 x 8-pin +12V CPU Power connector - Storage related - 2 x M.2 slots (Key M) - 4 x SATA 6Gb/s ports - USB - 1 x USB 5Gbps connector (supports USB Type-C®) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 1 x USB 2.0 header supports 2 additional USB 2.0 ports - Miscellaneous - 3 x Addressable Gen 2 headers - 1 x Aura RGB header - 1 x Clear CMOS header - 1 x Chassis Intrusion header - 1 x COM Port header - 1 x Front Panel Audio header (F_AUDIO) - 1 x S/PDIF Out header - 1 x SPI TPM header (14-1pin) - 1 x 10-1 pin Front System Panel header - 1 x Thunderbolt™ (USB4®) header

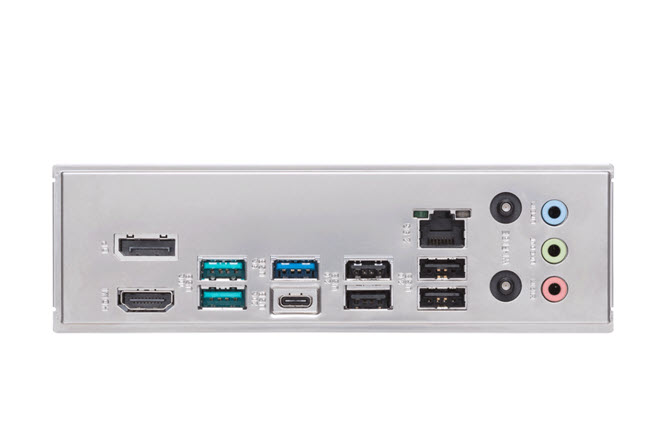

Back I/O Ports

• 1 x USB 20Gbps port (1 x USB Type-C®) - 2 x USB 10Gbps ports (2 x Type-A) - 1 x USB 5Gbps port (1 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) - 1 x DisplayPort - 1 x HDMI™ port - 1 x Wi-Fi module - 1 x Realtek 2.5Gb Ethernet port - 3 x Audio jacks

Software Features

• ASUS Exclusive Software - Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - ASUS AI Advisor - ASUS DriverHub - ASUS GlideX - ASUS CPU-Z - Adobe Creative Cloud (Free Trial) - Norton 360 Deluxe (60 Days Free Trial) - WinRAR (40 Days Free Trial) - UEFI BIOS - ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey

Special Features

• ASUS 5X PROTECTION III -DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O - ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot - ASUS Thermal Solution - M.2 heatsink - VRM heatsink design - ASUS EZ DIY - ProCool - Pre-mounted I/O shield - Aura Sync - Aura RGB header - Addressable Gen 2 headers

BIOS

• 2 x 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

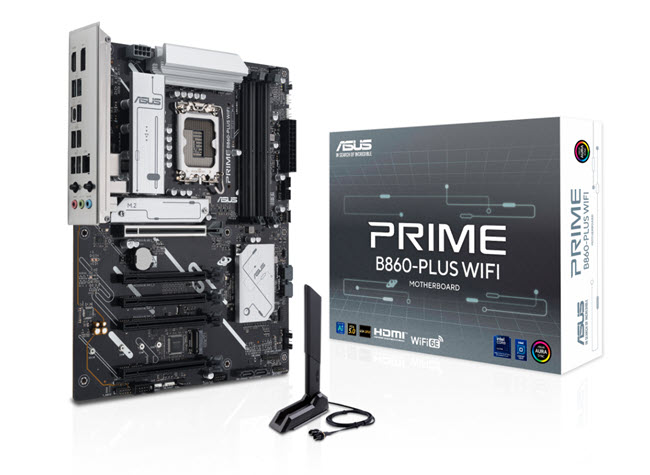

• Cables - 2 x SATA 6Gb/s cables - Miscellaneous - 1 x ASUS WiFi Q-Antenna - 1 x M.2 rubber package - 1 x Screw package for M.2 SSD - Documentation - 1 x Quick start guide

Warranty

• 3 Years
