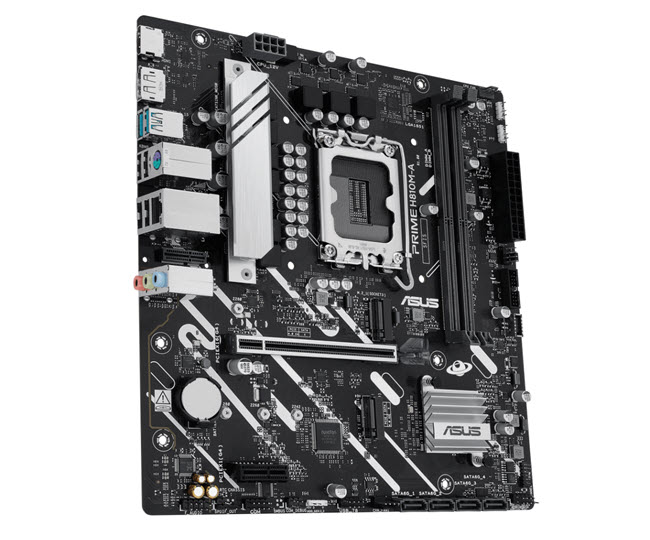

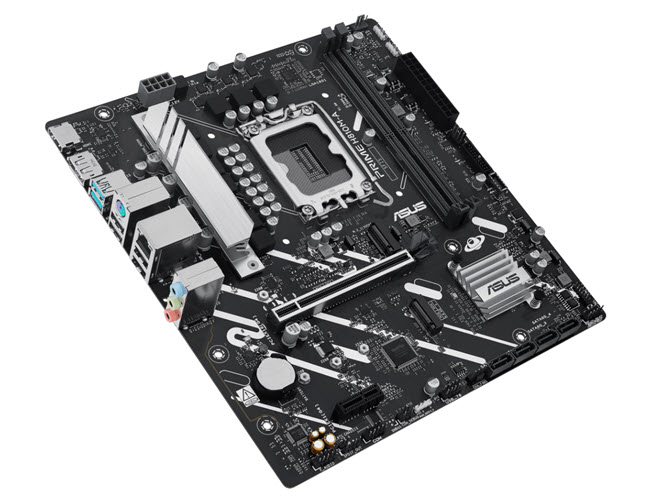

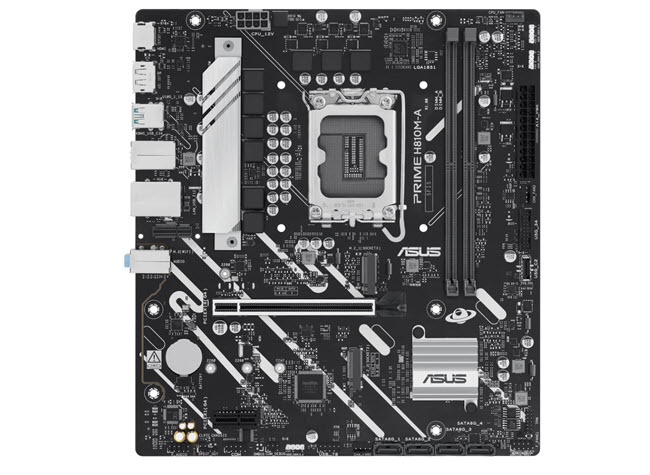

PRIME H810M-A CSM

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2).The PRIME H810M-A-CSM features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely. Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility. Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices.

Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2).The PRIME H810M-A-CSM features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

PRIME H810M-A-CSM offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 64Gbps via PCIe 4.0, one that supports 32Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

The PRIME H810M-A-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

This motherboard offers a versatile range of connectivity, including support for PCIe 4.0 M.2, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C® connection.

Form Factor

• micro-ATX Form Factor - 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)

CPU

• Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel® H810 Chipset

Memory

• 2 x DIMM slots, max. 128 GB, DDR5 - Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) - Dual channel memory architecture - DIMM Fit - Supports Intel® Extreme Memory Profile (XMP) memory module - ASUS Enhanced Memory Profile II (AEMP II)

Graphics

• 1 x DisplayPort** - 1 x HDMI™ port*** - ** Supports max. 4K@60Hz as specified in DisplayPort 1.4 - *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2) - 1 x PCIe 4.0 x16 slot - Intel® H810 Chipset - 1 x PCIe 4.0 x1 slot

Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports - Intel® H810 Chipset - M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) - 4 x SATA 6Gb/s ports

LAN

• 1 x Intel® 1Gb Ethernet port* - ASUS LANGuard - *With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.

Wireless & Bluetooth

• "V-M.2 slot only (Key E, CNVi & PCIe)* - * Wi-Fi module is sold separately."

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

USB Ports

• Rear USB (Total 6 ports) - 2 x USB 10Gbps ports (2 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) - Front USB (Total 5 ports) - 1 x USB 5Gbps connector (supports USB Type-C®)* - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 1 x USB 2.0 header supports 2 additional USB 2.0 ports - * USB Type-C® power delivery output: max. 5V/3A - ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

OS Support

• Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Internal I/O Ports

• Fan and Cooling Related - 1 x 4-pin CPU Fan header - 2 x 4-pin Chassis Fan headers - Power Related - 1 x 24-pin Main Power connector - 1 x 8-pin +12V CPU Power connector - Storage Related - 2 x M.2 slots (Key M) - 4 x SATA 6Gb/s ports - USB - 1 x USB 5Gbps connector (supports USB Type-C® ) - 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports - 1 x USB 2.0 header supports 2 additional USB 2.0 ports - Miscellaneous - 3 x Addressable Gen2 headers - 1 x Clear CMOS header - 1 x COM Port header - 1 x Front Panel Audio header (F_AUDIO) - 1 x S/PDIF Out header - 1 x SPI TPM header (14-1 pin) - 1 x 10-1 pin Front Panel System header

Back I/O Ports

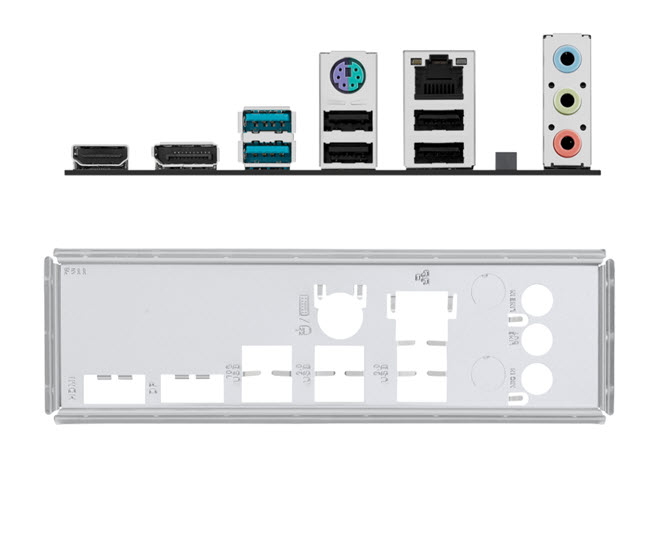

• 2 x USB 10 Gbps ports (2 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) - 1 x DisplayPort - 1 x HDMI™ port - 1 x Vertical M.2 slot (Key E) - 1 x Intel® 1Gb Ethernet port - 3 x Audio jacks - 1 x PS/2 keyboard/mouse combo port

Software Features

• ASUS Exclusive Software, Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - ASUS DriverHub - ASUS CPU-Z - Norton 360 Deluxe (60 Days Free Trial) - WinRAR (40 Days Free Trial) - UEFI BIOS - ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey

Special Features

• ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O - ASUS Q-Design - Q-DIMM - Q-Dashboard - Q-LED Core - Q-Slot - ASUS Thermal Solution - VRM heatsink design - Aura Sync - Addressable Gen 2 headers

BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables - 2 x SATA 6Gb/s cables - Miscellaneous - 1 x I/O shield - 1 x Screw package for M.2 SSD - Documentation - 1 x ACC Express activation key card - 1 x Quick start guide

Warranty

• 3 Years
