MPG B850 EDGE TI WIFI

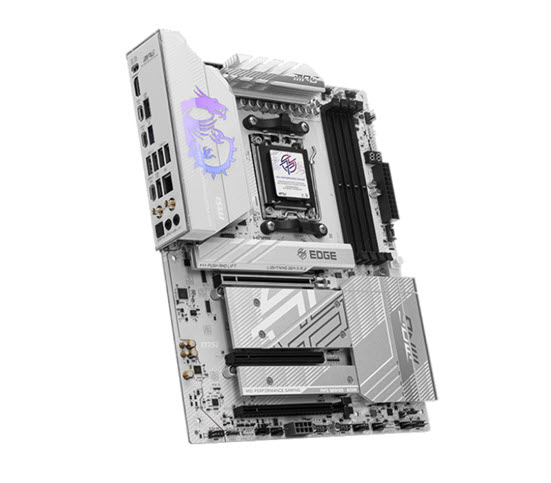

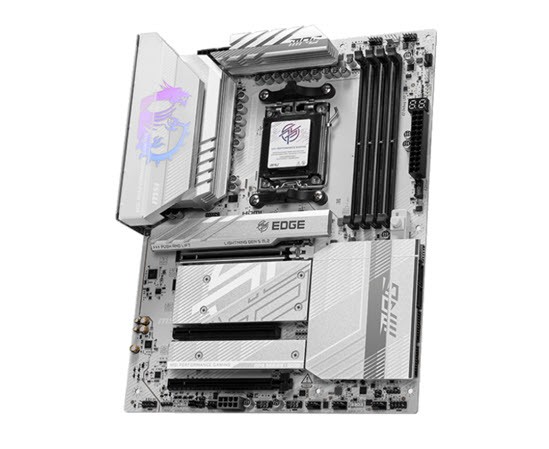

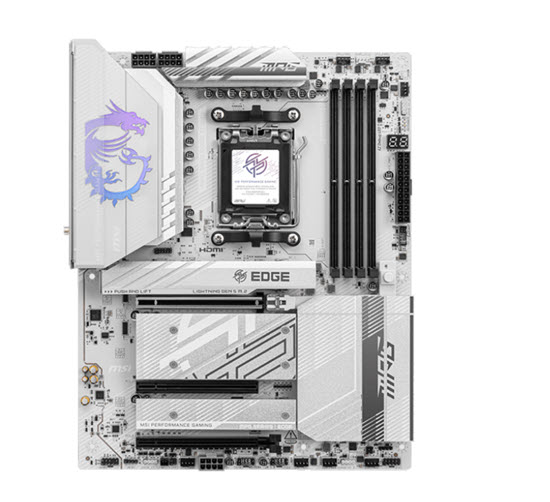

MPG B850 EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme B850 ATX motherboard for AMD Ryzen™ 9000 series processors.

MSI's premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.x

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 Duet Rail Power System. Combining dual power connectors and 80A Smart Power Stage, MPG B850 EDGE TI WIFI is ready for the challenge of high-end processors.

Form Factor

• ATX - 304.8mmx243.84mm

CPU

• Socket AM5 - Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Chipset

• B850

Memory

• 4 x DDR5 UDIMM, Maximum Memory Capacity 256 GB - Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s - Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed - Supports Memory Overclocking and AMD EXPO - Supports Dual-Channel mode - Supports Non-ECC, Un-buffered memory - Supports CUDIMM, Clock Driver bypass mode only

Graphics

• 1 x HDMI™ Support HDMI™ 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

• 3x PCI-E x16 slot - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) - PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Storage

• 4 x M.2 - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices - M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices - 4 x SATA 6G - M.2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) - • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600 / 8400 Series processors) - • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) • Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices *RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU

LAN

• 1 x Realtek® 8126 5G LAN

Wireless & Bluetooth

• Wi-Fi 7 - The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps - Supports 802.11 a/ b/ g/ n/ ac/ ax/ be - Supports Bluetooth® 5.4, MLO, 4KQAM

Audio

• Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output

USB Ports

• 4 x USB 2.0 (Rear), 4 x USB 2.0 (Front), 1 x USB 5Gbps Type A (Rear), 4 x USB 5Gbps Type A (Front), 2 x USB 10Gbps Type A (Rear), 3 x USB 10Gbps Type C (Rear), 1 x USB 20Gbps Type C (Front)

OS Support

• Windows® 11 64-bit

Internal I/O Ports

• 1 x Power Connector(ATX_PWR) - 2 x Power Connector(CPU_PWR) - 1 x Power Connector(PCIE_PWR 8pin) - 1 x CPU Fan - 1 x Combo Fan (Pump_Sys Fan) - 6 x System Fan - 1 x EZ Conn-header (JAF_2) - 2 x Front Panel (JFP) - 1 x Chassis Intrusion (JCI) - 1 x Front Audio (JAUD) - 3 x Addressable V2 RGB LED connector (JARGB_V2) - 1 x RGB LED connector(JRGB) - 1 x TPM pin header(Support TPM 2.0) - 4 x USB 2.0 ports - 4 x USB 5Gbps Type A ports - 1 x USB 20Gbps Type C ports

Back I/O Ports

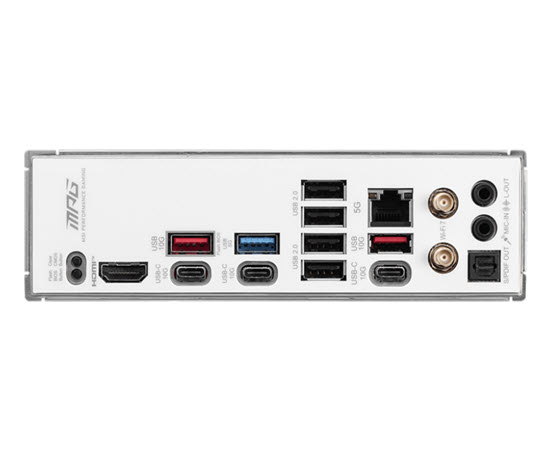

• Clear CMOS Button, 2 x USB 10Gbps Type-A, 1 x USB 5Gbps Type-A, 4 x USB 2.0, 5G LAN, Wi-Fi / Bluetooth, 2 x HD Audio Connectors, Flash BIOS Button, HDMI™, 2 x USB 10Gbps Type-C, 1 x USB 10Gbps Type-C, Optical S/PDIF Out

LED FEATURE

• 4 x EZ Debug LED, 1 x EZ Digit Debug LED, 1 x EZ Memory Detection LED

Warranty

• 3 Years
