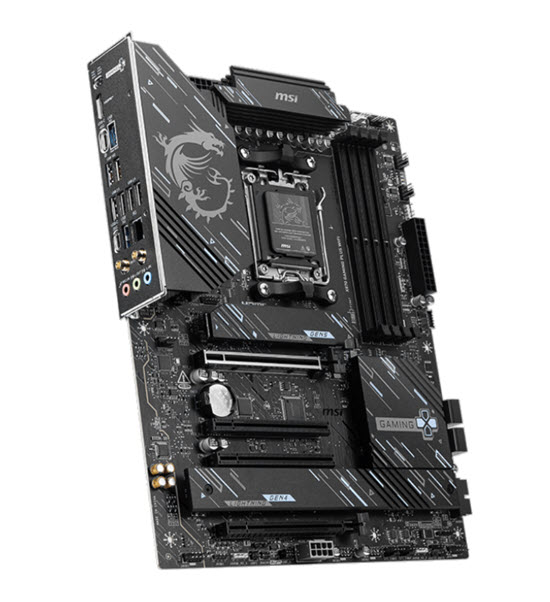

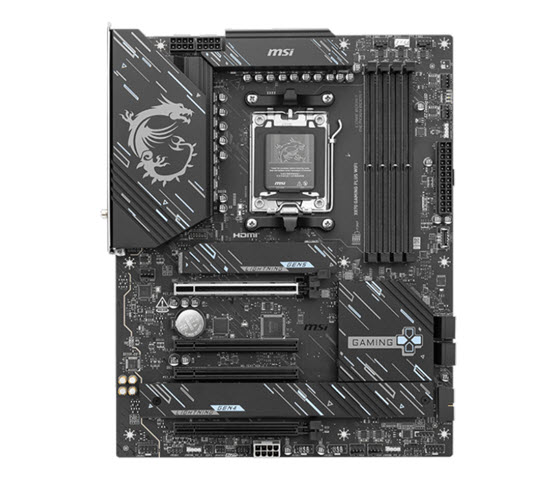

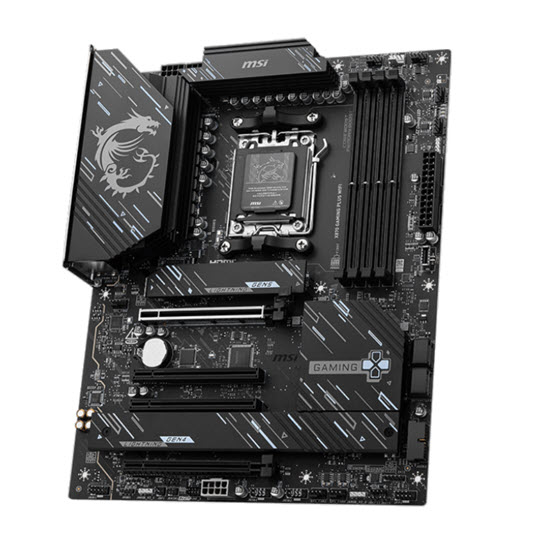

X870 GAMING PLUS WIFI

X870 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

MSI's exclusive EZ M.2 Shield Frozr II and EZ M.2 CLIP II make M.2 installation seamless. Insert the SSD card into the slot and press it down to lock it in place with the clip. As fasten the SSD, flick the clip outwards and then the SSD is removed. The process is smooth, and you don't need to use your tools like before. One finger can give you perfect DIY experience.

Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, X870 GAMING PLUS WIFI is ready for the challenge of high-end processors.

When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Form Factor

• ATX - 243.84mmx304.8mm

CPU

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors - Socket AM5

Chipset

• AMD X870

Memory

• 4 x DDR5 UDIMM, Maximum Memory Capacity 256 GB - Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s - Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s - Supports AMD POR Speed and JEDEC Speed - Supports Memory Overclocking and AMD EXPO - Supports Dual-Channel mode - Supports Non-ECC, Un-buffered memory - Supports CUDIMM, Clock Driver bypass mode only

Graphics

• 1 x HDMI™ - Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1 x Type-C DisplayPort - USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

• 4 x PCI-E x16 slot - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) - PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) - PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) - PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) * PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.

Storage

• 3 x M.2 - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices - 4 x SATA 6G - M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

LAN

• Realtek® 8126VB 5G LAN

Wireless & Bluetooth

• Wi-Fi 7 - The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps - Supports 802.11 a/ b/ g/ n/ ac/ ax/ be - Supports Bluetooth® 5.4, MLO, 4KQAM

Audio

• Realtek® ALC897 - 7.1-Channel High Definition Audio

USB Ports

• 4 x USB 2.0 (Rear) - 4 x USB 2.0 (Front) - 2 x USB 5Gbps Type A (Rear) - 2 x USB 5Gbps Type A (Front) - 2 x USB 10Gbps Type A (Rear) - 1 x USB 10Gbps Type C (Front) - 1 x USB 20Gbps Type C (Rear) - 1 x USB 40Gbps Type C (Rear)

OS Support

• Windows® 11 64-bit

Internal I/O Ports

• 1 x Power Connector(ATX_PWR) - 2 x Power Connector(CPU_PWR) - 1 x Power Connector(PCIE_PWR 8pin) - 1 x CPU Fan - 1 x Combo Fan (Pump_Sys Fan) - 6 x System Fan - 1 x EZ Conn-header (JAF_1) - 2 x Front Panel (JFP) - 1 x Chassis Intrusion (JCI) - 1 x Front Audio (JAUD) - 1 x Tuning Controller connector(JDASH) - 3 x Addressable V2 RGB LED connector (JARGB_V2) - 1 x RGB LED connector(JRGB) - 1 x TPM pin header(Support TPM 2.0) - 4 x USB 2.0 ports - 2 x USB 5Gbps Type A ports - 1 x USB 10Gbps Type C ports

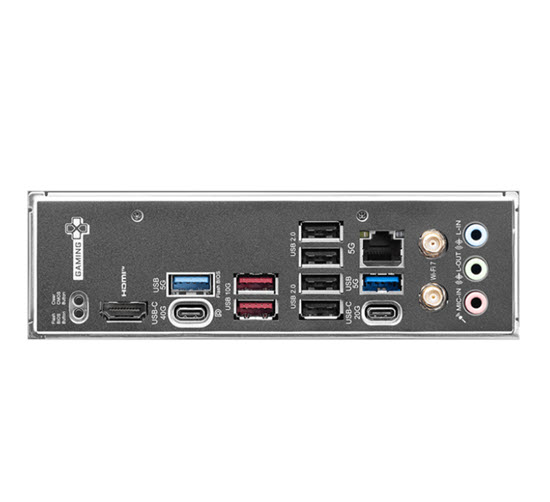

Back I/O Ports

• Clear CMOS Button - 1 x USB 5Gbps Type-A - 2 x USB 10Gbps Type-A - 4 x USB 2.0 - 5G LAN - Wi-Fi / Bluetooth - 3 x HD Audio connectors - Flash BIOS Button - HDMI™ - 1 x USB 40Gbps Type-C - 1 x USB 20Gbps Type-C - 1 x USB 5Gbps Type-A

LED FEATURE

• 4 x EZ Debug LED
