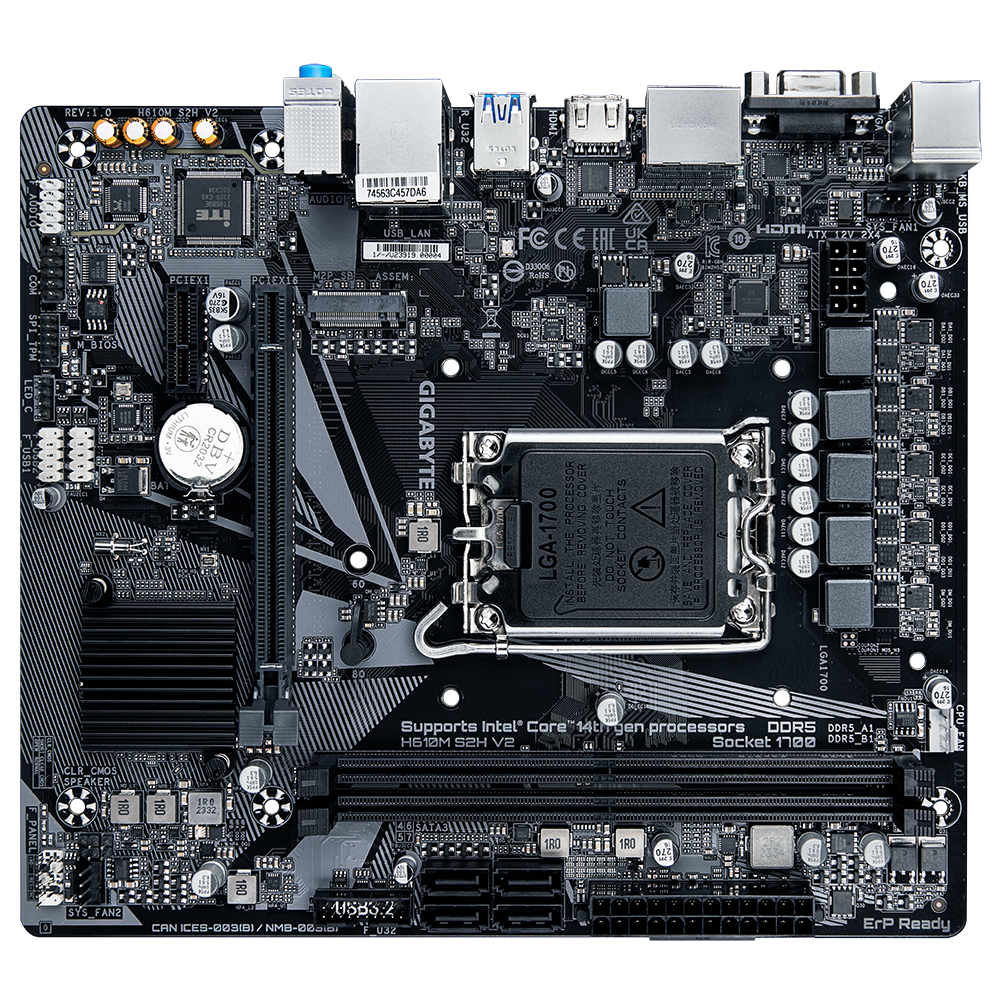

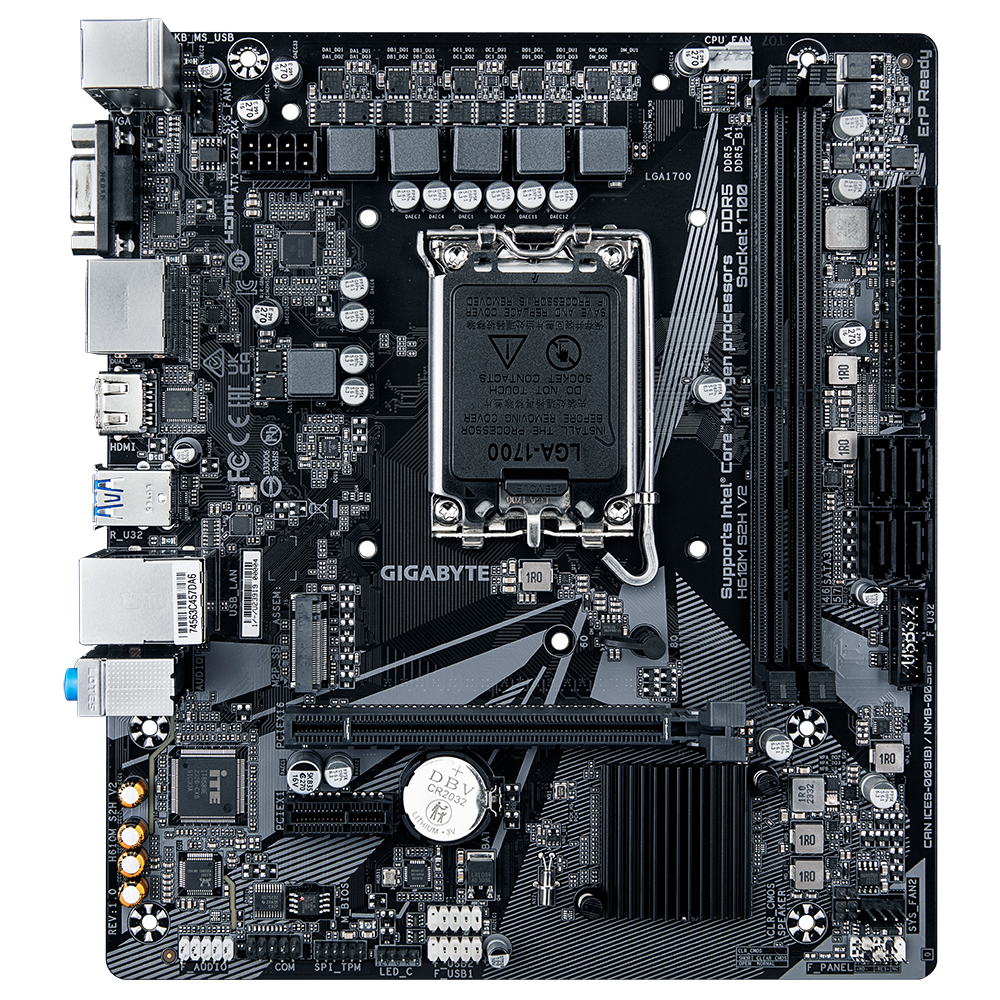

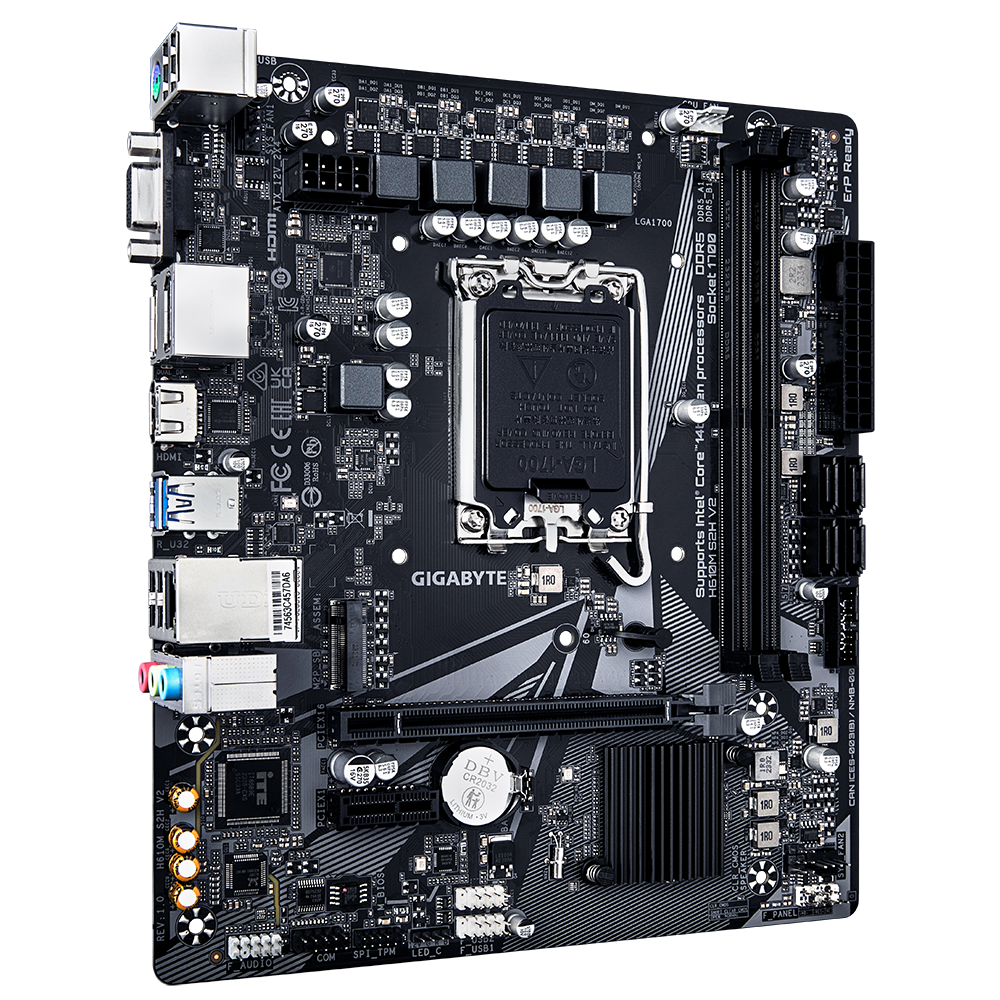

H610M S2H V2 mATX

GIGABYTE H610 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Form Factor

• mATX Form Factor; 22.3cm x 19.6cm

CPU

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors, L3 cache varies with CPU

Chipset

• Intel® H610 Express Chipset

Memory

• 14th and 13th Generation Intel® Core™ i9/i7 Pocessors: - Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules - 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory - Dual channel memory architecture - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules

Graphics

• Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 4096 x 2304 @60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time

Expansion Slots

• CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage

• Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors

LAN

• Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Audio

• Realtek® Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

USB Ports

• Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports on the back panel - Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers

OS Support

• Windows 11 64-bit, Windows 10 64-bit

Internal I/O Ports

• 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 2 x system fan headers - 1 x M.2 Socket 3 connector - 4 x SATA 6Gb/s connectors - 1 x RGB LED strip header - 1 x front panel header - 1 x front panel audio header - 1 x speaker header - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) - 1 x serial port header - 1 x Clear CMOS jumper - 1 x chassis intrusion header

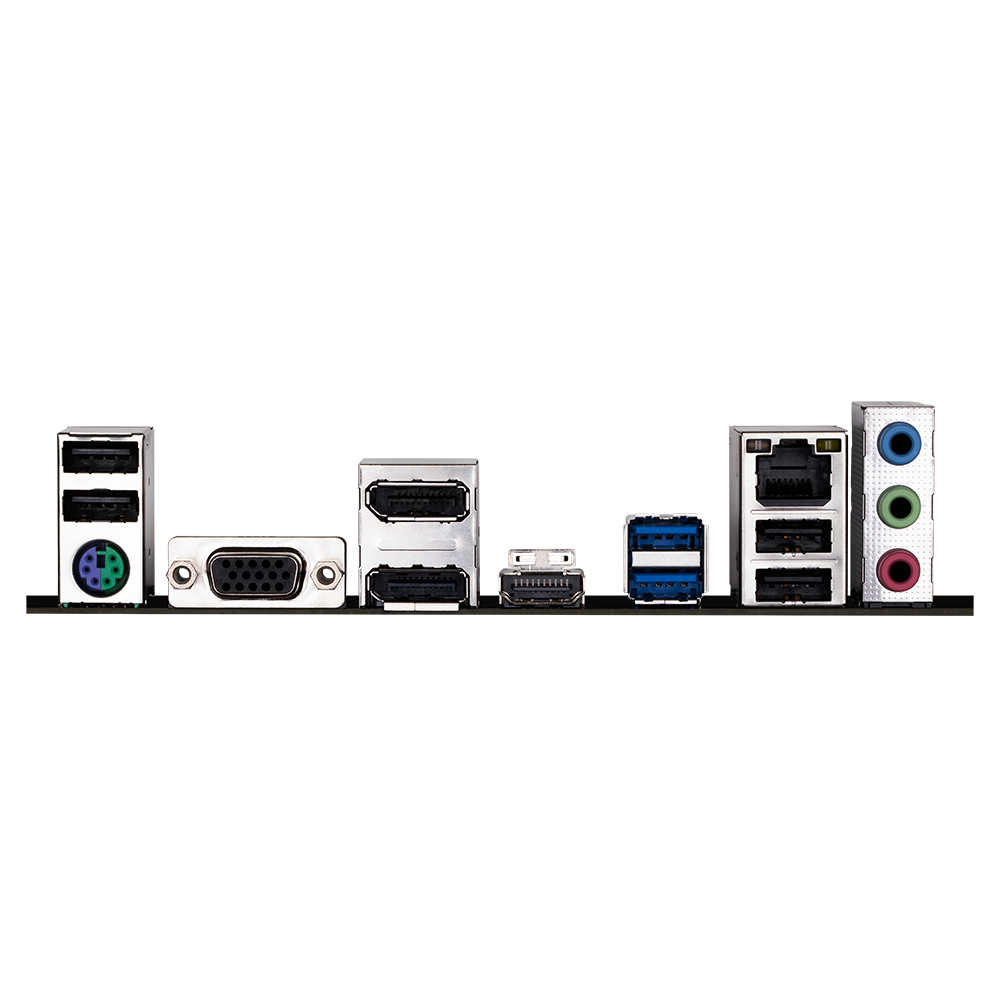

Back I/O Ports

• 1 x PS/2 keyboard/mouse port - 1 x D-Sub port - 2 x DisplayPort - 1 x HDMI port - 2 x USB 3.2 Gen 1 ports - 4 x USB 2.0/1.1 ports - 1 x RJ-45 port - 3 x audio jacks

I/O Controller

• iTE® I/O Controller Chip

H/W Monitoring

• Voltage detection - Temperature detection - Fan speed detection - Water cooling flow rate detection - Fan fail warning - Fan speed control - * Whether the fan speed control function is supported will depend on the fan you install.

BIOS

• 1 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - @BIOS - EasyTune - Smart Backup - System Information Viewer - Support for Q-Flash

Bundled Software

• Norton® Internet Security (OEM version) - LAN bandwidth management software

Warranty

• 3 Years Limited
