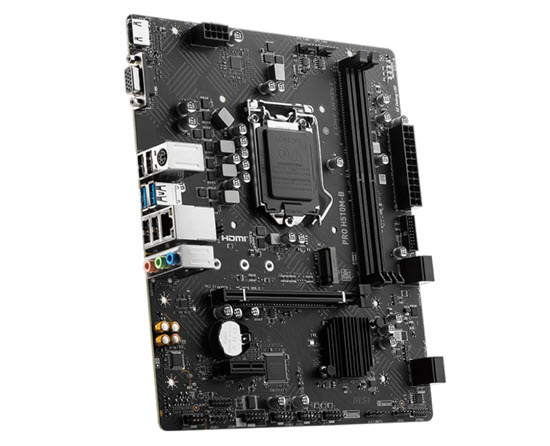

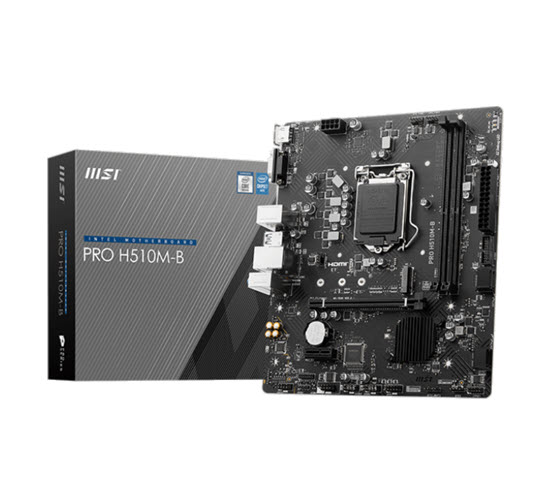

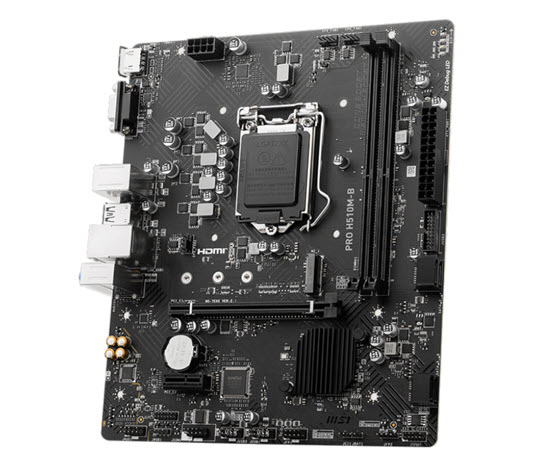

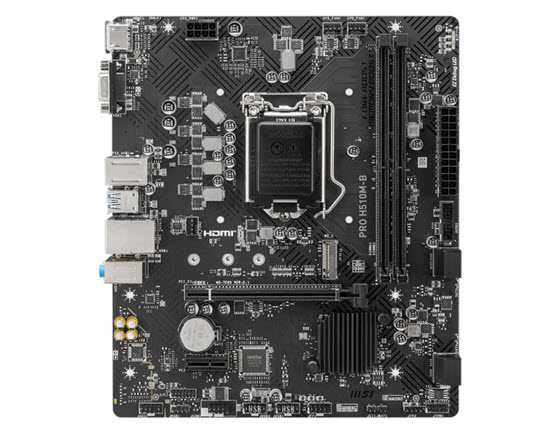

PRO H510M-B

Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket

Supports DDR4 Memory, up to 2933MHz (MAX)

Core Boost : With premium layout and digital power design to support more cores and provide better performance

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Audio Boost: Reward your ears with studio grade sound quality

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Form Factor

• mATX - 202mmx236mm

CPU

• Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket

Chipset

• INTEL H470

Memory

• 2 x DDR4, Maximum Memory Capacity 64 GB - Memory Support 2933/ 2666/ 2400/ 2133 MHz - Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU - Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU - Supports Dual-Channel mode - Supports non-ECC, un-buffered memory - Supports Intel® Extreme Memory Profile (XMP)

Graphics

• 1 x HDMI™ - Support HDMI™ 1.4, maximum resolution of 4K 30Hz* - 1 x VGA - Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz - *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

• 1 x PCI-E x16 slot - 1 x PCI-E x1 slot - PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

• 1 x M.2 - M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices - 4 x SATA 6G

LAN

• Realtek® 8111H Gigabit LAN

Audio

• Realtek® ALC897 Codec - 7.1-Channel High Definition Audio

USB Ports

• 4 x USB 2.0 (Rear) - 4 x USB 2.0 (Front) - 2 x USB 5Gbps Type A (Rear) - 2 x USB 5Gbps Type A (Front)

OS Support

• Windows® 11 64-bit, Windows® 10 64-bit

Internal I/O Ports

• 1 x Power Connector(ATX_PWR) - 1 x Power Connector(CPU_PWR) - 1 x CPU Fan - 2 x System Fan - 2 x Front Panel (JFP) - 1 x Chassis Intrusion (JCI) - 1 x Front Audio (JAUD) - 1 x Com Port (JCOM) - 1 x RGB LED connector(JRGB) - 1 x TPM pin header(Support TPM 2.0) - 4 x USB 2.0 ports - 2 x USB 5Gbps Type A ports

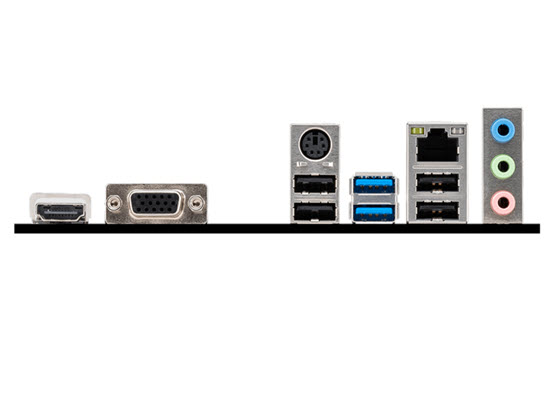

Back I/O Ports

• HDMI™ - VGA - Keyboard / Mouse - 2 x USB 3.2 Gen 1 5Gbps (Type-A) - LAN port - 3 x Audio Connectors - 4 x USB 2.0

LED FEATURE

• 4 x EZ Debug LED

Warranty

• 3 Years Limited
