The EVGA SuperNOVA G5 joins the elite ranks of the EVGA 80 PLUS Gold power supplies. As the successor to the award-winning G3 series, the G5 power supplies continue to push the envelope with the latest certifications and Intel power-on standards. Starting with 80 PLUS Gold certification, a fully-modular cable design, 100% Japanese capacitors, and an ultra-quiet 135mm Fluid Dynamic bearing fan with EVGA ECO mode, these power supplies are built for performance and silence.

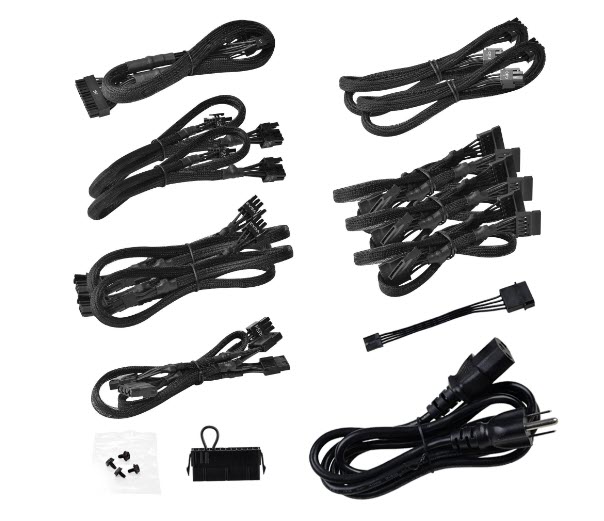

Cable Length

• ATX Cable: 1x 600mm (m)
• EPS Cable: 2x 700mm (m)
• PCIe Cable: 2x 700mm, 2x 700mm, 850mm (m)
• SATA Cable: 3x 550mm, 650mm, 750mm (m)
• Four-Pin Peripheral Cable: 1x 550mm, 650mm, 750mm, 850mm (m)
• Floppy Adapter: 1x 100mm
• AC Power: 1x 1500mm (m)
• Modular Cable Type: Full

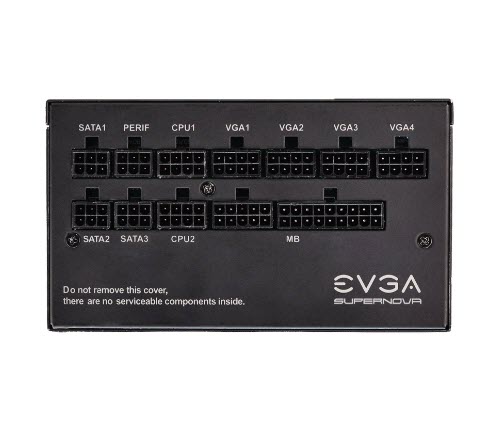

Connector Quantity

• 24 Pin ATX: 1x 24pin
• EPS (CPU): 2x 8pin (4+4)
• PCIe: 6x 8pin (6+2)
• SATA: 9x
• Four-Pin Peripheral: 4x
• Floppy: 1x

Input

• Input Voltage: 100 - 240 VAC
• AC Input: 12-5A
• Input Frequency Range: 50/60 Hz
• Efficiency: 91% (115VAC) / 92% (220VAC~240VAC) or Higher Typical

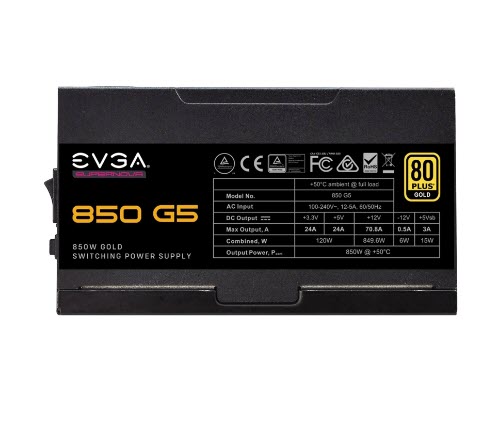

Output

• Rail: +3.3V, +5V, +12V, -12V, +5Vsb
• Max output: 24A, 24A, 70.8A, 0.5A, 3A, 849.2W, 120W, 849.2W, 6W, 15W
• Total: 850W @ +50C

Additional Details

• Japanese Capacitors: 100%
• ECO Mode: Yes
• MTBF: 100,000 Hours

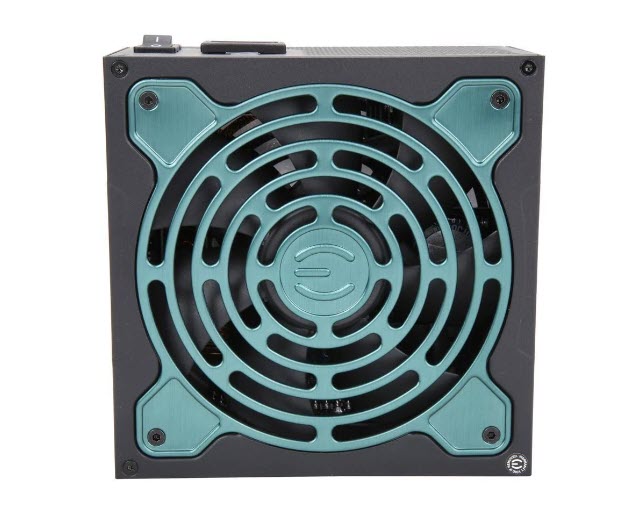

• Fan Size / Bearing: 135mm Fluid Dynamic Bearing
• Warranty: 10 Years Limited
