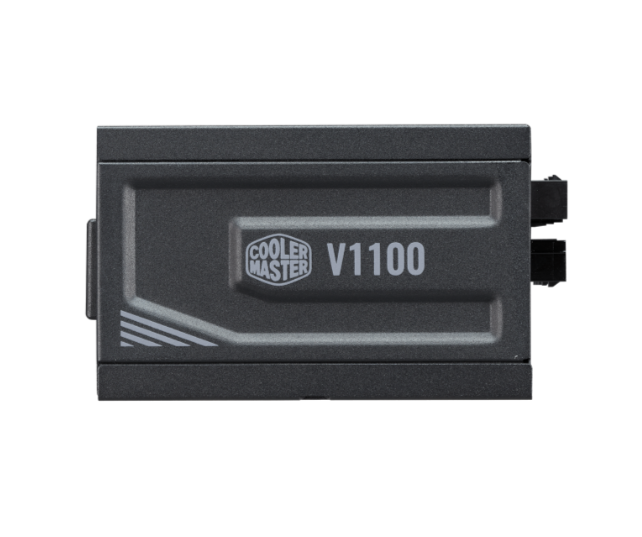

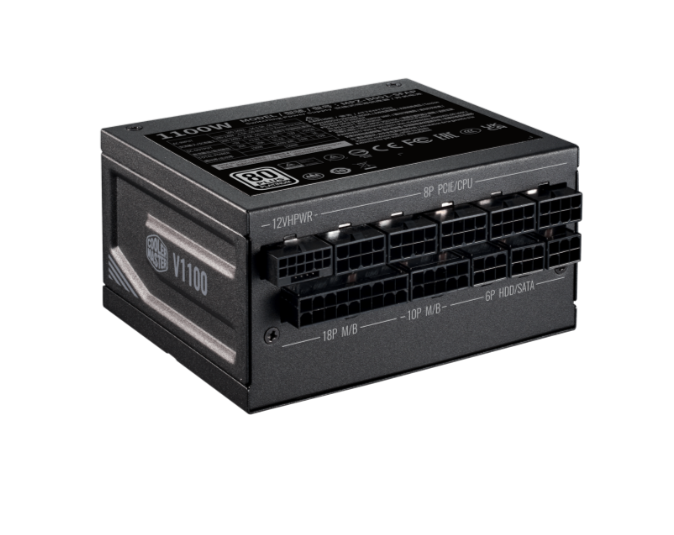

Cooler Master V1100 SFX
Designed to fully support ATX3.0 and provide backward compatibility, supporting both RTX 40 and 30 series graphics cards, and alongside with included bracket to support both ITX and ATX cases, the V SFX Platinum offers a PSU with the most complete compatibility.
Adopting with the components miniaturization technology by the improvement of materials engineering, manufacturing process and leading thermal technology, the V SFX Platinum has achieved one of the highest power density, 30% more than V SFX Gold 850W power supply, in the small form factor.
Crafted with flat copper wire on Choke of DC-DC, flat transformer piling and aluminum plate dissipation structure on full-bridge LLC, it can effectively achieve components miniaturization. Adopting with advanced manufacturing process, it simultaneously keeps miniaturized but solid.
Highlights
- Series V SFX Series
- ATX Version: ATX3.0, SFX 12V Ver. 3.42
- PFC: Active PFC
- Input Voltage: 100-240V
- Input Current: 14-6.5A
- Input Frequency: 50-60Hz
- Dimensions (L x W x H): 100 x 125 x 63.5 mm

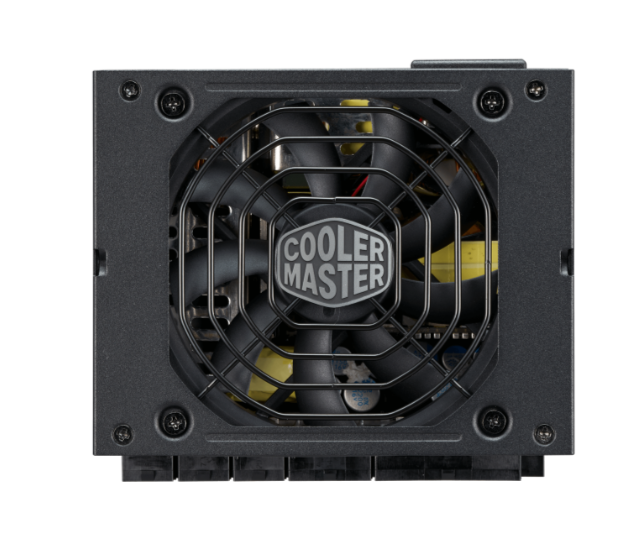

- Fan Size: 92mm
- Fan Bearing: FDB
- Efficiency: = 92% @ Typical Load
- 80 PLUS Rating: 80 PLUS Platinum
- ErP 2014 Lot 3: Yes
- Power Good Signal: 100 - 150 ms
- Hold Up Time: =16ms at 70% Load
- MTBF: >100,000 Hours
- Protections: OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection
- Regulatory: TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA

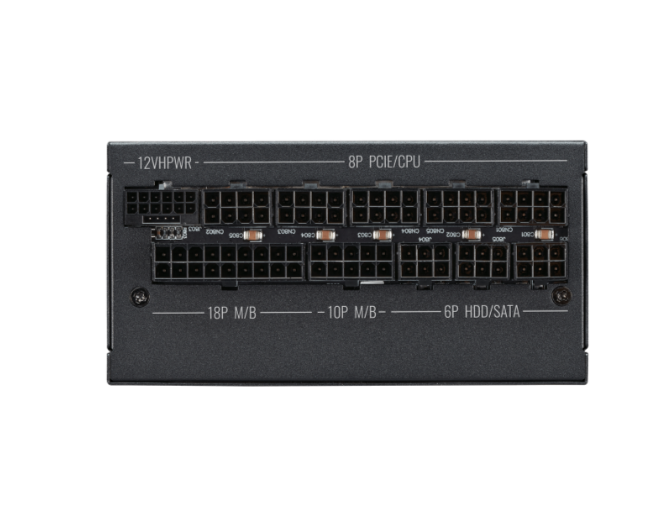

- ATX 24 Pin Connectors: x 1
- EPS 4+4 Pin Connectors: x 1
- EPS 8 Pin Connector: x 1
- SATA Connectors: x 8
- Peripheral 4 Pin Connectors: 4
- PCI-e 6+2 Pin Connectors: x 3
- 12VHPWR Connector: x 1
- Modular: Full Modular
- Warranty: 10 Years
