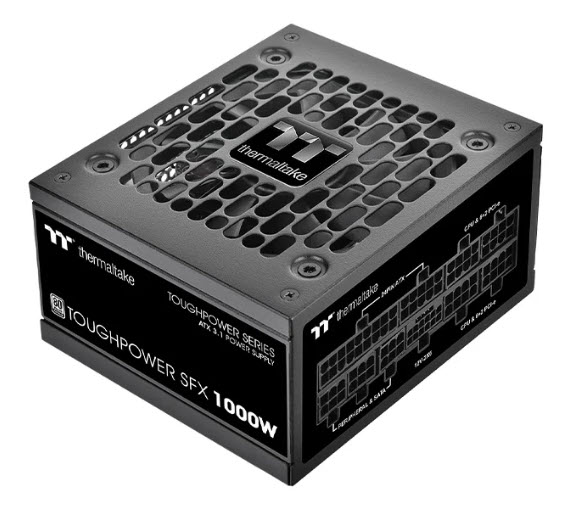

Toughpower SFX Platinum 1000W

The Toughpower SFX Platinum series is built to support next-gen hardware, meeting the latest Intel SFX 12V 4.1 and ATX 12V 3.1 standards. With its native PCIe 12V- 2x6 (12+4pin) modular interface, it efficiently powers PCIe 12+4pin graphics cards. This series not only achieves 80 PLUS Platinum efficiency but also guarantees stability, durability, and reliability.

The dimensions of the Toughpower SFX Platinum measure 125mm(W) x 63.5mm(H) x 103.8mm(D). It comes with an SFX to ATX adapter bracket as an accessory which gives users more options when choosing the ideal case for the build.

Toughpower SFX Platinum series is fully compatible with ATX 3.1 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards. Toughpower SFX Platinum series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower SFX Platinum 1000W can deliver up to 600W for PCIe 12+4pin graphics cards.

Ready to supply graphics cards according to their different ways of connections, the Toughpower SFX Platinum series is designed to support NVIDIA and AMD graphics cards, it supports 8-pin slots for AMD graphics cards & some RTX 40 series graphics cards, it also comes with 1 x 12V-2x6 connector for RTX 40 series cards with a PCIe 12+4pin connector.

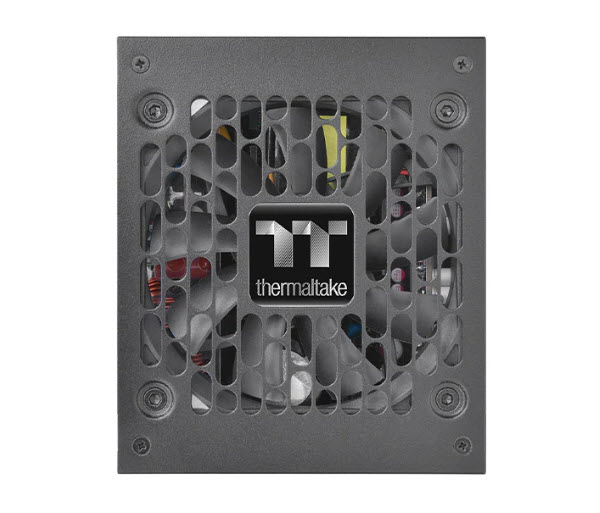

Equipped with a 90mm fluid bearing fan for superior airflow. Plus, the built-in Smart Zero Fan feature keeps it silent until the load hits 30%, reducing unwanted noise.

80 PLUS Platinum certification means the Toughpower SFX Platinum series converts power efficiently, saves energy through its high efficiency up to 92%, resulting in lower power loss and heat buildup inside the power supply.

During a power interruption, your computer might shut down or reboot. We make sure that the SFX Platinum series will deliver at least 17ms at 80% workload, without system reboot or resetting.

100% high quality Japanese 105°C/221°F electrolytic capacitors provides great durability as well as offering the highest stability, while remaining reliable.

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile cables make cable management easier, reduces clutter and increases airflow inside the chassis.

Highlights

• MODEL: SFX-1000AH8FLP
• WATTS: 1000 W
• DIMENSIONS: 125mm(W)x63.5mm(H)x103.8mm(D)
• PFC (POWER FACTOR CORRECTION): Active PFC
• POWER GOOD SIGNAL: 100-150 msec
• HOLD UP TIME: > 17msec at 80% load
• INPUT CURRENT: 15A - 8A
• INPUT FREQUENCY RANGE: 50Hz/60Hz
• INPUT VOLTAGE: 100-240V~
• COOLING SYSTEM: 9cm FDB Fan
• EFFICIENCY: Meet 80 PLUS® Platinum at 115Vac input.
• MTBF: 100
• SAFETY APPROVAL: CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/S-MARK/EAC/RCM
• Protections: OCP(Over Current Protection), OVP(Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

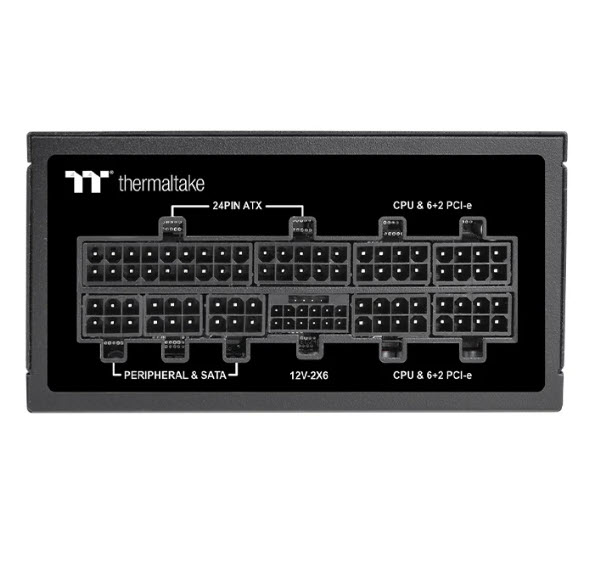

• Connectors: 1 x Main Power(24Pin), 2 x ATX 12V(4+4Pin), 4 x PCIe(6+2Pin), 1 xx PCIe(12+4Pin)600W, 8 x SATA(5Pin)4 x Peripheral(4Pin), 1 x FDD
• Cables: 1 x Main Power, 2 x ATA 12V, 2 x PCIe(6+2Pin), 1 x PCIe(12+4Pin), 2 xSATA, 1 x Peripheral/FDD
• Cables: Fully Modular Low Profile Cables
• Warranty: 7 Years
