TOUGHPOWER GT 750W ATX 3.1

The fully modular Toughpower GT series is designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. Backed by an extensive 5-year warranty, the Toughpower GT series meets the needs of value-oriented users seeking a new power supply with reliable performance.

Toughpower GT series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.

PCIe Gen 5.1 Ready - Toughpower GT series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs. The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower GT 750W can deliver up to 300W for PCIe 12+4pin graphics cards.

Featuring an 120mm Hydraulic Bearing Fan to keep friction at really low level. Designed with our Smart Zero Fan to adjust the fan speed and minimizes undesired noise.

To protect the hardware, Toughpower GT series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

Highlights

• Watts: 750 W
• Max Output Capacity: 750 W
• Color: Black
• Dimensions: 150mm(W)x86mm(H)x140mm(D)
• PFC (Power Factor Correction): Active PFC
• Power Good Signal: 100-250 msec
• Hold Up Time: > 17msec at 80% load
• Input Current: 10A Max.
• Input Frequency Range: 50Hz-60Hz
• Input Voltage: 100-240V~
• Cooling System: 12cm Hydraulic bearing fan
• Efficiency: Meet 80 PLUS® Gold at 115Vac input.

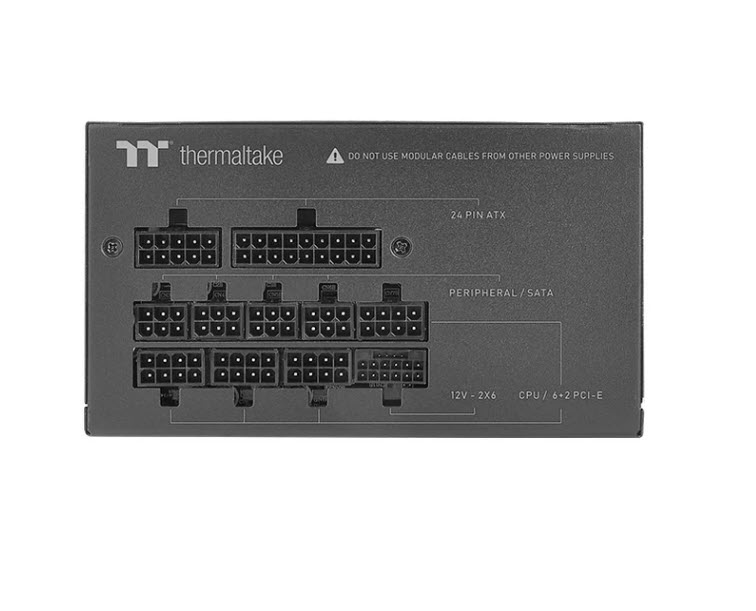

• Connectors: 1 x Main Power(24Pin), 2 x ATX 12V(4+4Pin), 4 x PCIe(6+2Pin), 1 x PCIe(12+4Pin) 300W, 6 x SATA(5Pin), 4 x Peripheral(4Pin)
• Safety Approval: CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK
• Protection: OVP/UVP/OCP/OPP/OTP/SCP
• Warranty: 5 Years
