MAG A750GL PCIE5 II 750W

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability

It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

With native PCIe CEM 5.1 16-pin connector this power supply is ready for NVIDIA® GeForce RTX™ 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe CEM 5.1 graphics cards.

DUAL-COLOR 16-PIN CABLE - The PCIe CEM 5.1 16-pin cable's connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly. Besides, the Dual-color 16-pin cable also won Wccftech awards in the COMPUTEX 2023.

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

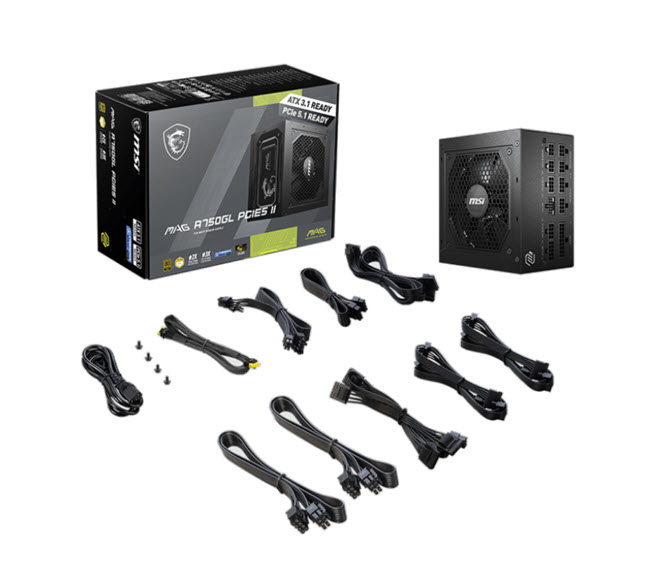

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

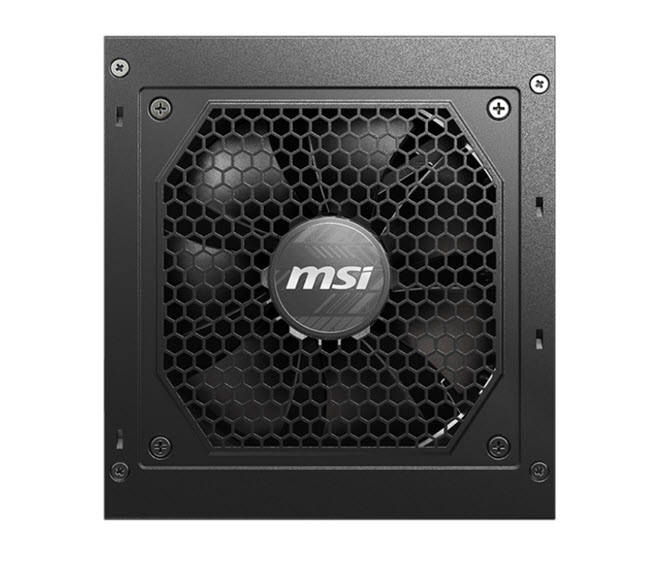

The power supply’s fan comes with a fluid dynamic bearing that perfectly balances cooling performance and noise level.

A half-bridge LLC with DC/DC converter combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.

Highlights

• Dimensions (DxWxH) - 140 x 150 x 86 mm
• Efficiency Rating - 80 PLUS Gold (up to 90%)
• Modular - Yes (full modular)
• Fan Size - 120 mm
• Fan Bearing - Fluid Dynamic Bearing
• PFC Type - Active PFC
• Input Voltage Range - 100~240 VAC
• Power Watt - 750W
• Power Excursion - 1500W (*up to 200% of the PSU's rated power for 100µs)
• Input Frequency Range - 47-63Hz
• Protection - OCP / OVP / OPP / OTP / SCP / UVP

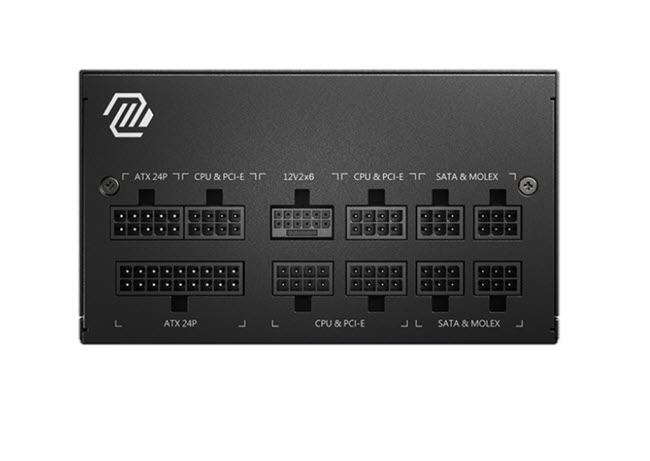

• ATX (24 pin) - 1
• EPS (4+4 pin) - 2
• PCI-E 5.1 (16 pin) - 1 (450W)
• PCI-E (6+2 pin) - 3
• SATA (15 pin) - 8
• PERIPHERAL (4 pin) - 4
• FDD (4 pin) - 1
• Warranty: 10 Years Limited
