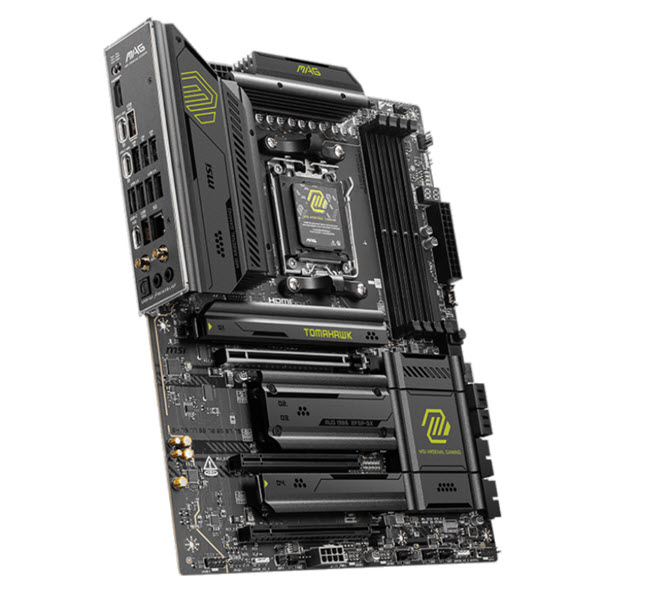

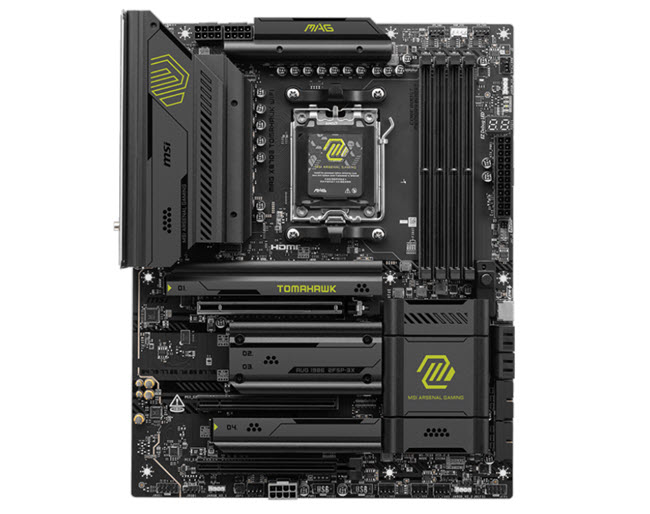

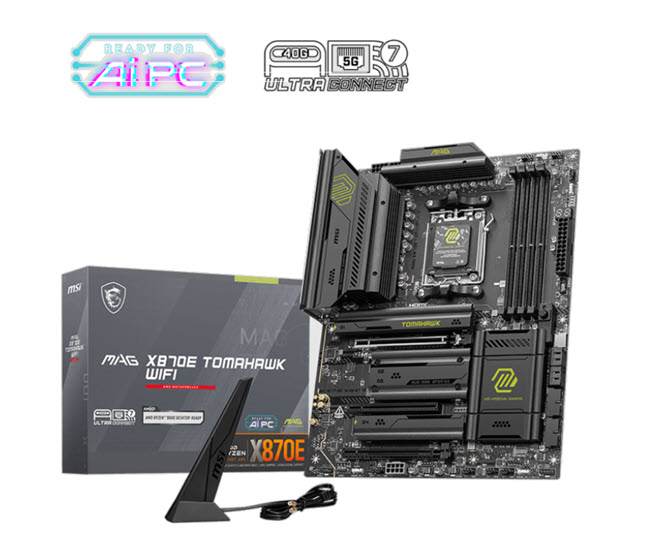

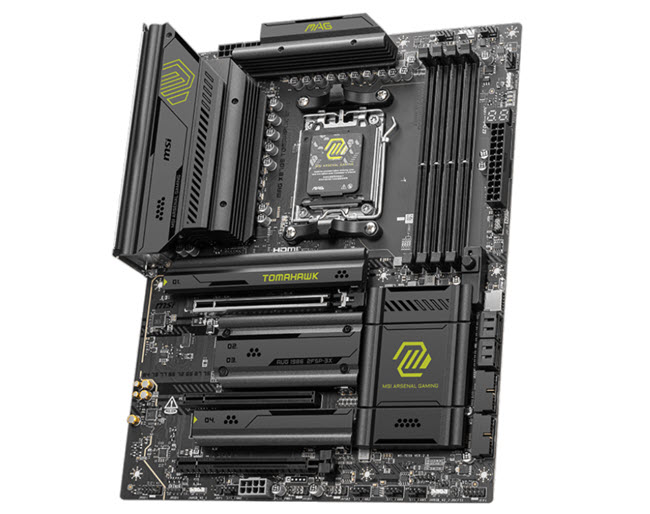

MAG X870E TOMAHAWK WIFI
MAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
AI Engine - Provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
Al LAN MANAGER - optimizes networking performance and minimizes latency, providing a seamless online experience.
Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
AI Boost - Is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
MSI's exclusive EZ M.2 Shield Frozr II and EZ M.2 CLIP II make M.2 installation seamless. Insert the SSD card into the slot and press it down to lock it in place with the clip. As fasten the SSD, flick the clip outwards and then the SSD is removed. The process is smooth, and you don't need to use your tools like before. One finger can give you perfect DIY experience.
14+2+1 DRPS POWER DESIGN - Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 80A Smart Power Stage, MAG X870E TOMAHAWK WIFI is ready for the challenge of high-end processors.
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
Form Factor
CPU
- Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors - Socket AM5
Chipset
Memory
- 4 x DDR5 UDIMM, Maximum Memory Capacity 256 GB -
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s -
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s -
Supports AMD POR Speed and JEDEC Speed -
Supports Memory Overclocking and AMD EXPO™ -
Supports Dual-Channel mode -
Supports Non-ECC, Un-buffered memory -
Supports CUDIMM, Clock Driver bypass mode only* -
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
Graphics
- 1 x HDMI™ -
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* -
2 x Type-C DisplayPort -
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics
**Graphics specifications may vary depending on the CPU installed
Expansion Slots
- 3 x PCI-E x16 slot -
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) -
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) -
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) -
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Storage
- 4 x M.2 -
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices -
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices -
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices -
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices -
4 x SATA 6G -
M.2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) -
M.2_2 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors
LAN
Wireless & Bluetooth
- Wi-Fi 7 -
The Wireless module is pre-installed in the M.2 (Key-E) slot -
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps -
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be -
Supports Bluetooth® 5.4, MLO, 4KQAM
Audio
- Realtek® ALC4080 Codec -
7.1-Channel USB High Performance Audio -
Supports up to 32-bit/384kHz playback on front panel -
Supports S/PDIF output
USB Ports
- 4 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
3 x USB 5Gbps Type A (Rear)
4 x USB 5Gbps Type A (Front)
2 x USB 10Gbps Type A (Rear)
1 x USB 10Gbps Type C (Rear)
1 x USB 20Gbps Type C (Front)
2 x USB 40Gbps Type C (Rear)
OS Support
Internal I/O Ports
- 1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)
1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
6 x System Fan
1 x EZ Conn-header (JAF_2)
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 5Gbps Type A ports
1 x USB 20Gbps Type C ports

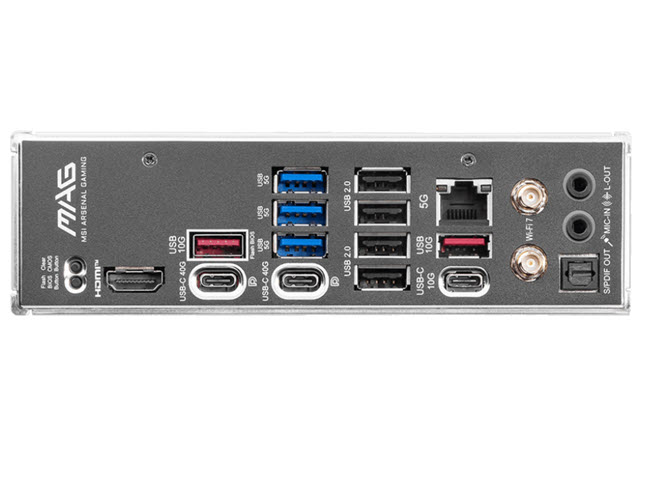

Back I/O Ports
- Clear CMOS Button - 2 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 5G LAN, Wi-Fi / Bluetooth, 2 x Audio connectors, Flash BIOS Button, HDMI™, 2 x USB 40Gbps Type-C, 1 USB 10Gbps Type-C
LED FEATURE
- 4 x EZ Debug LED - 1 x EZ Memory Detection LED
Warranty
