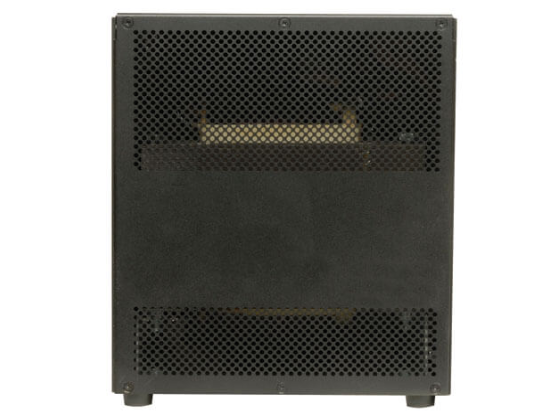

6000W APS X Series 48VDC 208/230V Inverter/Charger with Pure Sine-Wave Output, AVR, Hardwired

The APSX6048VRNET 6000W APS X Series 48V DC 208/230V AC Inverter/Charger is a reliable power source for a wide variety of power tools, computers, audio/video components and other sensitive electronics at mobile, emergency and remote sites. With no fumes, fuel or excess noise, it’s an excellent alternative to generator power. The DC-to-AC pure sine-wave inverter delivers clean power to sensitive electronics. Its automatic line-to-battery transfer switch and integrated charging system allow the unit to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 6000W of continuous power, 9000W up to one minute or 12000W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage. Designed for easy installation in RVs, commercial and fleet vehicles, emergency vehicles and construction equipment, the APSX6048VRNET converts stored power from a 48V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime in heavy-load conditions. When hardwired to an external 208V or 230V AC source, the unit keeps the user-supplied battery charged via a three-stage 23/90A selectable charging system while simultaneously delivering conditioned, pure sine-wave AC power to connected equipment. When used as a UPS, the APSX6048VRNET responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived, pure sine-wave AC power. The optional SNMPWEBSOLOHV accessory card enables remote monitoring of the unit via SNMP, SSH, Telnet, and Internet.

OUTPUT

• Nominal Output Voltage(s) Supported: 208V; 230V
• Frequency Compatibility: 50 / 60 Hz
• Output Receptacles: Hardwire
• Output (Watts): 6000
• Peak Output Capacity (Watts): 12000
• Output Voltage Regulation LINE POWER (AC): Maintains 208/230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains sine wave output voltage of 208/230 VAC (+/-5%).
• Output Frequency Regulation: 50/60 Hz (+/- 0.3 Hz)

Input

• Nominal Input Voltage(s) Supported: 208V AC; 230V AC
• Recommended Electrical Service: DC INPUT: Requires 48VDC input source capable of delivering 138A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 250A minimum battery system fusing is recommended.
• Input Connection Type: DC INPUT: Set of DC bolt-down terminals. AC INPUT: Hardwire via built in terminal strip with cover plate
• Voltage Compatibility (VAC): 208; 230
• Voltage Compatibility (VDC): 48

Battery

• Expandable Battery Runtime: Runtime is expandable with any number of user supplied wet or gel type batteries
• DC System Voltage (VDC): 48
• Battery Pack Accessory (Optional): 98-121 sealed lead acid battery (optional)
• Battery Charge: Selectable 23 / 90 amp
• Expandable Runtime Yes:

VOLTAGE REGULATION

• Voltage Regulation Description: Includes automatic voltage regulation to correct brownouts and over-voltages back to usable levels
• Overvoltage Correction: Input voltages above 252V are automatically reduced by 9% (230V) / Input voltages above 235/245V are automatically reduced by 10% (208V)
• Brownout Correction: Input voltages from 208V -189V are automatically boosted by 11% (230V) / Input voltages from 188V-166V are automatically boosted 12% (208V)
• Severe Brownout Correction: Input voltages from 188V - 171V are automatically boosted by 26% (230V only)

USER INTERFACE, ALERTS & CONTROLS

• Front Panel LEDs: Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported).
• Switches: 3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads. Configuration dipswitches set unit voltage, frequency, transfer-time, battery type, and charger-related settings.

LINE / BATTERY TRANSFER

• Transfer Time (Line Power to Battery Mode): Dip-switch selectable 20 millisecond (full cycle) / 10 millisecond (half-cycle) transfer times which are compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications
• Low Voltage Transfer to Battery Power: In 230V AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 170V AC (user adjustable to 180V). In 208V AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 165V (user adjustable to 175V)-
• High Voltage Transfer to Battery Power: In 230V AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 260V (user adjustable to 270 - see manual), In 208V AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 235V

SPECIAL FEATURES

• Cooling Method: Dual multi-speed fans
• Form Factors Supported: Mounting slots enable permanent placement of inverter on any horizontal surface.
• Communications Interface: Contact closure; DB9 Serial
• SNMP Compatibility: Optional SNMPWEBSOLOHV accessory card enables remote monitoring of the unit via SNMP, SSH, telnet or Internet.
• TVSS Grounding: Main grounding lug connects inverter/charger to earth or vehicle chassis ground
• Generator Start Compatibility: RJ-11 port connects to a generator with user-supplied cable to automatically cycle generator when battery level is low
• Battery Temperature Sensor: RJ-11 port connects to optional battery temperature sensor cable to regulate the charging system based on battery temperature
• Certifications: Tested to EN62040-1 (CE), EN62040-2 (EMC), RoHS compliant
• Remote Control Capability: Yes
• Warranty: 2 years limited
